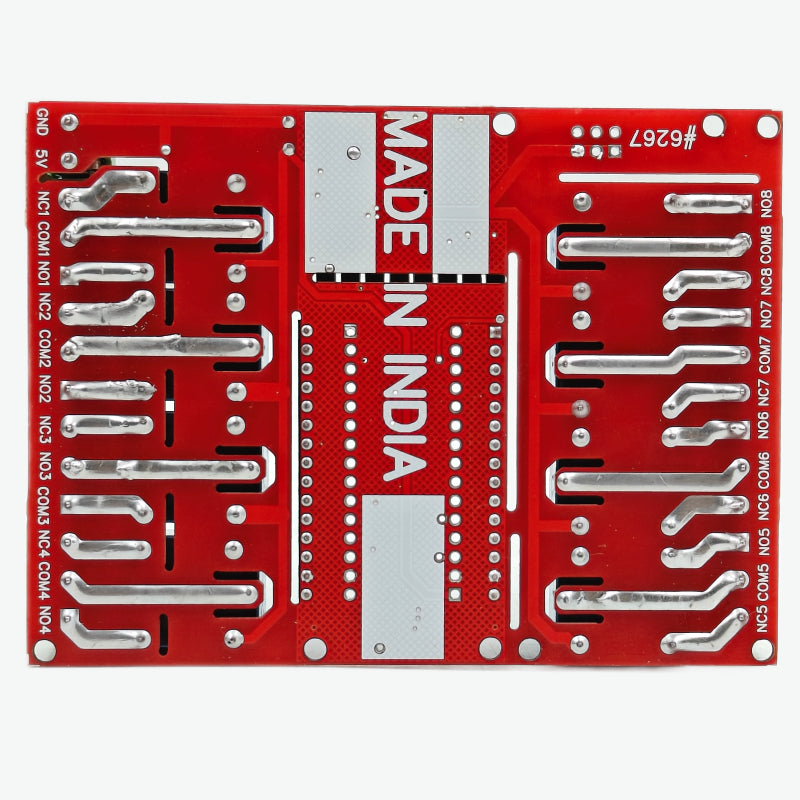

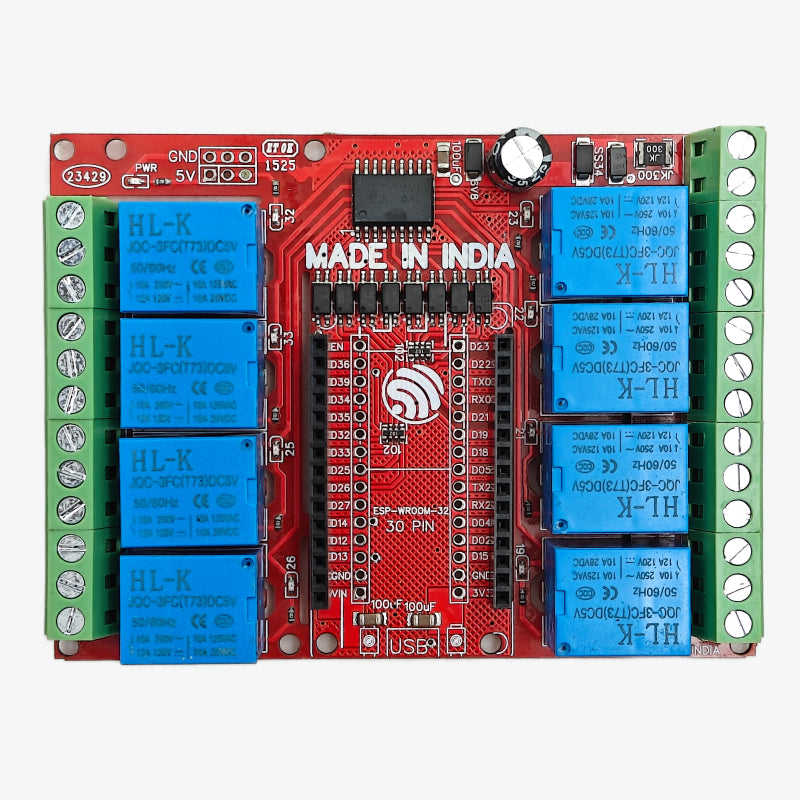

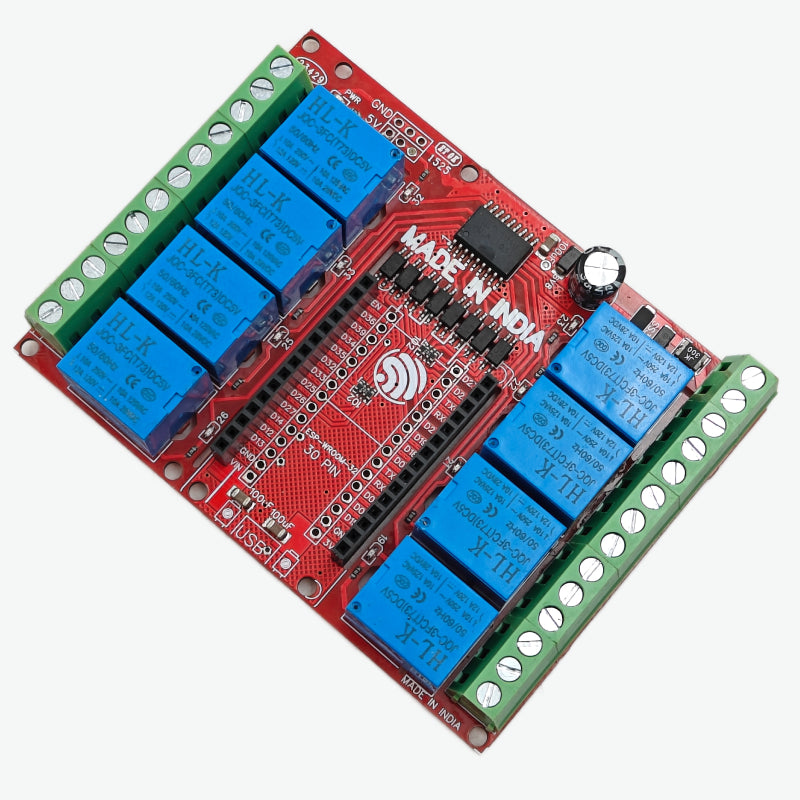

8 Channel Relay Board For ESP32 30 Pin DEVKIT V1 5V

The 8 Channel Relay Board for ESP32 30-Pin DevKit V1 (5V) is a ready-to-use control module designed for reliable switching of multiple AC or DC loads using an ESP32 development board. Featuring eight independent relay channels, this board allows precise control of high-power devices, home automation systems, and DIY electronics projects directly from ESP32 GPIO pins. Operating on a 5V DC supply, the board is compatible with 30-pin ESP32 DevKit V1 modules and provides convenient pin headers for easy interfacing. Each relay channel can be triggered individually, offering flexibility and safe load management.

Features:

1. 8-channel relay output for independent load control
2. Compatible with 30-pin ESP32 DevKit V1
3. 5V DC operating voltage
4. Supports AC and DC load switching (relay rating dependent)
5. Stable and reliable relay operation
6. Easy GPIO-based control via ESP32
7. Compact PCB design for easy installation
8. Ideal for home automation, industrial control, and DIY electronics projects

Specifications:

• Module Type: 8-Channel Relay Board for ESP32
• Number of Channels: 8
• Input Voltage: 5V DC
• Compatible Controller: 30-Pin ESP32 DevKit V1
• Relay Type: Electromechanical Relay (onboard)
• Relay Control: ESP32 GPIO
• Load Type: AC / DC
• PCB Material: FR4
• Operating Temperature: –10°C to +60°C
• Relay AC Load: 10A @ 125V AC to 10A @ 250V AC

• Relay DC Load: 10A @ 28V DC to 12A @ 120V DC

Package Includes:

1 × 8 Channel Relay Board for ESP32 30-Pin DevKit V1 (5V)
