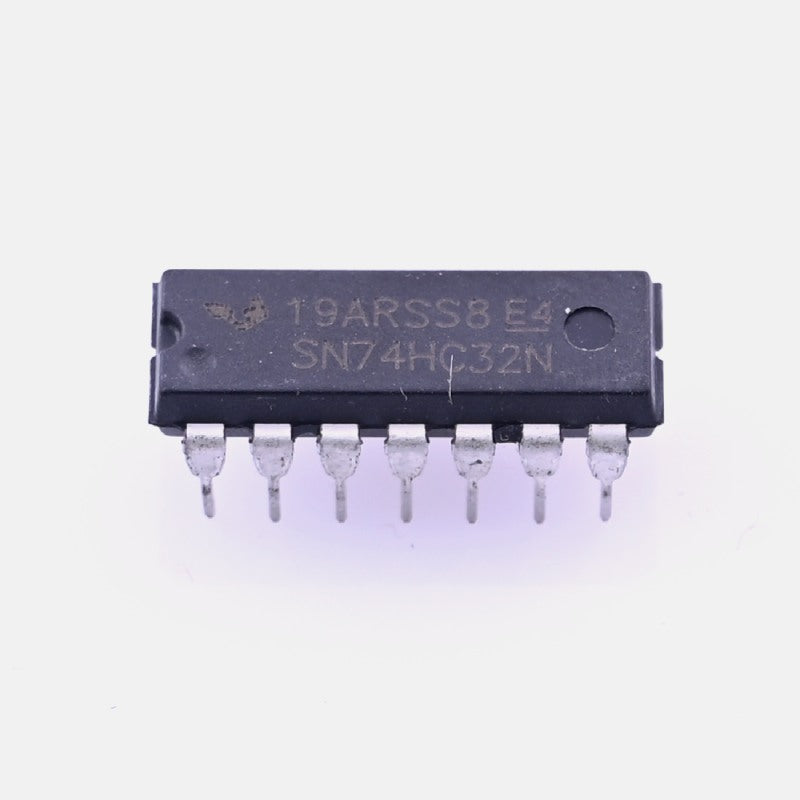

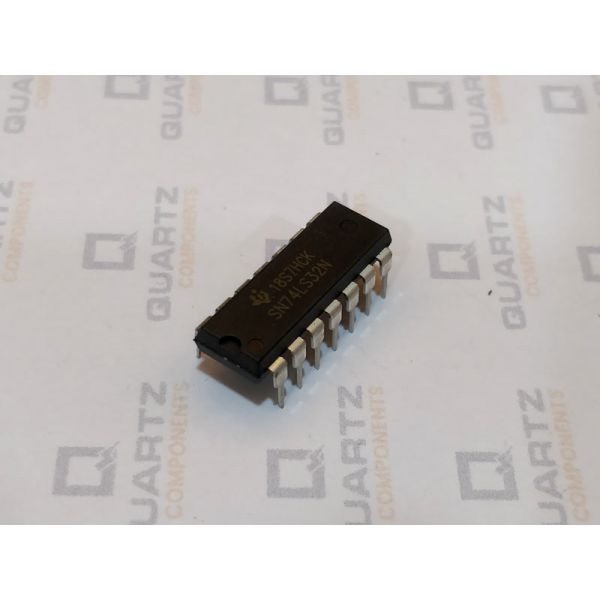

74LS32 - Quad 2-input OR Gate IC 74LS32 - Quad 2-input OR Gate IC

QC0126

105 In stock

Rs. 18.00
-
+
Rs. 18.00
(inc. GST)
[Delivery: 2 to 5 days]

The 74LS32 is a Dual Input OR Gate with Quad package. It contains four independent gates each of which performs the logic OR function. Each gate has two inputs that’s why it is named Quad 2-Input OR Gate. It has 12 input output pins for a total of four OR gates. To use the 74LS32 Logic gate IC, just power it using the Vcc and GND pins. The typical operating voltage of the IC is +5V, but it can also be operated in +7V. The output voltage of the IC on the pin Y will be equal to the operating voltage of the IC. It can be used in forming basic logic gate circuits, encoders and decoders, multiplexer and demultiplexer and oscillator circuits.



Specifications

  • Dual Input OR Gate – Quad Package
  • Supply Voltage: 5 to 7V
  • Input Voltage: 5 to 7V
  • Operating temperature range = -55°C to 125°C
  • Available in 14-pin SOIC package



Product Description

74LS32



Additional Resources

Datasheet

OR gate Circuit

Package Contents

1× 74LS32 - Quad 2-input OR Gate IC

The 74LS32 is a Dual Input OR Gate with Quad package. It contains four independent gates each of which performs the logic OR function. Each gate has two inputs that’s why it is named Quad 2-Input OR Gate. It has 12 input output pins for a total of four OR gates. To use the 74LS32 Logic gate IC, just power it using the Vcc and GND pins. The typical operating voltage of the IC is +5V, but it can also be operated in +7V. The output voltage of the IC on the pin Y will be equal to the operating voltage of the IC. It can be used in forming basic logic gate circuits, encoders and decoders, multiplexer and demultiplexer and oscillator circuits.



Specifications

  • Dual Input OR Gate – Quad Package
  • Supply Voltage: 5 to 7V
  • Input Voltage: 5 to 7V
  • Operating temperature range = -55°C to 125°C
  • Available in 14-pin SOIC package



Product Description

74LS32



Additional Resources

Datasheet

OR gate Circuit

Package Contents

1× 74LS32 - Quad 2-input OR Gate IC
