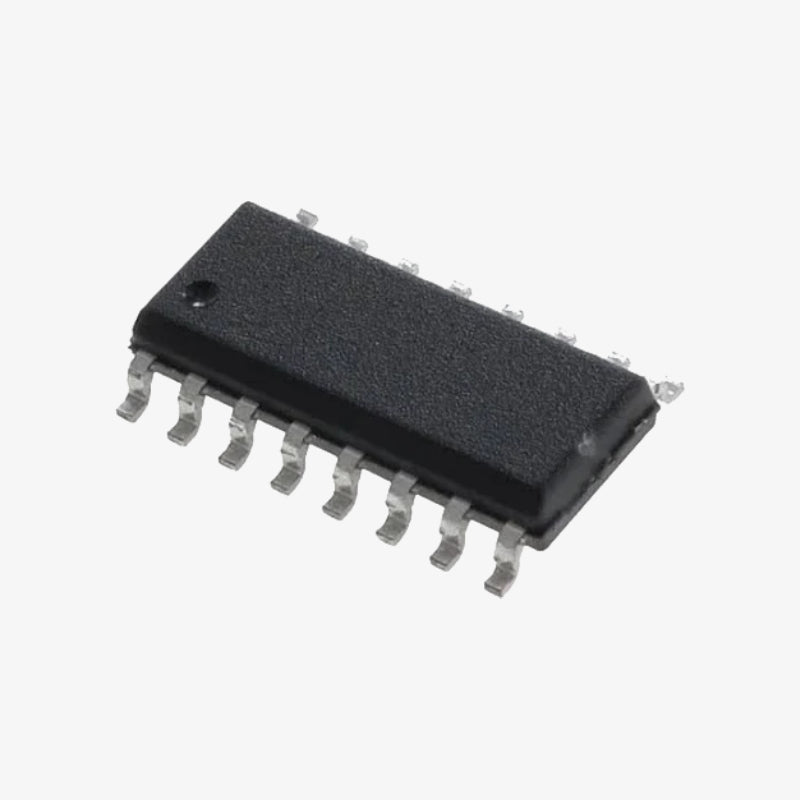

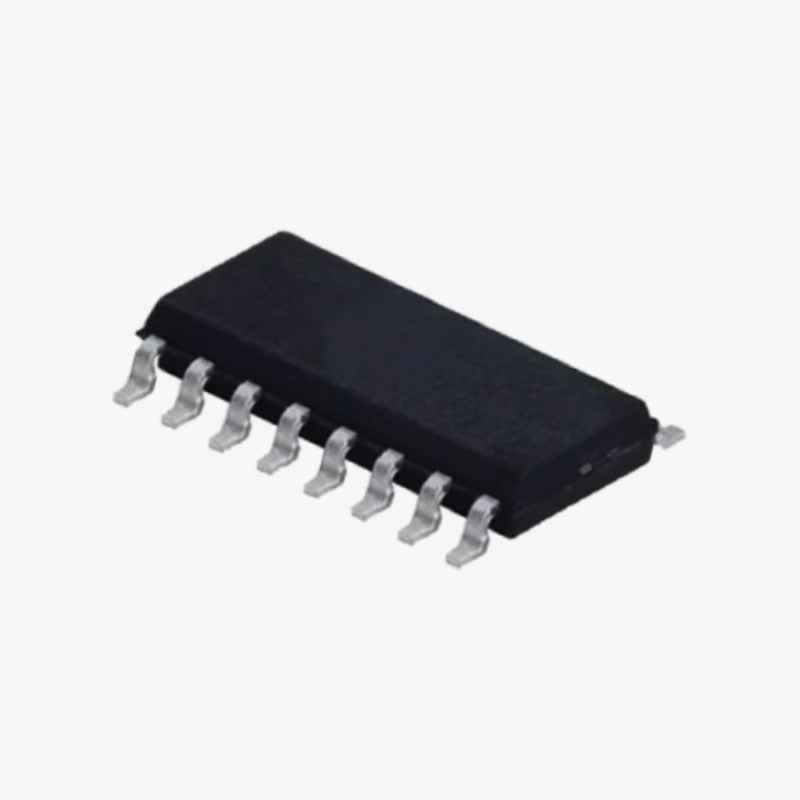

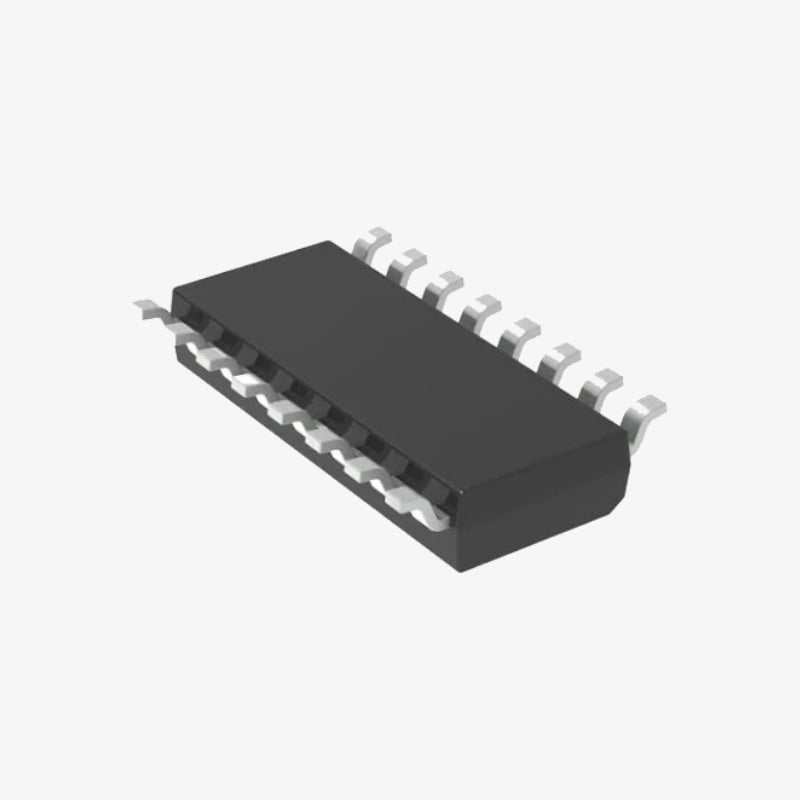

74HC4053 Triple 2-Channel Analog Multiplexer/Demultiplexer IC - SOIC-16 SMD Package

The 74HC4053 is a high-speed CMOS triple 2-channel analog multiplexer/demultiplexer IC. It features three independent analog switches, each with two input/output terminals and a common select terminal. The IC is designed for analog and digital multiplexing applications such as signal routing, data acquisition systems, and switching audio/video signals. Its low ON resistance and high-speed switching make it highly suitable for modern electronic systems.

Packaged in a compact SOIC-16 SMD form factor, the 74HC4053 is ideal for surface-mount designs requiring space efficiency and reliable signal routing.

Features of 74HC4053 Multiplexer IC:

1. Triple 2-channel analog multiplexer/demultiplexer
2. High-speed CMOS technology for low power consumption
3. Wide supply voltage range from 2V to 10V
4. Low ON resistance for minimal signal loss
5. Separate enable input for each switch
6. Fast switching speed with low crosstalk
7. Suitable for analog and digital signal routing
8. Compact SOIC-16 SMD package for efficient PCB layout

Specifications of 74HC4053 Multiplexer IC:

• Model: 74HC4053
• Supply Voltage Range: 2V – 10V
• Logic Voltage Level: CMOS Compatible
• Number of Channels: 3 (each with 2-way switching)
• ON Resistance (Ron): ~70Ω (typical at Vcc = 4.5V)
• Propagation Delay: ~13ns (typical)
• Package Type: SOIC-16 SMD
• Operating Temperature: -40°C to +85°C

Package Includes:

1 × 74HC4053 Triple 2-Channel Analog Multiplexer/Demultiplexer IC – SOIC-16 SMD Package
