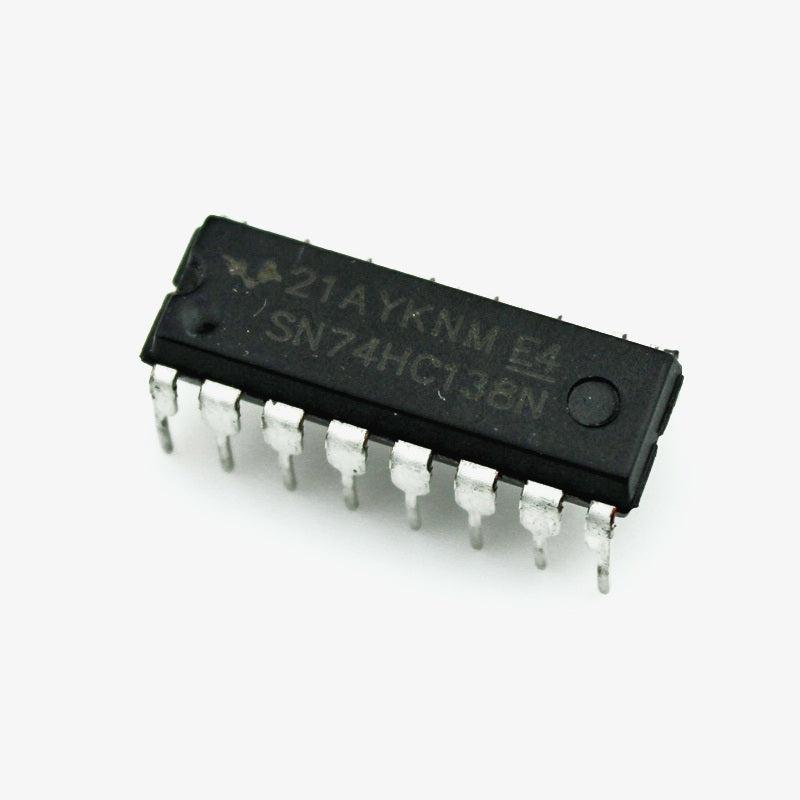

74HC138 IC
74HC138 Decoder IC
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

74HC138 IC - 3:8 Line Decoder/Demultiplexer IC

QC0379
26 In stock
Rs. 14.00 (Exc. GST)
Rs. 14.00

The 74HC138 is a 3:8 Decoder IC which is, it can control 8 output pins (Y0 to Y7) by just using three address pins (A0 to A2) as inputs. The IC also has 3 Enable pins which can be used to cascade more than 1 IC to control more output pins. The IC is used in application where there is a constraint for GPIO pin on the Microcontroller and multiple peripheral control is required. The specification of the IC is give below:

74HC138 IC Specifications and Features

  • Operating Voltage: 2V to 6V
  • Input rise and fall time: 500nS @ 4.5Vcc
  • Minimum high level input voltage: 3.15V @ 4.5Vcc
  • Maximum low level input voltage: 1.35V @ 4.5Vcc
  • Sinks or sources 8 mA at VCC = 4.5V
  • CMOS low power consumption
  • Schmitt Trigger Action at All Inputs
