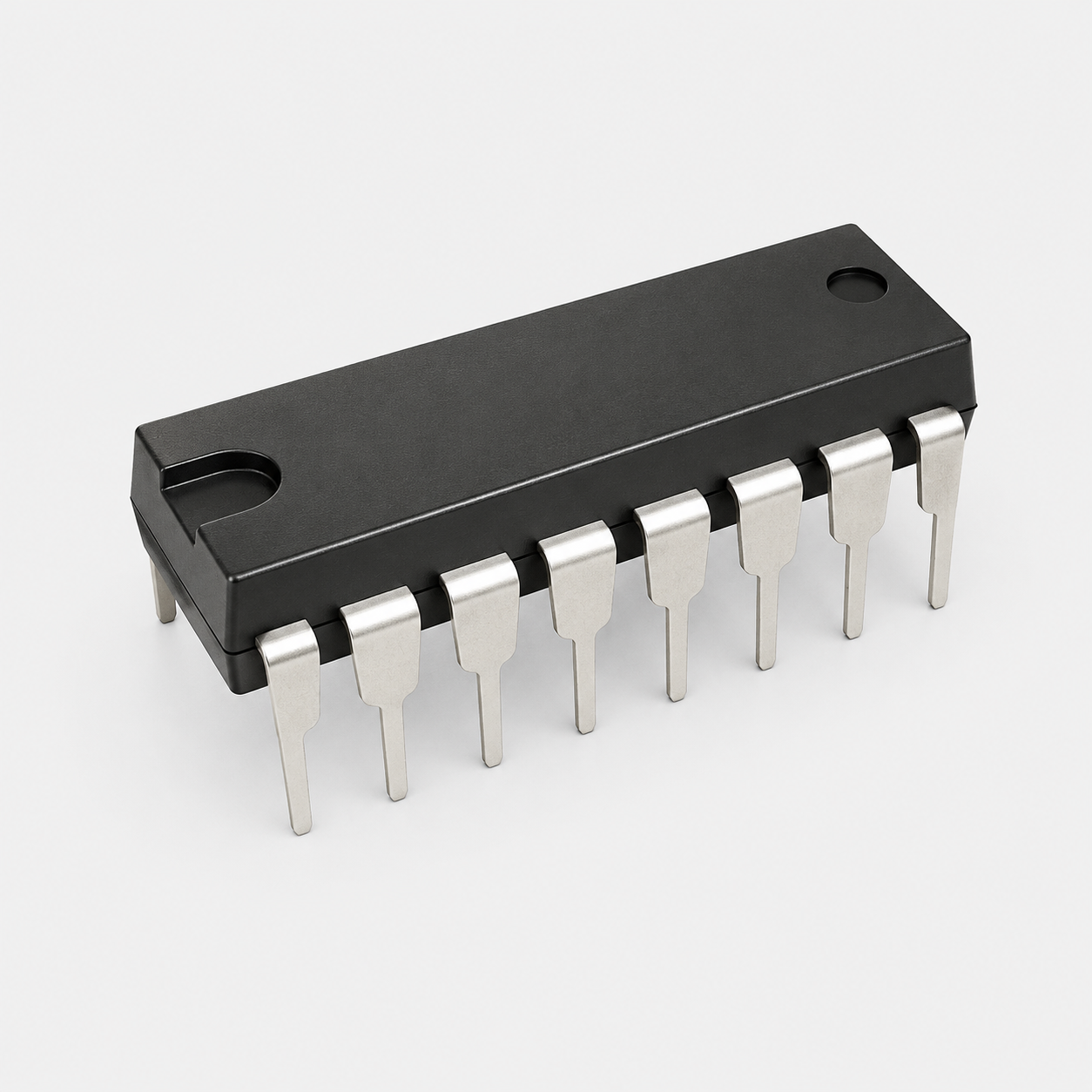

74HC193 Binary Up/Down Counter with Clear IC - DIP-16 Package is a 4-bit synchronous binary up/down counter IC designed for digital counting applications. It provides separate clock inputs for counting up and down, allowing the count direction to be controlled independently. The IC includes asynchronous clear and parallel data inputs for presetting the counter, making it suitable for frequency division, digital counters, sequencing circuits, control systems, and other digital logic applications.

Features:

  1. 4-bit synchronous binary up/down counter.
  2. Separate clock inputs for up-counting and down-counting.
  3. Asynchronous clear input.
  4. Parallel data inputs for presetting the counter.
  5. Four parallel counter outputs.
  6. Cascadable for higher-bit counting applications.
  7. High-speed CMOS logic operation.
  8. Wide supply voltage range.
  9. Through-hole DIP-16 package for breadboard and PCB mounting.

Specifications:

Parameter Value
Product Type 4-Bit Binary Up/Down Counter
Model 74HC193
Logic Function Synchronous Up/Down Counter
Counter Resolution 4 Bit
Counting Range 0 to 15
Up Clock Yes
Down Clock Yes
Clear Input Asynchronous
Parallel Load Yes
Logic Family 74HC
Supply Voltage 2 V to 6 V
Output Type Push-Pull
Operating Temperature -40°C to +125°C
Package DIP-16 / PDIP-16
Mounting Type Through Hole


Pin Configuration:

Pin No. Pin Name Description
1 B Parallel Data Input B
2 QB Counter Output B
3 QA Counter Output A
4 DOWN Down-Count Clock Input
5 UP Up-Count Clock Input
6 QC Counter Output C
7 QD Counter Output D
8 GND Ground
9 LOAD Parallel Load Input, Active LOW
10 A Parallel Data Input A
11 B Parallel Data Input B
12 C Parallel Data Input C
13 D Parallel Data Input D
14 CLEAR Asynchronous Clear Input
15 BO Borrow Output
16 VCC Positive Supply Voltage
