7-Segment Display (Common Cathode)
Sold Out

7-Segment Display (Common Cathode) - Red 7-Segment Display (Common Cathode) - Red

QC0380

Out of stock

Rs. 10.00

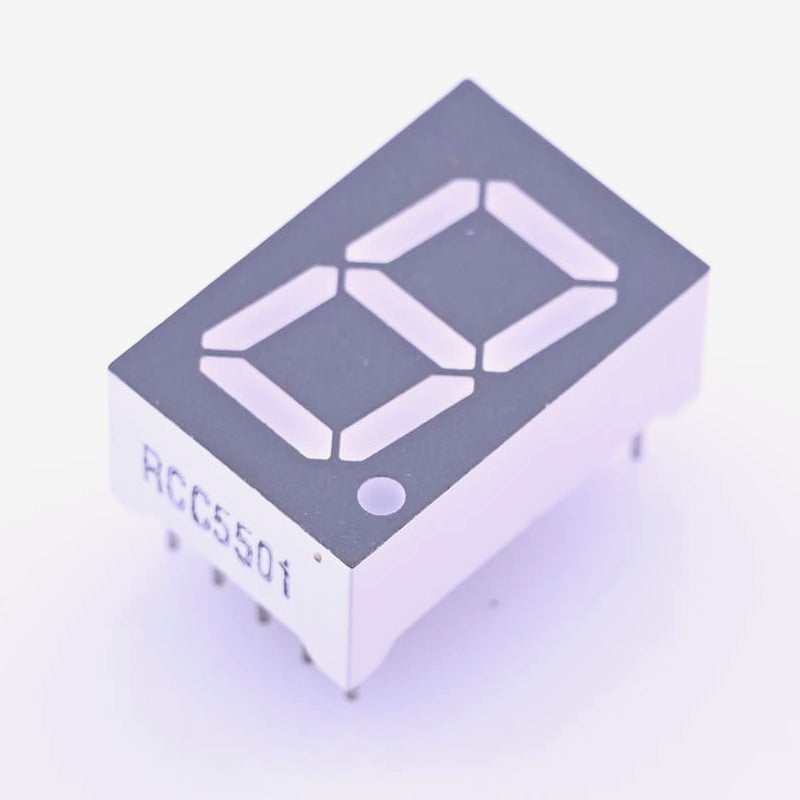

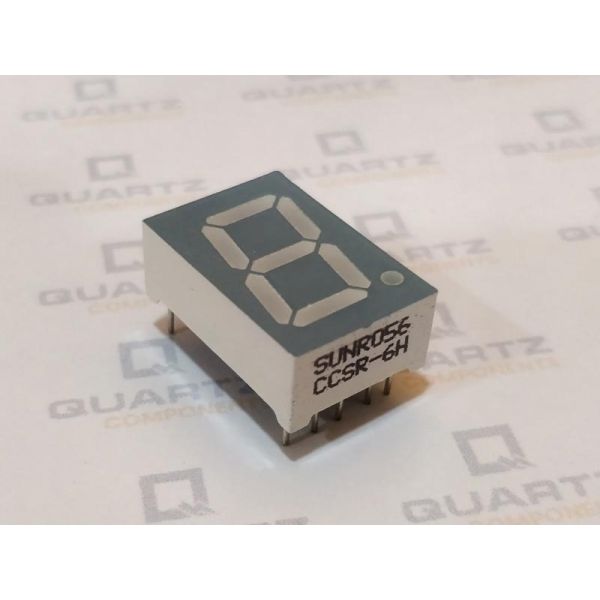

This is a 13 mm single character 0.56 inch 7-segment common cathode display. It is designed such that all the cathode pins of the LEDs are connected to ground. The viewing distance can be up to 7m and the display color is red. Alternative to this, is the 7-segment common anode display.

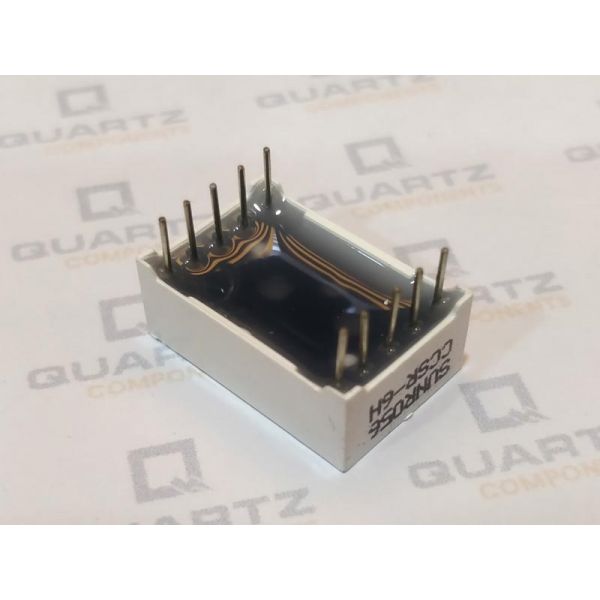

Pin Description of the 7-Segment Display

             Pin-Description



          7-segment

Specifications of the 7-segment common cathode

  • Evenly lighted segments
  • Common- Cathode Circuitry
  • Color : Red
  • Wide Viewing angle, ± 50 ° angle
  • Luminous intensity: 2800 to 9000 ucd
  • Wavelength: 612 to 625 nm
  • Typical forward voltage : 2V
  • Current Consumption : 30mA/segment
  • Peak Current :70mA
  • Package: 13mm



Additional Resources

Package Includes

1 x 7-Segment Display (Common Cathode) - Red

This is a 13 mm single character 0.56 inch 7-segment common cathode display. It is designed such that all the cathode pins of the LEDs are connected to ground. The viewing distance can be up to 7m and the display color is red. Alternative to this, is the 7-segment common anode display.



Pin Description of the 7-Segment Display

             Pin-Description



          7-segment

Specifications of the 7-segment common cathode

  • Evenly lighted segments
  • Common- Cathode Circuitry
  • Color : Red
  • Wide Viewing angle, ± 50 ° angle
  • Luminous intensity: 2800 to 9000 ucd
  • Wavelength: 612 to 625 nm
  • Typical forward voltage : 2V
  • Current Consumption : 30mA/segment
  • Peak Current :70mA
  • Package: 13mm



Additional Resources

Package Includes

1 x 7-Segment Display (Common Cathode) - Red
