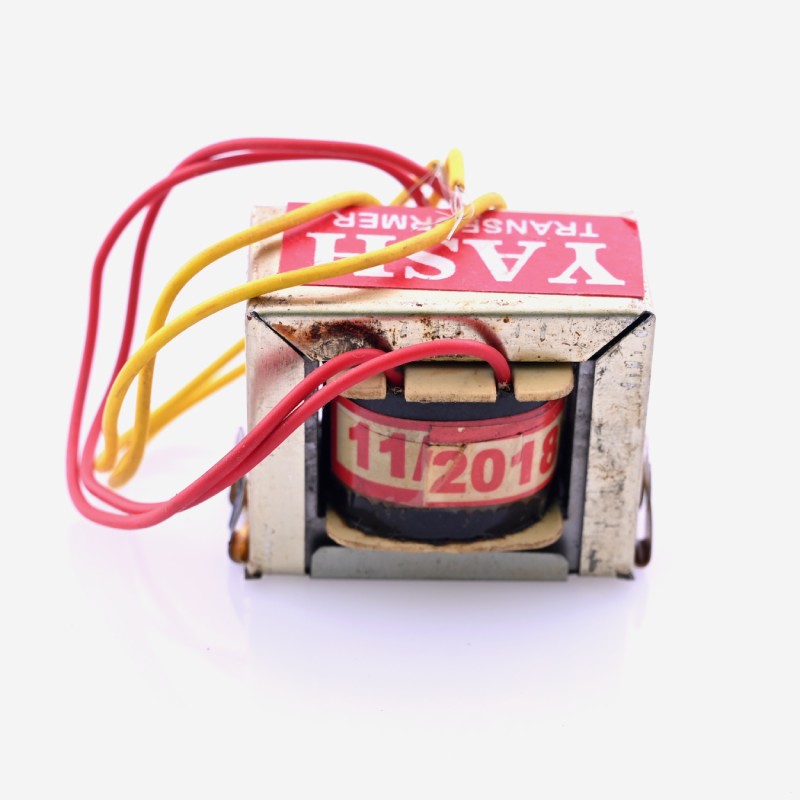

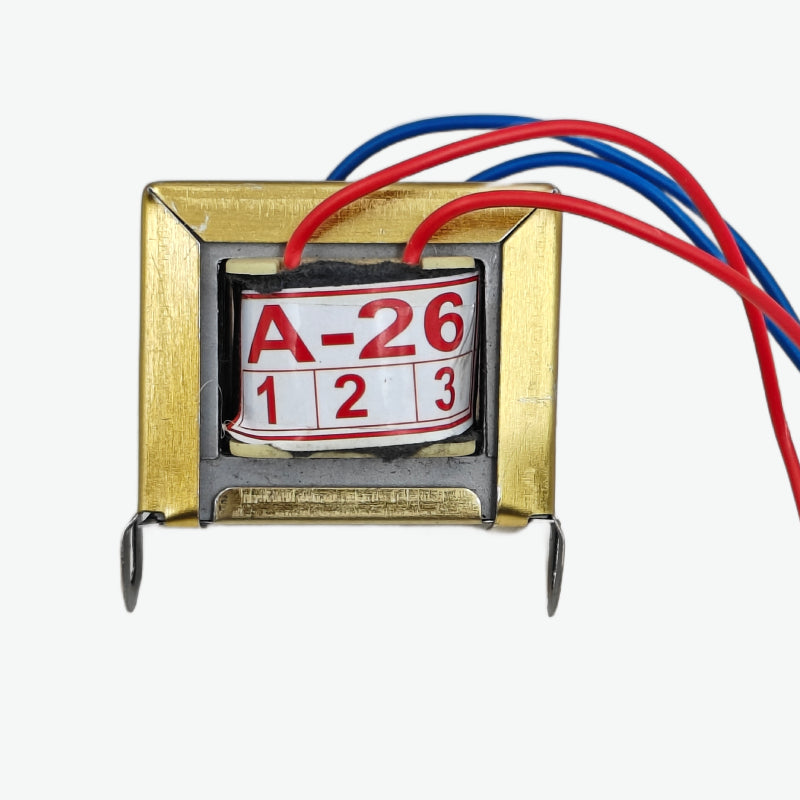

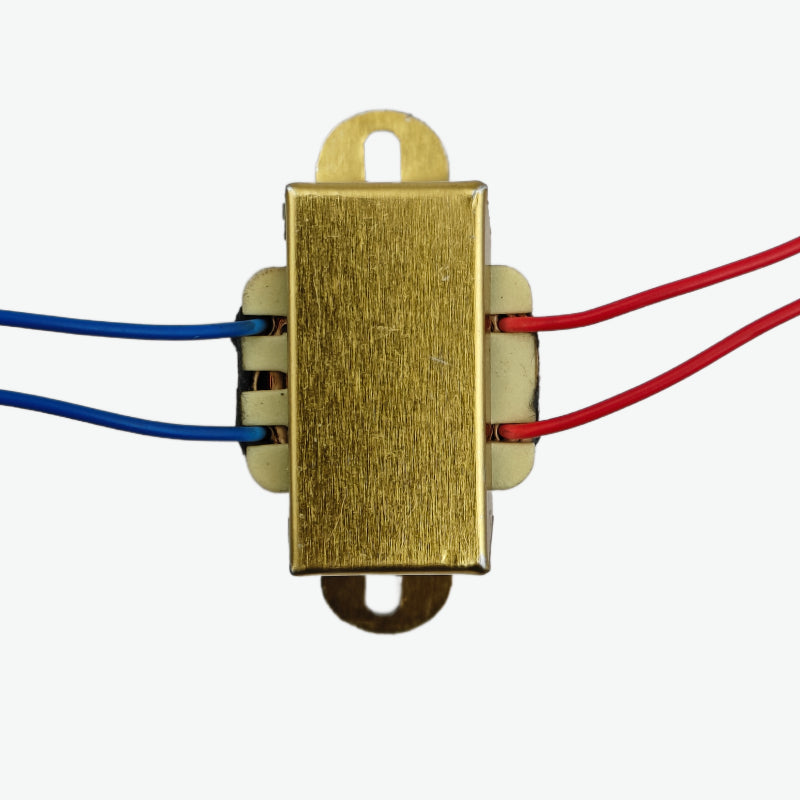

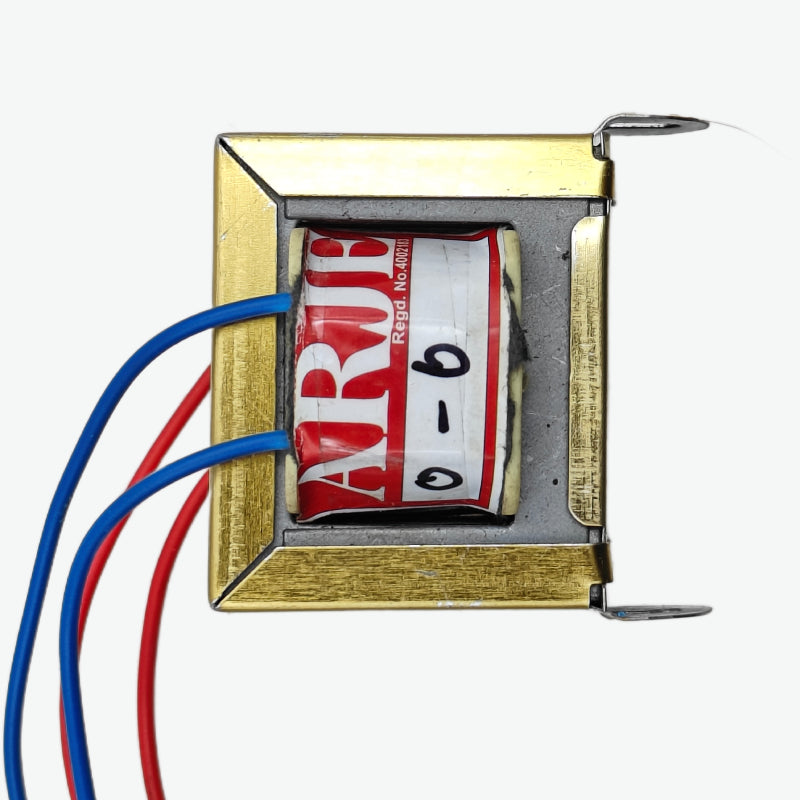

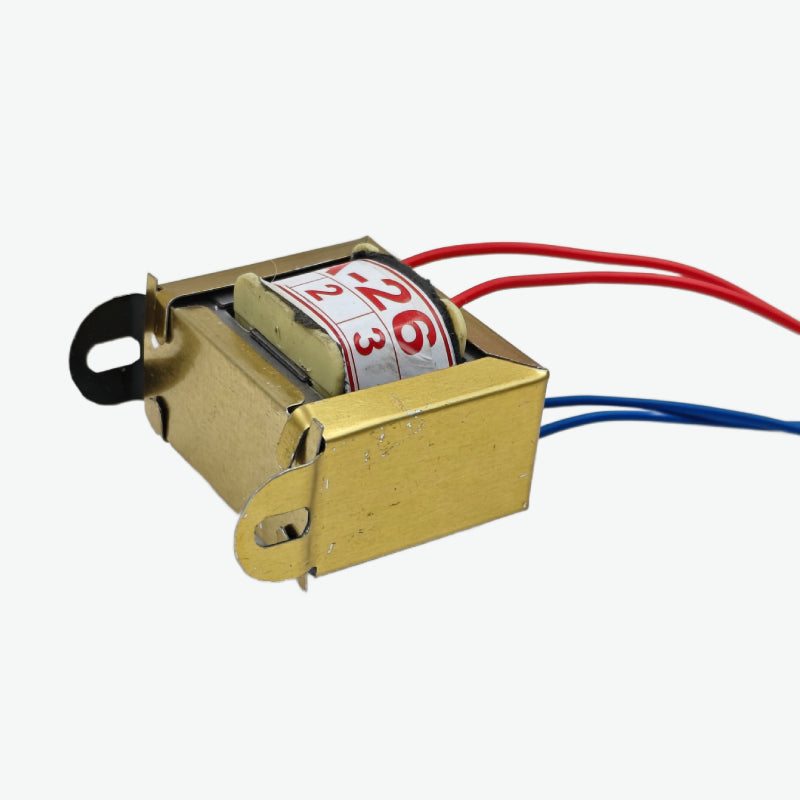

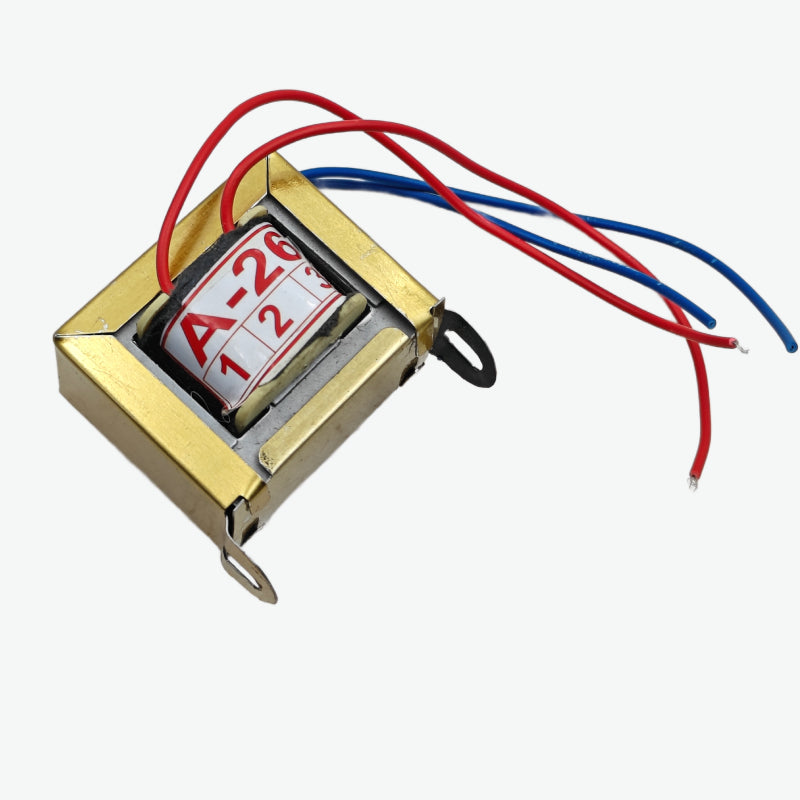

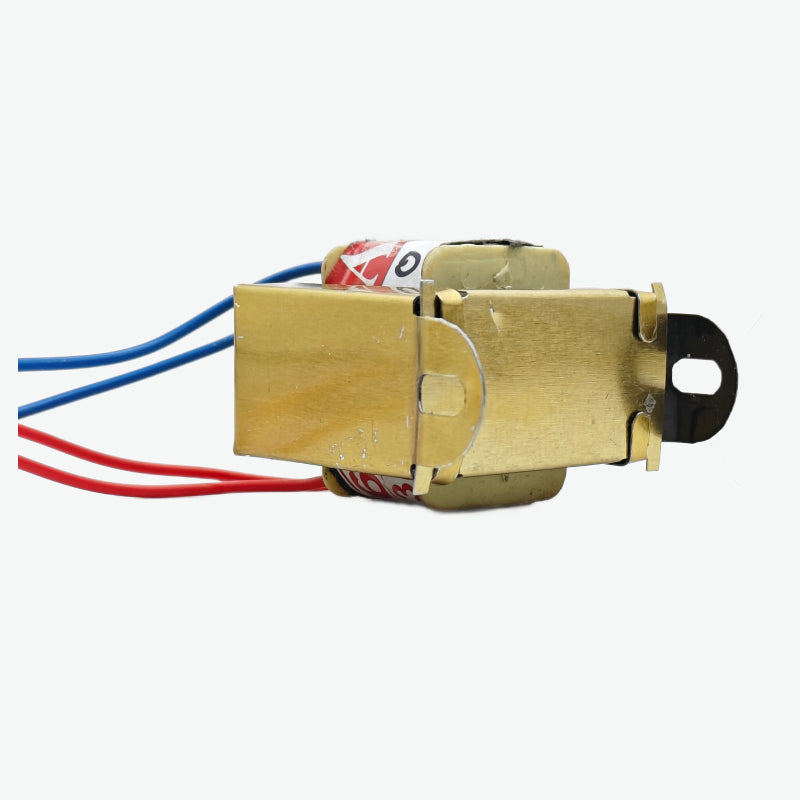

0-6 6V 500mA Step Down Transformer 0-6 6V 500mA Step Down Transformer

QC0149

8 In stock

Rs. 81.00
(Excluding 18% GST)
-
+
Rs. 95.58
(inc. GST)
[Delivery: 2 to 5 days]

Description:

0-6 500mA Step Down Transformer is a general-purpose chassis mounting mains transformer. The transformer has 230V primary winding and non-center tapped secondary winding. The transformer has flying-colored insulated connecting leads ( Approx 100 mm long ). The Transformer act as a step-down transformer reducing AC - 230V to AC - 6V.

The Transformer gives outputs of 6V and 0V. The Transformer's construction is written below with details of Solid Core and Winding.

The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer's core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serving to greatly reduce the magnetizing current and confine the flux to a path that closely couples the winding.


Specifications of 0-6 500mA Step Down Transformer:

  • Input Voltage:          230V AC
  • Output Voltage:         6V or 0V
  • Output Current:         500mA
  • Mounting:                 Vertical mount type
  • Winding:                   Copper



Features of 0-6 500mA Step Down Transformer:

  • Soft Iron Core.
  • 500mA Current Drain.
  • 100% Copper Winding



Applications of 0-6 500mA Step Down Transformer:

  • DIY projects Requiring In-Application High current drain.
  • On chassis AC/AC converter.
  • Designing a battery Charger.

Package Contains:

1×0-6 6V 500mA Step Down Transformer

Description:

0-6 500mA Step Down Transformer is a general-purpose chassis mounting mains transformer. The transformer has 230V primary winding and non-center tapped secondary winding. The transformer has flying-colored insulated connecting leads ( Approx 100 mm long ). The Transformer act as a step-down transformer reducing AC - 230V to AC - 6V.

The Transformer gives outputs of 6V and 0V. The Transformer's construction is written below with details of Solid Core and Winding.

The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer's core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serving to greatly reduce the magnetizing current and confine the flux to a path that closely couples the winding.


Specifications of 0-6 500mA Step Down Transformer:

  • Input Voltage:          230V AC
  • Output Voltage:         6V or 0V
  • Output Current:         500mA
  • Mounting:                 Vertical mount type
  • Winding:                   Copper



Features of 0-6 500mA Step Down Transformer:

  • Soft Iron Core.
  • 500mA Current Drain.
  • 100% Copper Winding



Applications of 0-6 500mA Step Down Transformer:

  • DIY projects Requiring In-Application High current drain.
  • On chassis AC/AC converter.
  • Designing a battery Charger.

Package Contains:

1×0-6 6V 500mA Step Down Transformer
