The 6N139 is a high-speed optocoupler with a photodiode and high-gain transistor output, designed for isolating logic-level signals in digital circuits. Featuring a CTR (current transfer ratio) as high as 600% and a typical switching speed of 1 MHz, the 6N139 is well-suited for interfacing microcontrollers, industrial logic circuits, and communication systems with electrical isolation up to 5000 Vrms. Its DIP-8 through-hole package allows easy integration into breadboards and PCBs.
Features of 6N139 Optocoupler:
- High-speed photodiode-transistor optocoupler
- High CTR (Current Transfer Ratio) of up to 600%
- Input-output isolation voltage of up to 5000 Vrms
- TTL-compatible logic output
- Typical switching frequency: 1 MHz
- Low input current drive (1.6 mA typical)
- DIP-8 through-hole package for easy prototyping
- Ideal for digital interfacing, PLCs, and signal isolation
Specifications of 6N139 Optocoupler:
- Model: 6N139
- Type: Optocoupler / Phototransistor
- Package: DIP-8
- Isolation Voltage: 5000 Vrms
- CTR Range: 200% to 600%
- Input LED Forward Current: 10 mA (typ.)
- Switching Speed: Up to 1 MHz
- Supply Voltage Range: 3V to 15V (logic side)
- Operating Temperature Range: -55°C to +100°C
Package Includes:

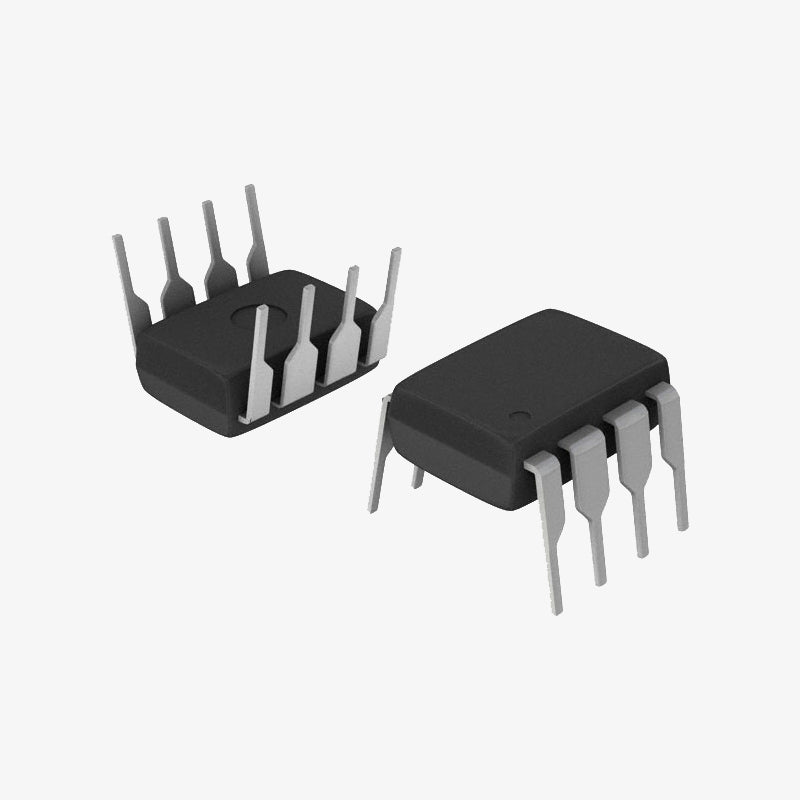

1 × 6N139 Optocoupler – DIP-8 Package
