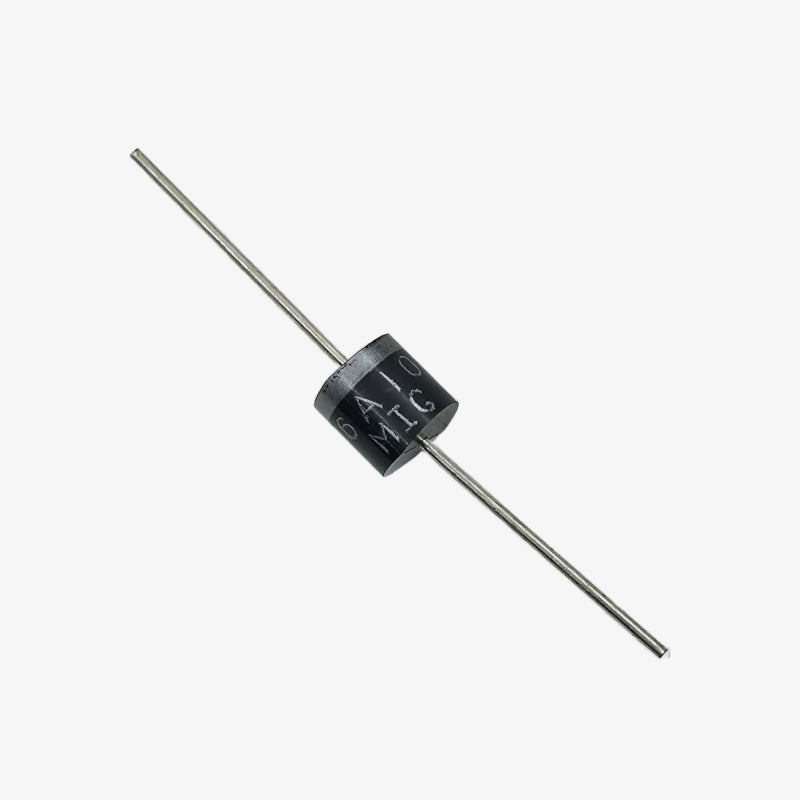

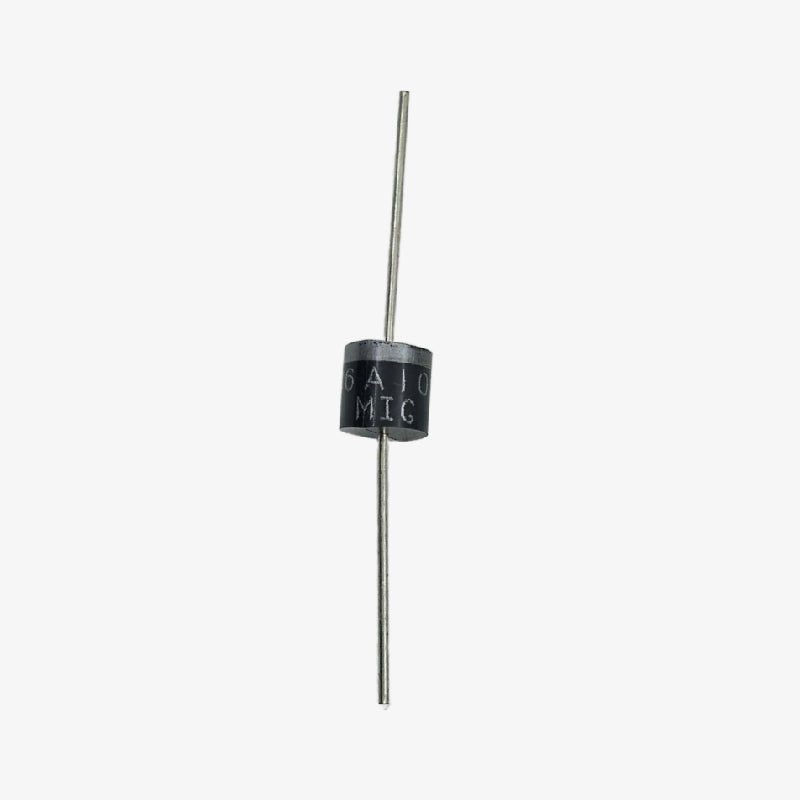

6A10 General Purpose Silicon Rectifier Diode 6A
SKU:
CMP-QC3712
Availability:
96
In Stock
-
- Rs. 8.00
- Unit price
- per
Subtotal:
Rs. 8.00
Description
xThe 6A10 General Purpose Silicon Rectifier Diode 6A is built for high-capacity AC to DC rectification in demanding power circuits. Its robust R-6 molded package ensures strong thermal endurance during continuous operation. Ideal for adapters, SMPS stages, chargers, and general high-current rectifier applications.
Features:
- Handles heavy 6A rectification for high-load power conversion
- Maintains efficient conduction with low forward voltage characteristics
- R-6 molded body offers superior mechanical and thermal durability
- Manufactured with flame-retardant 94V-0 materials for enhanced safety
Specifications:
- Maximum Peak Reverse Voltage (VRRM): 1000 V
- Maximum RMS Voltage: 700 V
- Maximum DC Blocking Voltage (VDC): 1000 V
- Average Forward Rectified Current (IAV): 6.0 A
- Peak Forward Surge Current (IFSM): 400 A
- Instantaneous Forward Voltage at 6A (VF): 0.90 V
- Reverse Current at 25°C (IR): 10 µA
- Reverse Current at 100°C (IR): 100 µA
- Moisture Sensitivity Level: MSL 1
Package Includes:
1 × 6A10 General Purpose Silicon Rectifier Diode 6A
