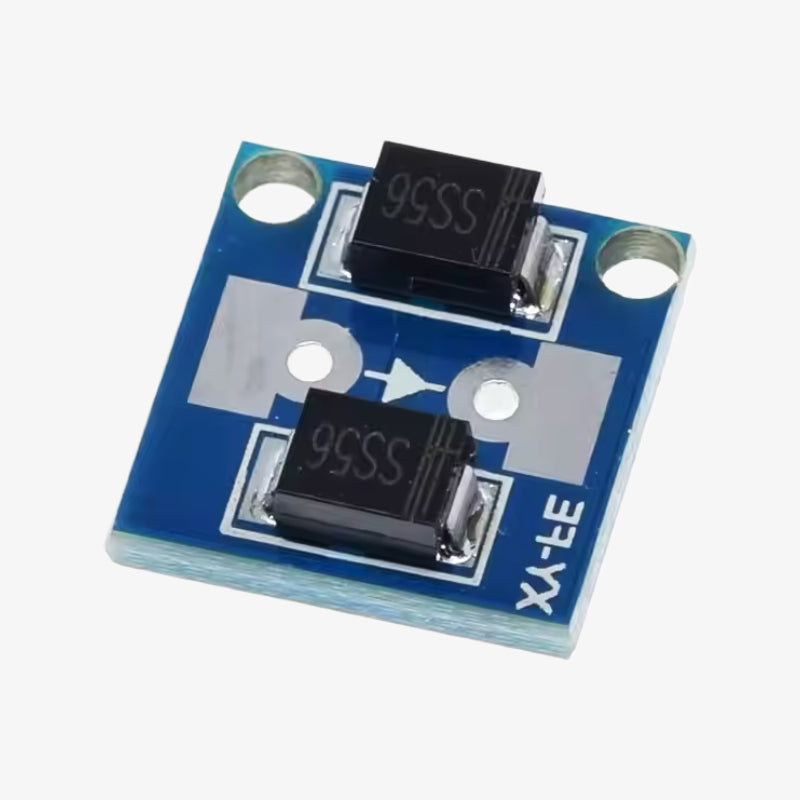

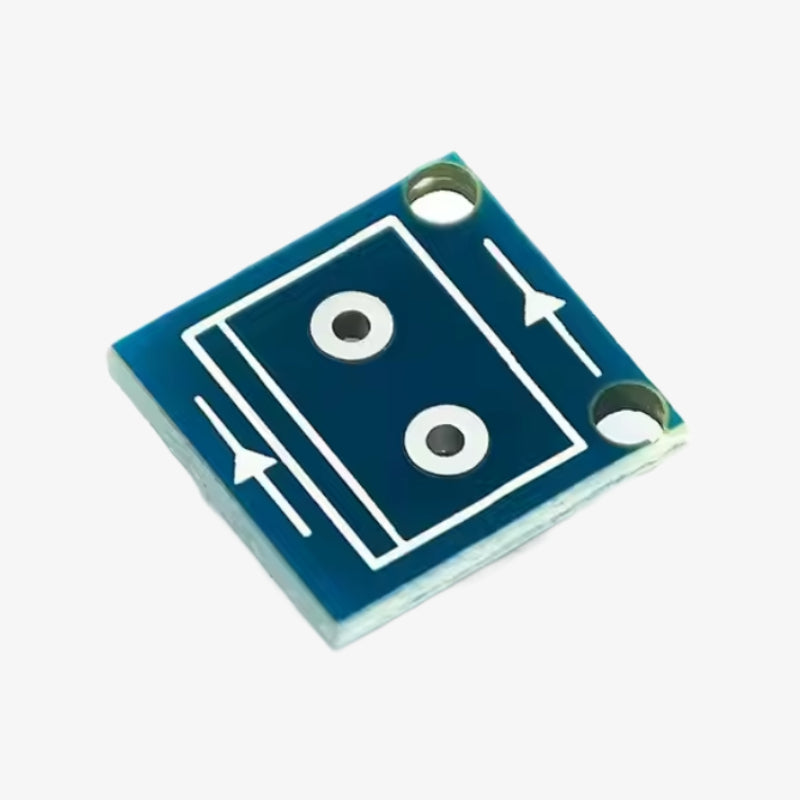

The 60V 10A Anti-Reverse Diode Constant-Current Power Module is a compact and efficient solution for managing power flow in solar charging, battery charging, and similar applications. It prevents reverse current flow using parallel SS56 Schottky diodes, ensuring stable and reliable operation while maintaining a consistent current output.
Features
Anti-Reverse Diode: Prevents current flow in the wrong direction, protecting connected systems.
High Voltage and Current Ratings: Supports up to 60V and 10A for high-power applications.
Constant Current Output: Ensures a stable and reliable current supply.
Low Voltage Drop: Incorporates SS56 Schottky diodes with minimal internal resistance and voltage loss.
Wide Temperature Range: Operates effectively between -40°C and 85°C.
Compact Design: Small SMD module for easy integration.
Specifications
Supply Voltage: Up to 60V
Maximum Current: 10A
Operating Temperature: -40°C to 85°C
Current Dissipation: 10,000mA
Color: Blue (Note: PCB color may vary)
Case/Package: SMD
Package Includes
1 x 60V 10A Anti-Reverse Diode Constant-Current Power Module
