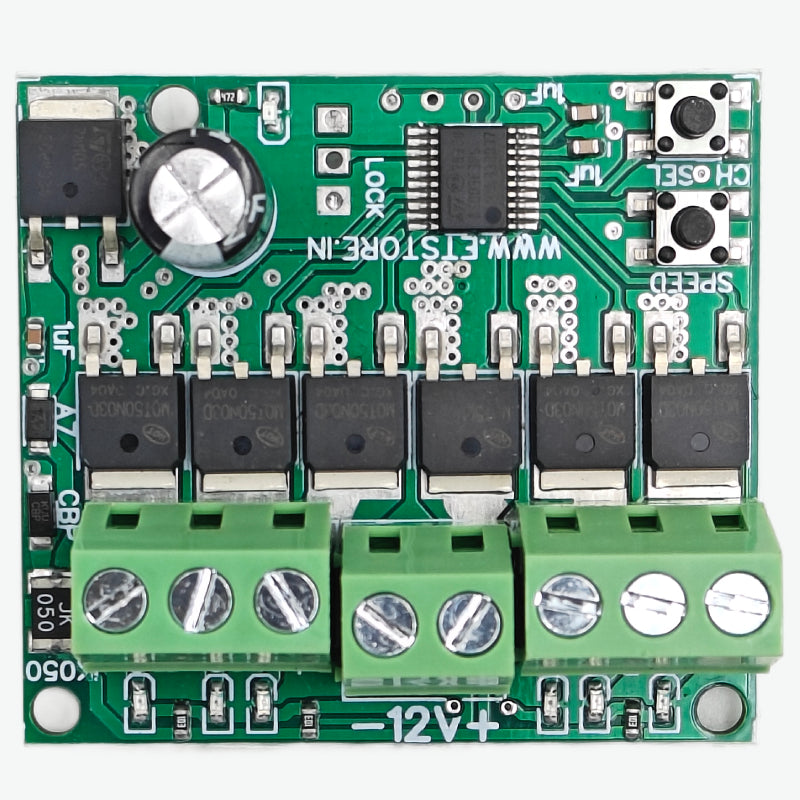

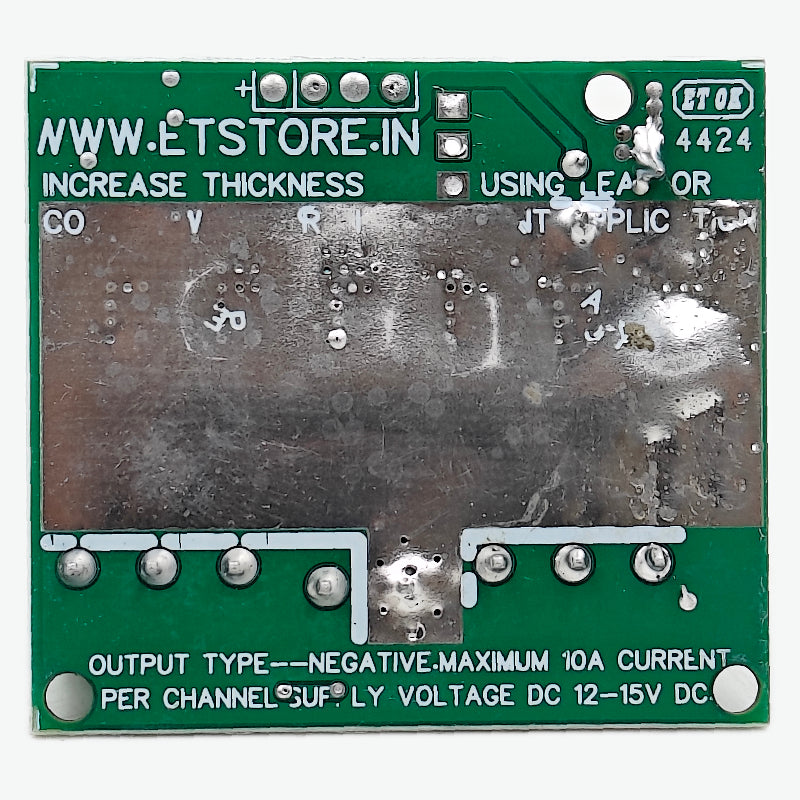

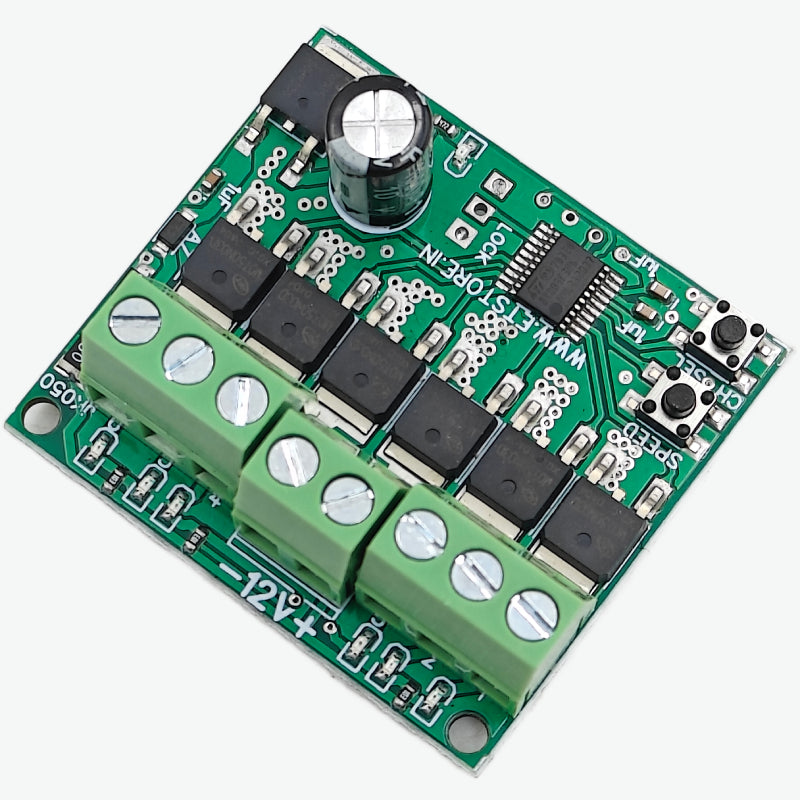

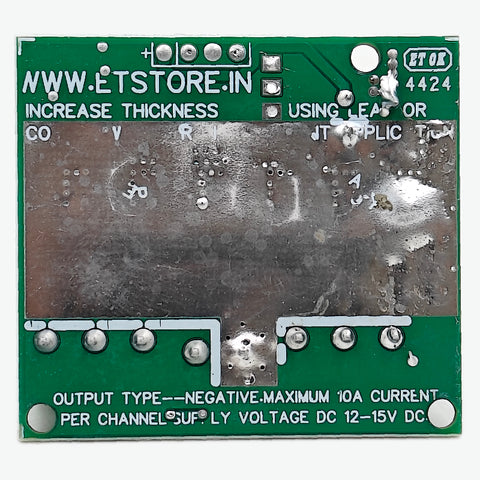

6 DC Light Chaser 7-15v 15A with 25 Design, Mode and Speed Control

The 6 Channel DC Light Chaser Module is a high-power, ready-to-use electronic control board designed to create dynamic and decorative lighting effects. With 25 built-in lighting designs, along with mode selection and speed control, this module is ideal for advanced DC lighting applications such as decorative installations, automotive lighting, stage effects, signage, and DIY electronics projects. Operating on a wide 7V–15V DC input range, the module supports a total load capacity of up to 15A, making it suitable for driving high-power DC lights, LED strips, and other low-voltage DC loads with proper wiring and heat management.

Features:

1. 6-channel DC light chaser output
2. 25 built-in lighting designs / patterns
3. Mode selection control for changing lighting effects
4. Adjustable speed control for chase and animation effects
5. Wide DC operating voltage range: 7V to 15V
6. Supports up to 15A total load current
7. Suitable for high-power DC lights and LED strips
8. Compact and robust PCB design for easy installation
9. Ideal for decorative, automotive, signage, and DIY lighting projects

Specifications:

• Module Type: Multi-Design DC Light Chaser Controller
• Number of Channels: 6
• Input Voltage: DC 7V – 15V
• Maximum Load Current: Up to 15A (total, application dependent)
• Number of Designs: 25
• Control Functions: Mode selection and speed control
• Output Type: Sequential / patterned DC output
• Switching Mode: Automatic and user-selectable patterns
• PCB Material: FR4
• Operating Temperature: –10°C to +60°C

Package Includes:

1 × 6 Channel DC Light Chaser Module (25 Designs, Mode & Speed Control)
