6-30V 1-Channel Power Relay Module with Adjustable Timing Cycle and LED Display
Relay Module with Adjustable Timing Cycle
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

6-30V 1-Channel Relay Module with Adjustable Timing Cycle and LED Display

QC2505
Out of stock
Rs. 144.00 (Exc. GST)

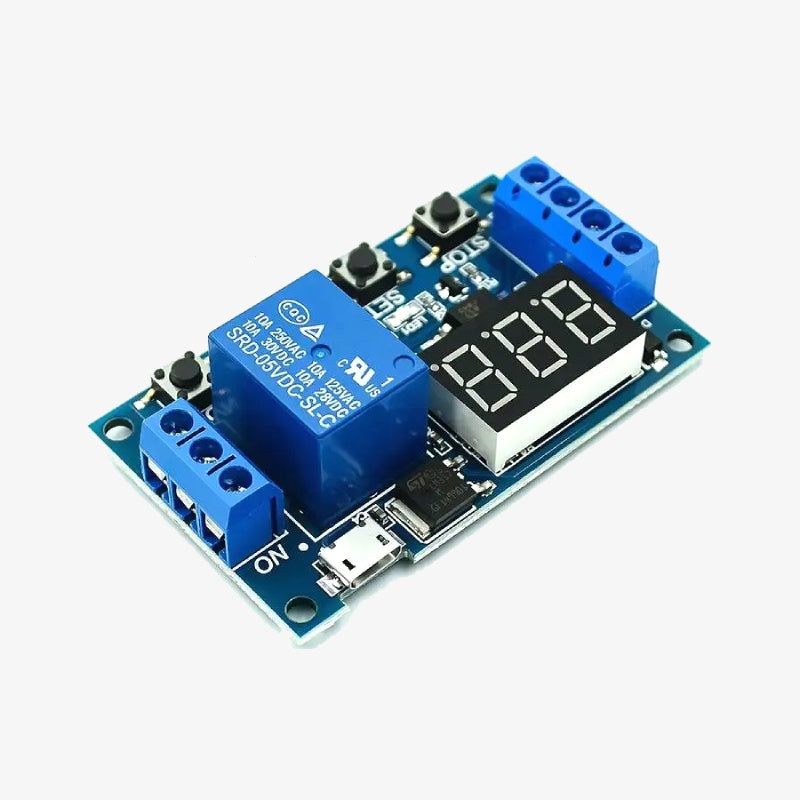

The 6-30V 1-Channel Power Relay Module with Adjustable Timing Cycle, designed for various automation and control applications. This versatile module features an easy-to-read Digital LED display and operates within a wide voltage range of 6-30V, also supporting micro USB 5.0V power supply for added convenience.

The 6-30V Power Relay Module with Adjustable Timing is great for home automation and industrial uses. This device acts as a delay timer control switch and an adjustable timing cycle relay, making it useful for controlling lights, appliances, or machinery. It has a digital LED display for easy setup and monitoring, ensuring reliable performance for high voltage applications.

Features:

  • Wide Voltage Range: Operates between 6-30V, making it compatible with a variety of power sources.
  • Adjustable Timing Cycle: Set delay times ranging from 0.1 seconds to 999 minutes, providing flexibility for your automation needs.
  • High Output Capacity: Controls devices up to DC 30V 10A or AC 250V 10A, suitable for high-power applications.
  • Optocoupler Isolation: Enhances anti-interference capability, ensuring stable performance.
  • Emergency Stop Function: Features a "STOP" button for quick deactivation in case of emergencies.
  • Sleep Mode: Automatically turns off the display after 5 minutes of inactivity to save power.

Specifications:

  • Operating Voltage: 6V-30V DC, supports micro USB 5.0V power supply.
  • Current: Quiescent current 20mA, operating current 50mA.
  • Switching Voltage: DC 30V 10A or AC 250V 10A.
  • Trigger Voltage: 5V DC
  • Supply Current: 0.05A
  • Time Range: 0.1s to 999 minutes.
  • Working Temperature: -40°C to 85°C.
  • Dimensions: 62.8 x 38 x 19 mm.

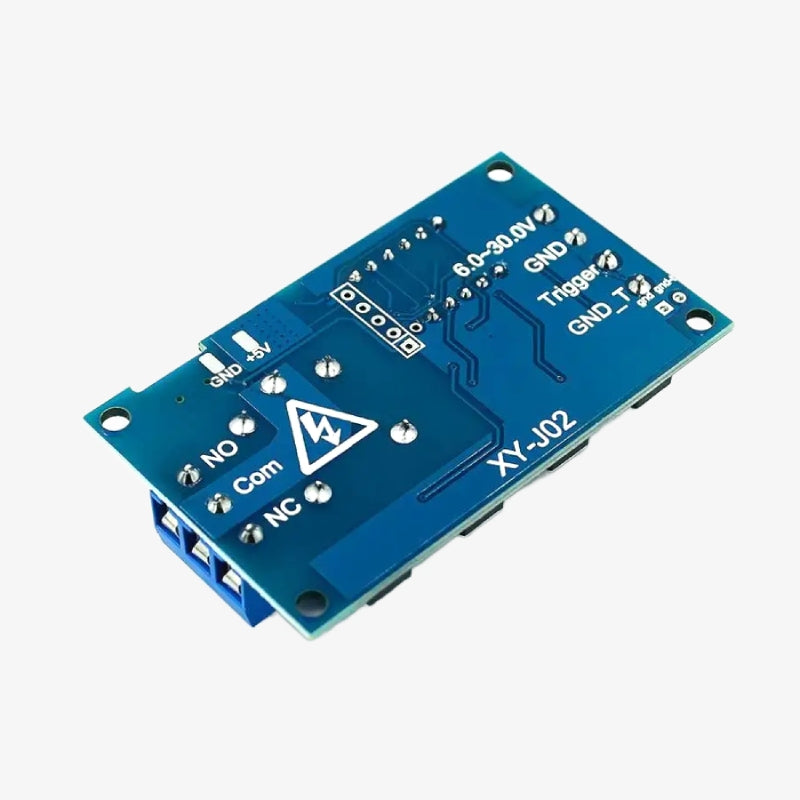

Pin-outs:

Operation Modes:

  • P1 Mode:

    P1.1: After a trigger signal, the relay turns on for the set time (OP) and then turns off. Additional signals during OP are ignored.

    P1.2: After a trigger signal, the relay turns on for the set time (OP) and then turns off. Additional signals during OP restart the timer.

    P1.3: After a trigger signal, the relay turns on for the set time (OP) and then turns off. Additional signals during OP reset the timer and disconnect the relay.

  • P2 Mode: After a trigger signal, the relay turns off for the set time (CL), then turns on for the set time (OP), and then turns off.
  • P3 Mode:

    P3.1: After a trigger signal, the relay turns on for the set time (OP), then turns off for the set time (CL). This cycle repeats for the set number of cycles (LOP). Additional signals during the cycle stop the timing.

    P3.2: The relay turns on for the set time (OP), then turns off for the set time (CL). This cycle repeats for the set number of cycles (LOP) without needing a trigger signal

  • P4 Mode: The relay stays connected as long as there is a trigger signal. When the signal disappears, the relay turns off after the set time (OP). If a new signal is received before the OP time is up, the timer resets.

Setting the Parameters:

  • Select Operation Mode:
  1. Ensure the relay operation mode is appropriate.
  2. The current operating mode will flash on the main interface (default is P1.1).
  3. Long press the SET button for 2 seconds to enter the selection interface mode. Use the UP and DOWN buttons to select the desired mode (P1.1 ~ Q4).
  • Adjust Parameters:
  1. After selecting the mode, press the SET button to adjust the corresponding parameters (OP, CL, LOP). The parameter to be set will flash.
  2. Use the UP and DOWN buttons to adjust the parameter values. Long press for quick adjustment or short press for single-unit increments/decrements.
  3. Press the STOP button to choose the decimal place and select the time interval (0.1 s to 999 min).
  4. Press SET to move to the next parameter. Repeat the process for all parameters.
  • Finalize Settings:
  1. After setting the parameters, long press the SET button to save the configuration and return to the main interface.

Main Interface:

  1. Displays "000" when the relay is not working.
  2. Shows a decimal point during the relay's operating state.

Additional Functions:

  • Activate Relay Mode:
  1. NO: The relay can connect after the power-over time (OP).
  2. OFF: The relay cannot connect in the off state.
  3. Press the STOP button in the main interface to toggle between ON and OFF states.
  • Sleep Mode:
  1. C-P Mode: Nixie tube display will turn off automatically after 5 minutes of no operation.
  2. d-Normal Mode: Nixie tube display stays on continuously.
  3. Press and hold the STOP button for 2 seconds to toggle between C-P and d-Normal modes.

Package Includes:

1 x 6-30V 1-Channel Power Relay Module with Adjustable Timing Cycle and LED Display
