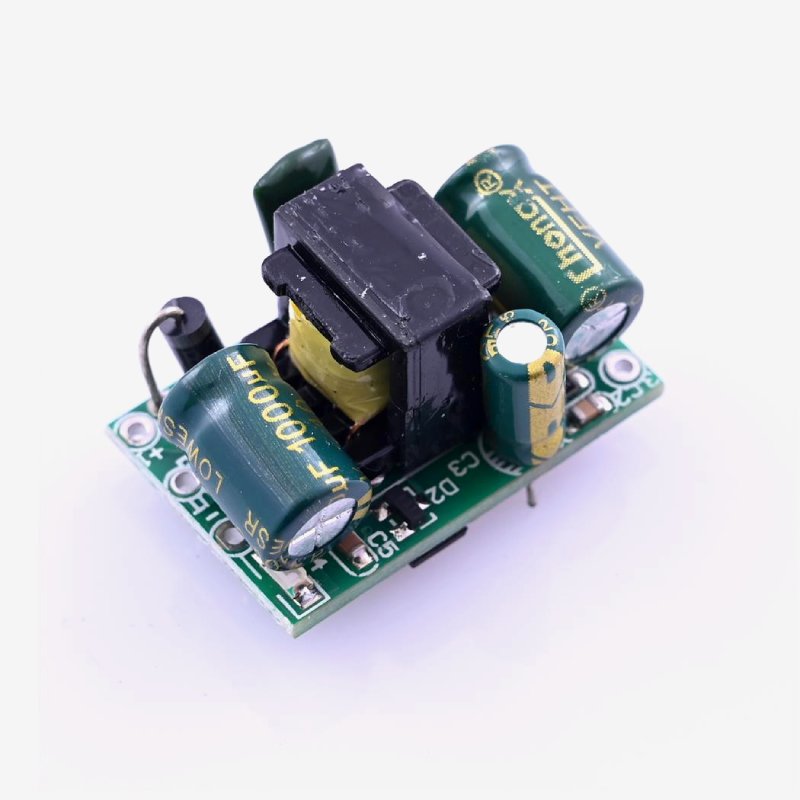

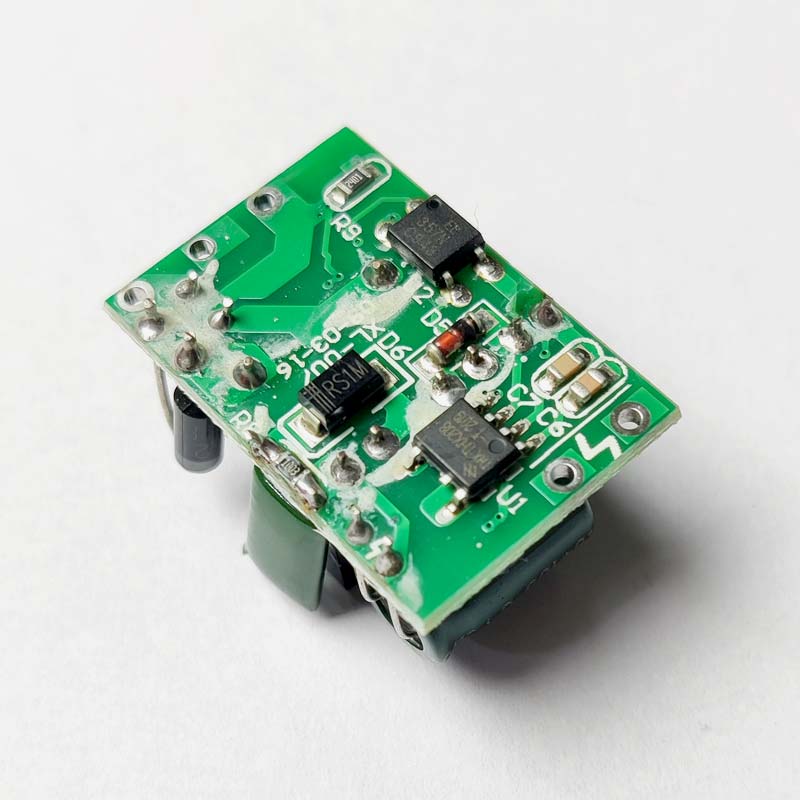

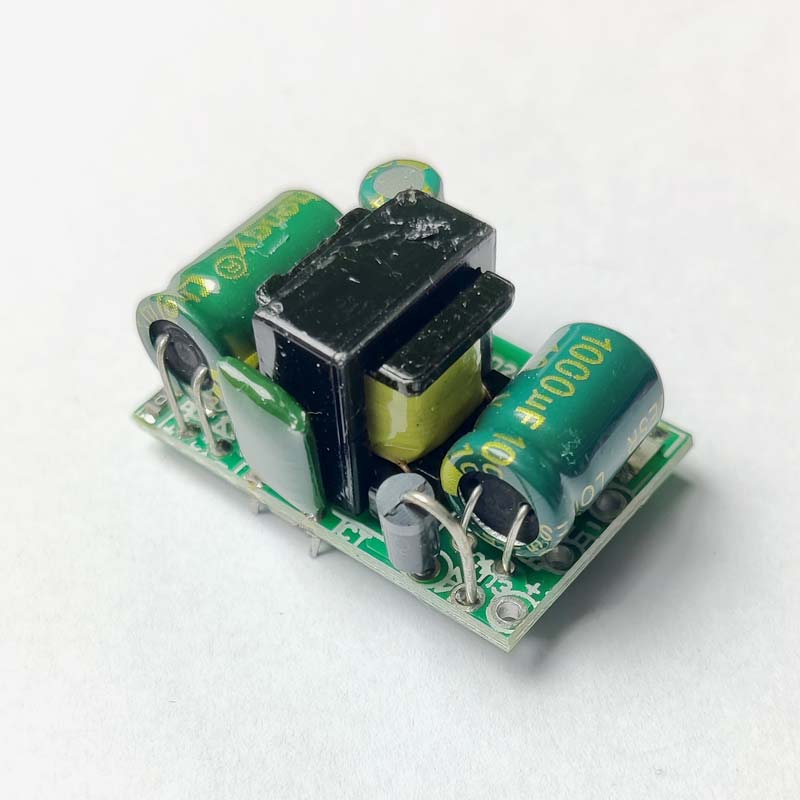

5V 700mA (3.5W) Isolated Switch Power Supply Module (SMPS) 5V 700mA (3.5W) Isolated Switch Power Supply Module (SMPS)

QC0468

1 In stock

Rs. 147.00
-
+
Rs. 147.00
(inc. GST)

5V power supply is required by most digital circuits as TTL logic devices need 5V power supply to work properly and with noise immunity. Its been a standard for a long time now and even today most of the devices like your phone charger, development boards like Arduino and Raspberry Pi, Sensor modules, data transfer devices utilize the 5V power standard to work properly. This 5V-700mA power supply module utilizes Switching Mode converters to produce a regulated ripple free 5V output which can be utilized without worrying about noise and ripple malfunctions. It is isolated from external circuit as well so you don’t have to provide any fault detection relay and protection circuit for it. It can be used to power your low power electronic circuits like battery charger, Powering development boards like ATmega and Arduinos, powering digital sensor circuitry and IoT devices.

5V 700mA (3.5W) Isolated SMPS Specifications:

  • Input voltage range: 50V-277VAC and 100-300VDC
  • Full load power: 3.5W
  • Output current: 700mA, enters constant current mode when fully loaded
  • Output LED indicator
  • Efficiency is about 80%

Product Description

It is very easy to use this module connect the input AC lines on the designated pins from your wall socket and take out the regulated power supply from the output pins from the module. It has stabilizing capacitors and protection circuit onboard so you don’t have to connect any additional circuitry.

Package Content

1×5V 700mA Isolated Switch Power Supply Module

5V power supply is required by most digital circuits as TTL logic devices need 5V power supply to work properly and with noise immunity. Its been a standard for a long time now and even today most of the devices like your phone charger, development boards like Arduino and Raspberry Pi, Sensor modules, data transfer devices utilize the 5V power standard to work properly. This 5V-700mA power supply module utilizes Switching Mode converters to produce a regulated ripple free 5V output which can be utilized without worrying about noise and ripple malfunctions. It is isolated from external circuit as well so you don’t have to provide any fault detection relay and protection circuit for it. It can be used to power your low power electronic circuits like battery charger, Powering development boards like ATmega and Arduinos, powering digital sensor circuitry and IoT devices.

5V 700mA (3.5W) Isolated SMPS Specifications:

  • Input voltage range: 50V-277VAC and 100-300VDC
  • Full load power: 3.5W
  • Output current: 700mA, enters constant current mode when fully loaded
  • Output LED indicator
  • Efficiency is about 80%

Product Description

It is very easy to use this module connect the input AC lines on the designated pins from your wall socket and take out the regulated power supply from the output pins from the module. It has stabilizing capacitors and protection circuit onboard so you don’t have to connect any additional circuitry.

Package Content

1×5V 700mA Isolated Switch Power Supply Module
