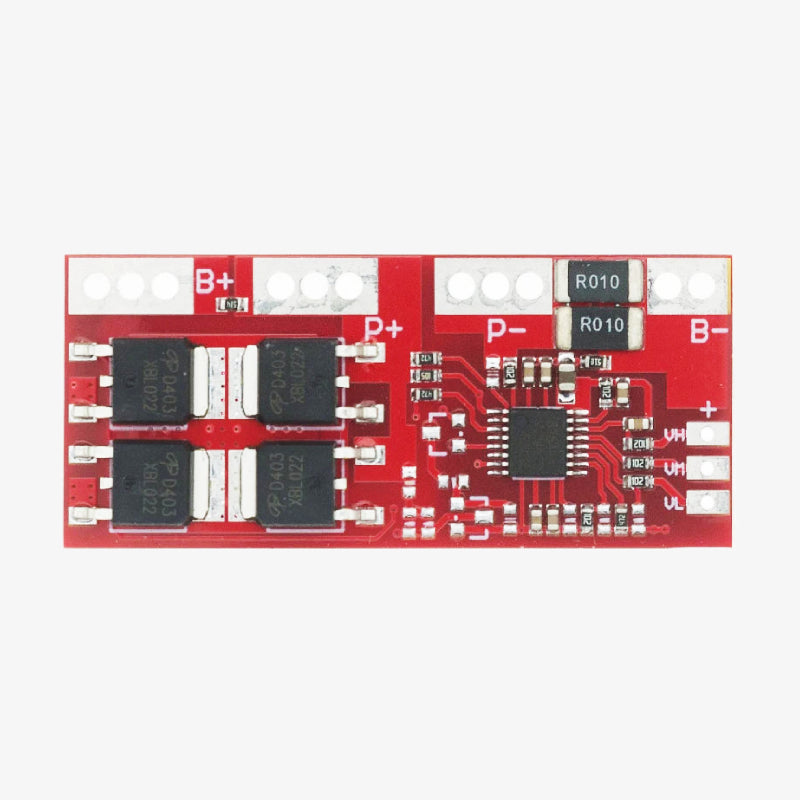

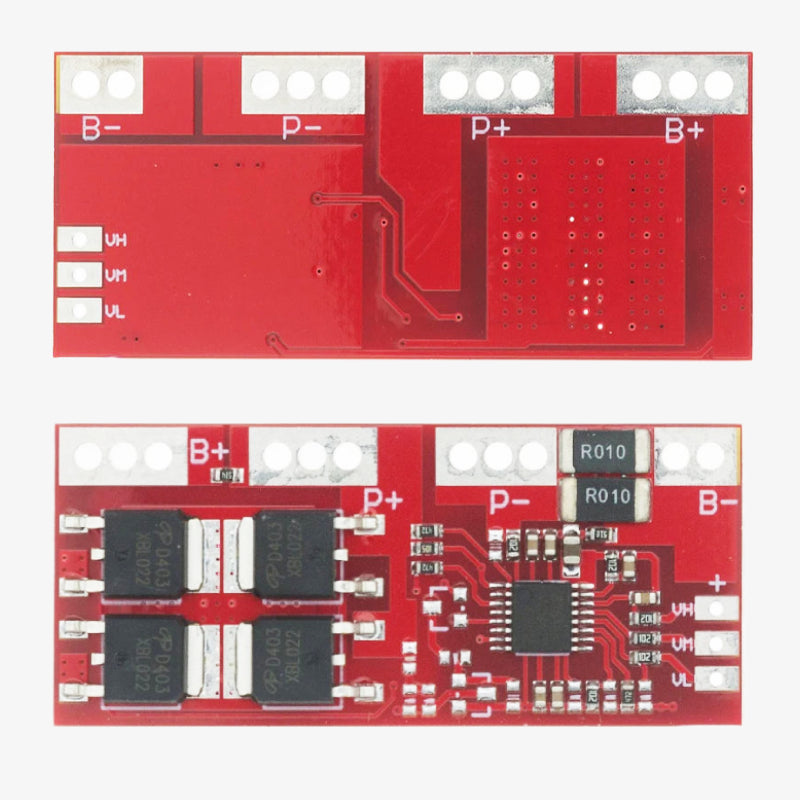

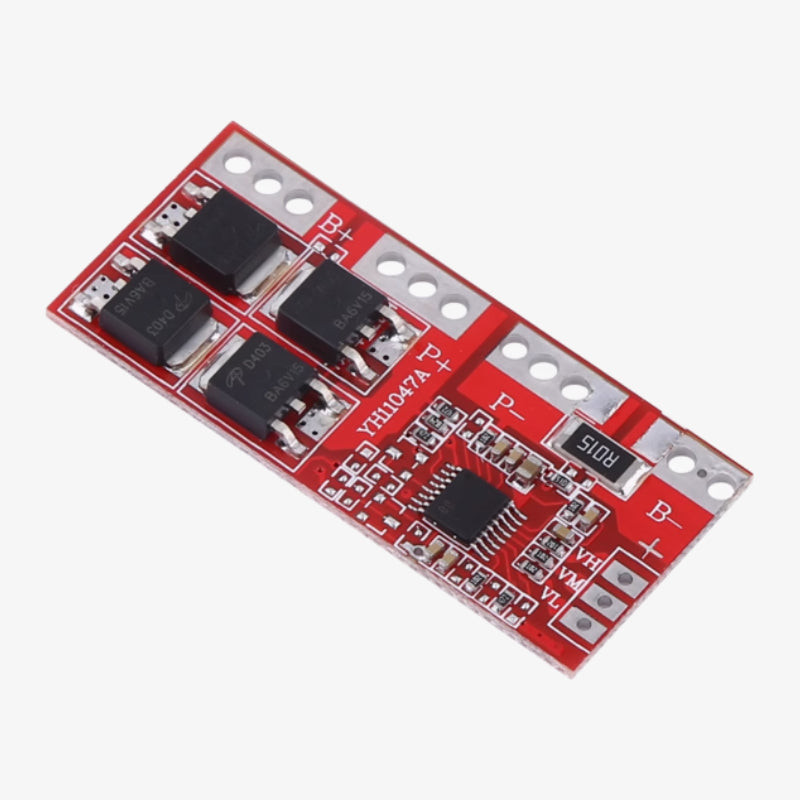

The 4S High Current Lithium Battery Protection Board is designed to protect and manage 4-cell lithium battery packs used in high-power applications. With support for up to 30A continuous discharge, it offers stable performance and safeguards the battery pack against overcharge, over-discharge, short circuit, and overcurrent conditions. It ensures battery reliability and long service life in DIY power banks, robotics, solar systems, and portable energy storage applications.
Features:
- Designed for 4S Lithium Battery Packs (14.8V nominal / 16.8V full charge)
- Supports up to 30A high-current output
- Provides over-charge, over-discharge, overcurrent and short-circuit protection
- Balancing function to maintain consistent cell voltage
- High-quality MOSFETs ensure stable and efficient load handling
- Compact and easy to integrate into battery packs
- Suitable for DIY battery packs, portable power systems, robotics, e-bikes and solar storage units
Specifications:
- Battery Type: 4S Lithium Battery Pack
- Nominal Voltage: 14.8V
- Full Charge Voltage: 16.8V
- Continuous Discharge Current: 30A
- Charging Voltage: 16.8V
- Overcharge Detect Voltage: Approx. 4.25V ±0.05V per cell
- Overcharge Release Voltage: Approx. 4.15V ±0.05V per cell
- Over-discharge Detect Voltage: Approx. 2.7V ±0.1V per cell
- Over-discharge Release Voltage: Approx. 3.0V ±0.1V per cell
- Balancing Function: Yes
- Protection Type: Overcharge / Over-discharge / Overcurrent / Short circuit
- Operating Temperature: –20°C to +60°C
- Board Type: 4S BMS High-Current Protection Board
Package Includes:
1 × 4S High Current 30A Lithium Battery Protection Board
