4S 40A Lithium Battery Protection BMS Board for 3.7V NMC cells

Lithium Ion batteries though have high energy density and light in weight, are very dangerous if abused i.e. if you overcharge or undercharge the battery or draw more current than it can provide then it can explode damaging the surrounding or even potentially harm the humans around. To prevent this from happening you should use your batteries with a protection board.

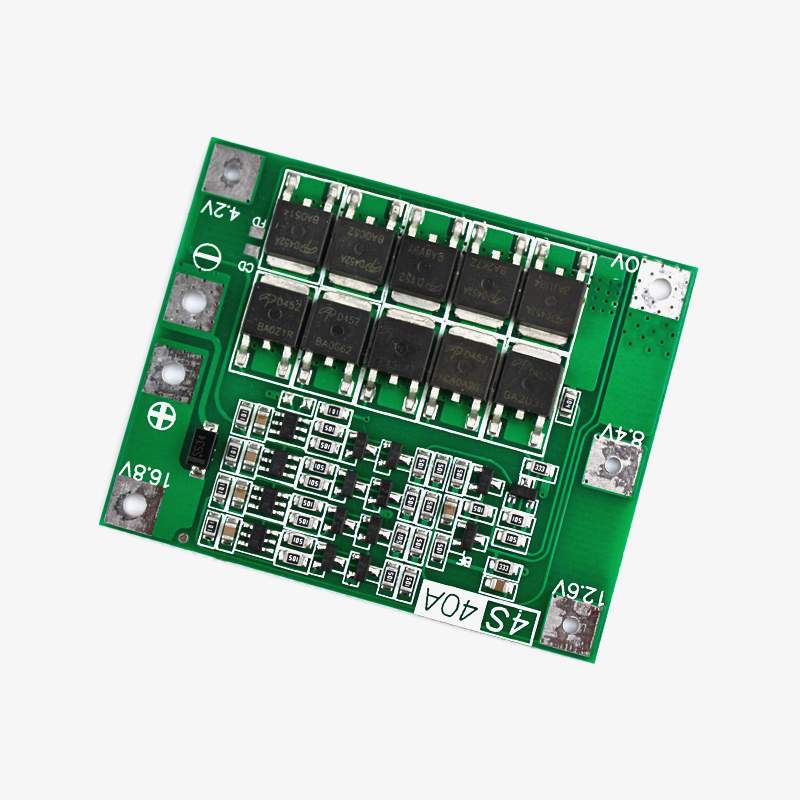

This 4S 40A Lithium-ion Battery Protection Board monitor protects three cells connected in series by monitoring the voltage and current in and out of the battery pack and if any unsafe condition happens then it will cut off the battery from the load or the charger. This can be used in any DIY project where the current is low like Arduino or Raspberry Pi based projects, 3D printers, Quadcopters, Robotics applications etc. As it can handle current up to 40A you can also use it in slightly higher currents. This Board is suitable for 18650 cells having nominal voltage of 3.6V or 3.7V, so it can provide a nominal voltage of about 14V and maximum voltage of 16.8V.

Specifications

• Short circuit protection
• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Overcharge Voltage per cell: 4.2V
• Maximum Working Current: 40A

Product Description

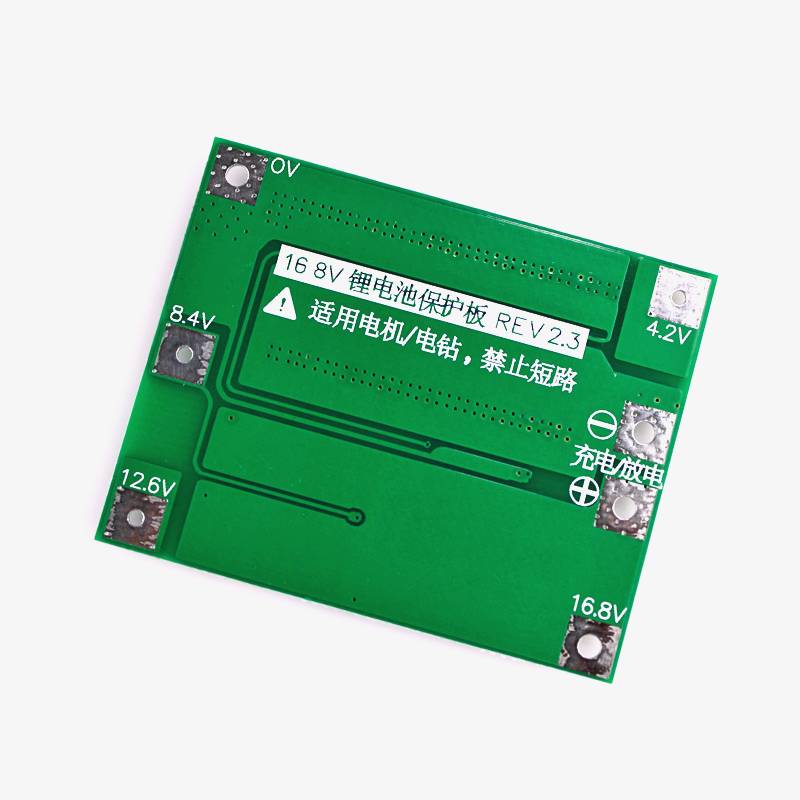

As the Cells are connected in series the positive of 1st cell will be connected to negative of the 2nd cell and so on hence in picture only the terminals are mentioned.

Dimensions : L*B= 60x45mm

Other Sources : 4s 16.8v 40A BMS 18650 Li ion battery Pack - voltage balance with protection board

Package Contents

1×4S Li-ion Battery Protection Board - 40A PCB BMS
