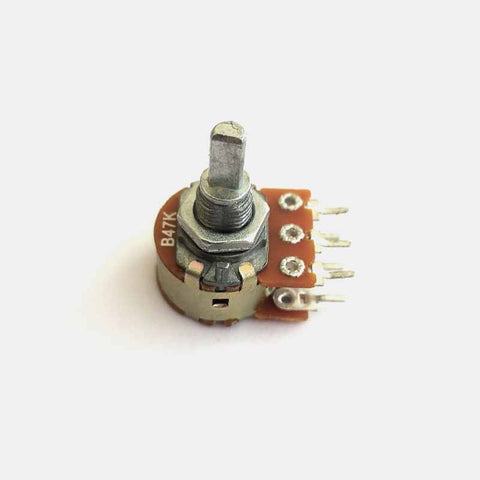

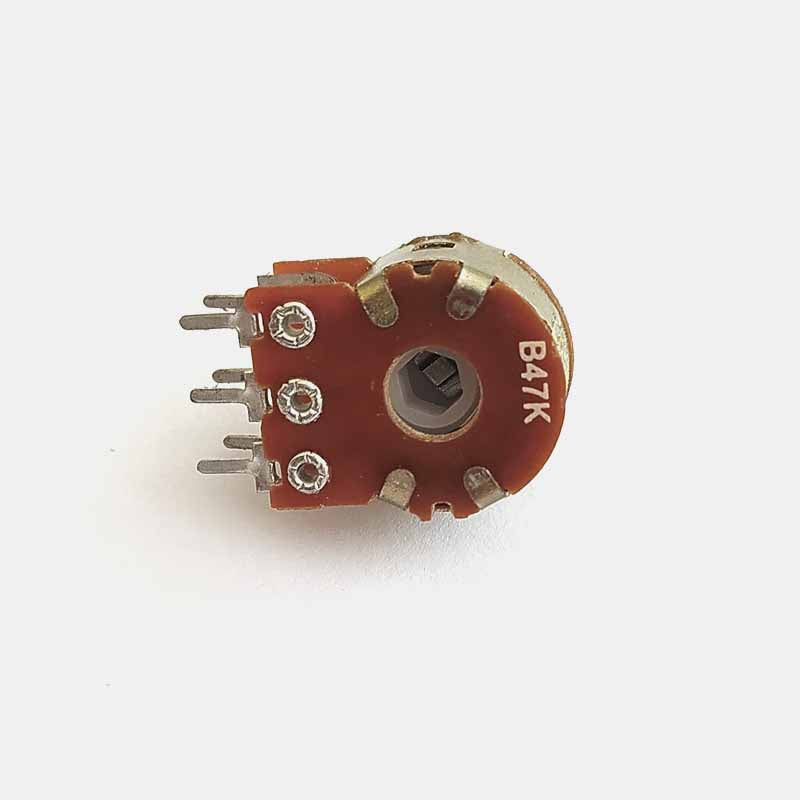

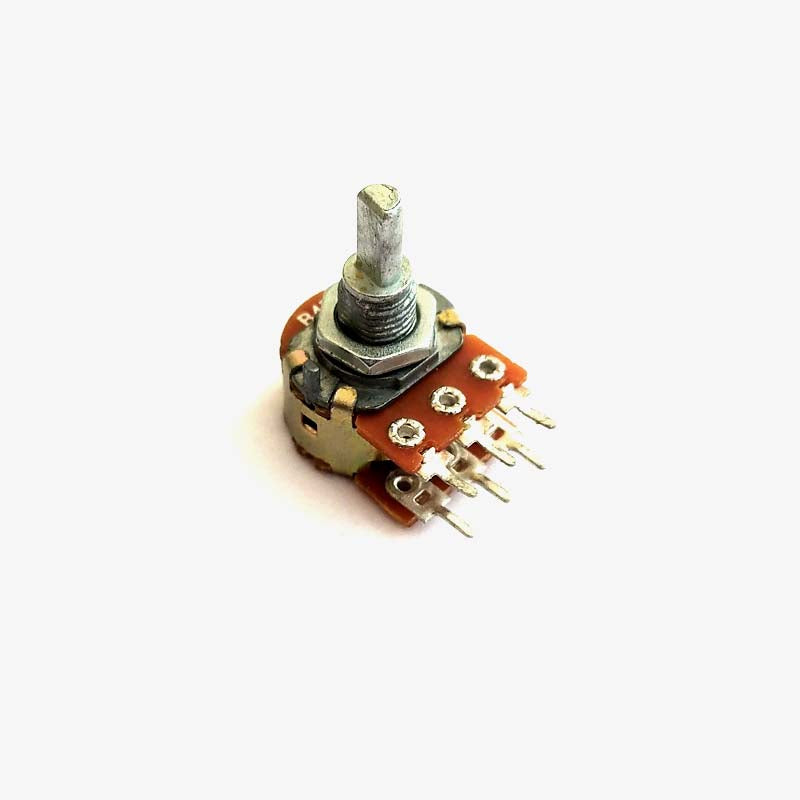

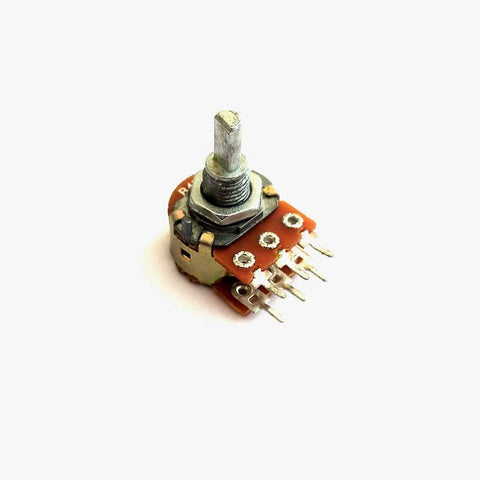

It is a 47kΩ, 6 Pin, Dual Gang Rotary Carbon Potentiometer with a Shaft length of 9mm. This is used for adjusting various parameters like voltage, current, etc in an electronic circuit.
Potentiometers are very useful in changing the electrical parameters of a system. It is a resistive type potentiometer which you can use to change RC constant of a circuit, changing the voltage level at comparator, changing the audio output volume, changing the brightness of any LCD screen, even measuring the rotary movement if it is used as a transducer, controlling the precise movement of servo motors and other control applications. This potentiometer is a rotary type resistive potentiometer where the wiper moves along the circular path and the total resistance of the resistive part is 47kΩ. It’s a 6-pin single turn type rotary potentiometer so you can not control ultra precise applications with it.
47K Ohm Dual Gang Rotary Potentiometer Specifications:
| Potentiometer Type | Rotary Potentiometer |
| Value | 47k ohm |
| Number of Pins | 6 |
| Shaft Length | 9mm |
| Distance between the pins | 5mm |
| Total Potentiometer Height | 25mm |
Package Contents:
1× 47K Ohm 6 pin potentiometer
1× Nut
