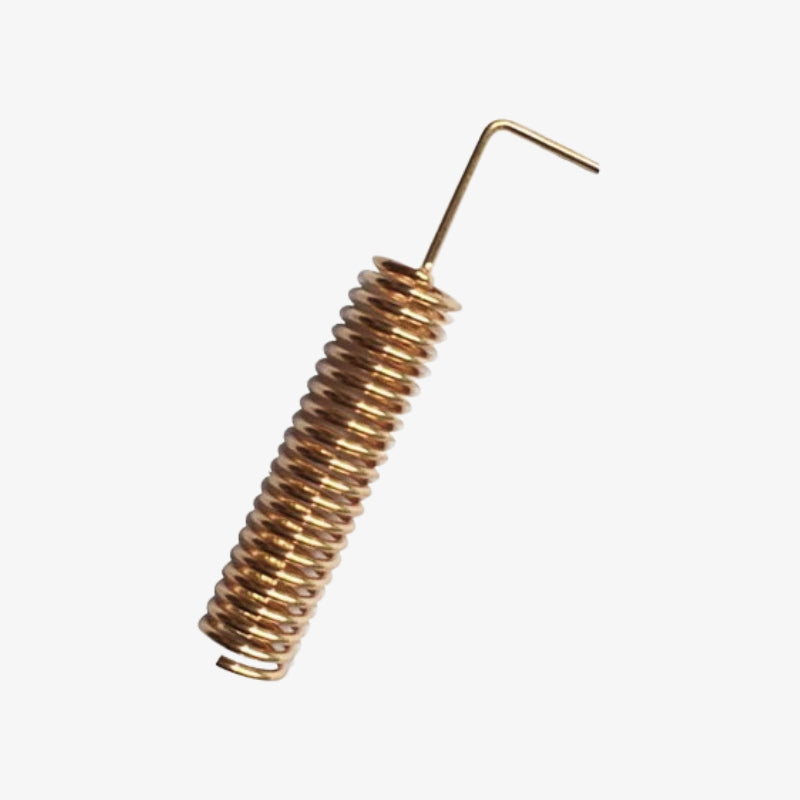

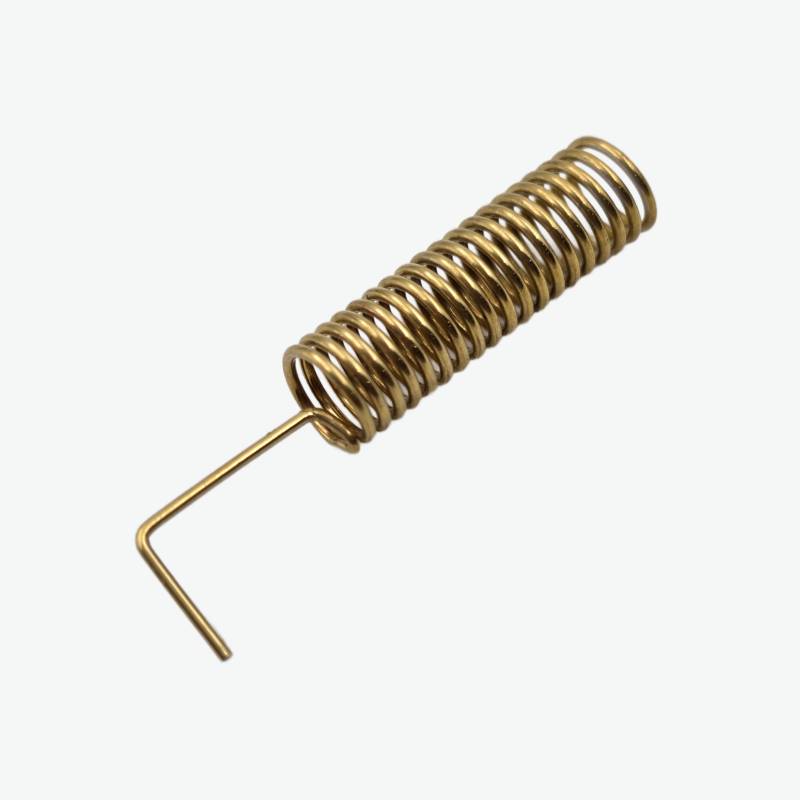

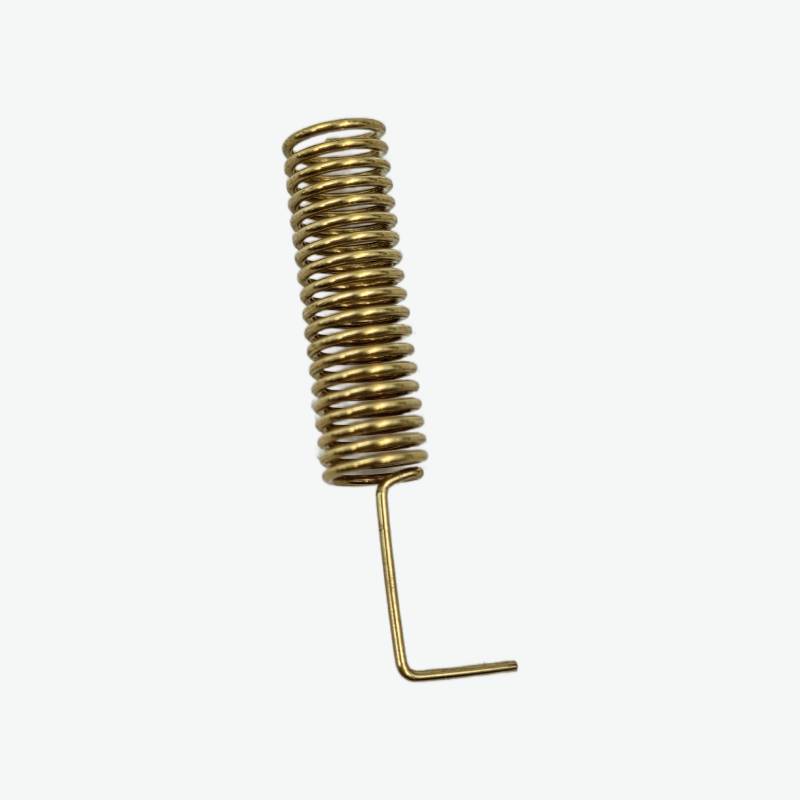

The 433MHz 1dBi Spring DIP Antenna is a compact and efficient antenna designed for ISM band communication systems. Its spring-type structure provides stable signal transmission while maintaining a small footprint, making it ideal for LoRa, remote control, and wireless data transmission applications.
Features:
- Compact helical spring design for space-efficient installation
- Optimized for 433MHz ISM band systems
- Provides stable and reliable signal transmission
- Vertical omni-directional radiation pattern for wide coverage
- DIP mounting for easy PCB integration
Specifications:
- Model: AH1G.301
- Frequency: 433 MHz
- Impedance: 50Ω
- VSWR: ≤2.0
- Gain: 1.0 dBi
- Polarization: Vertical / Omni
- Mounting Type: DIP
- Material: Copper
- Color: Copper
- Size: 5.5 × 36.0 mm
- Weight: 0.8 g
- Operating Temperature: -40°C to +85°C
Package Includes:
1 × 433MHz 1dBi Spring DIP Antenna
