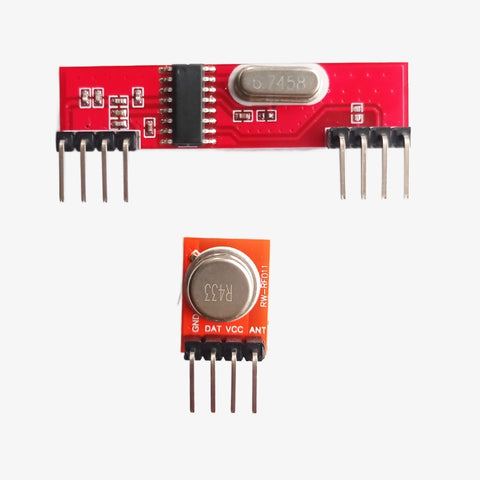

433MHz RF Transmitter and Receiver Wireless Module 433MHz RF Transmitter and Receiver Wireless Module

QC1197

32 In stock

Rs. 115.00
(Excluding 18% GST)
-
+
[Delivery: 2 to 5 days]

This hybrid RF Transceiver Module provides a complete RF transmitter and receiver module solution which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source.

The transmitter module is very simple to operate and offers low current consumption (typical. 11mA). Data can be supplied directly from a microprocessor or encoding device, thus keeping the component count down and ensuring a low hardware cost.

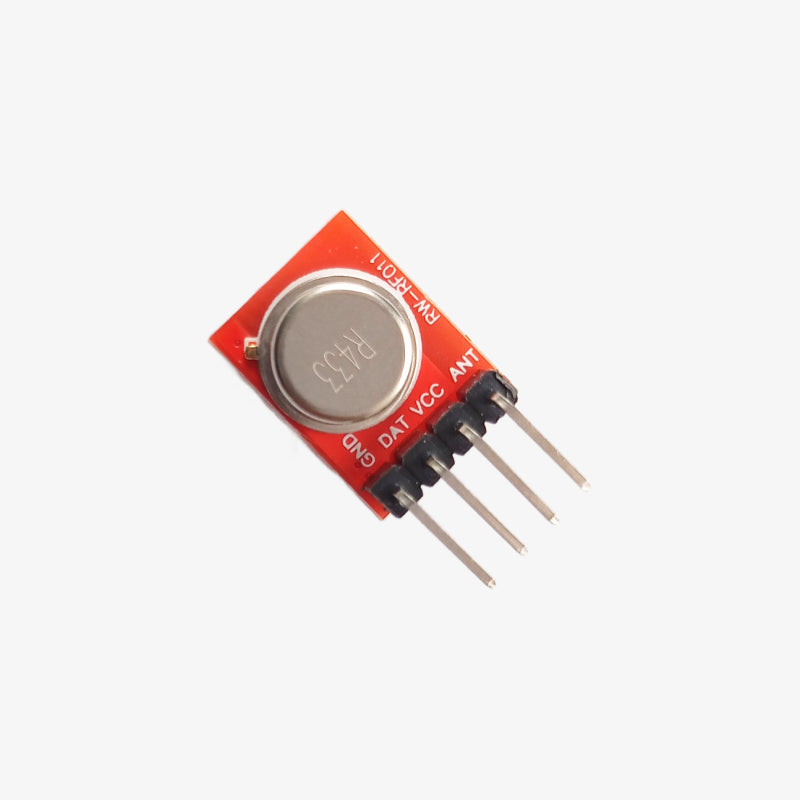

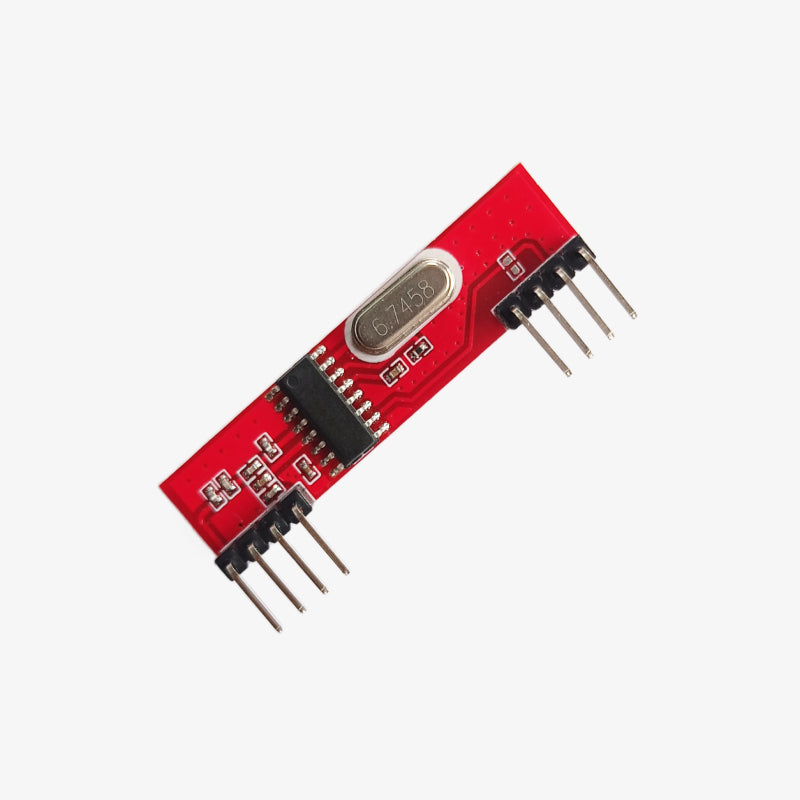

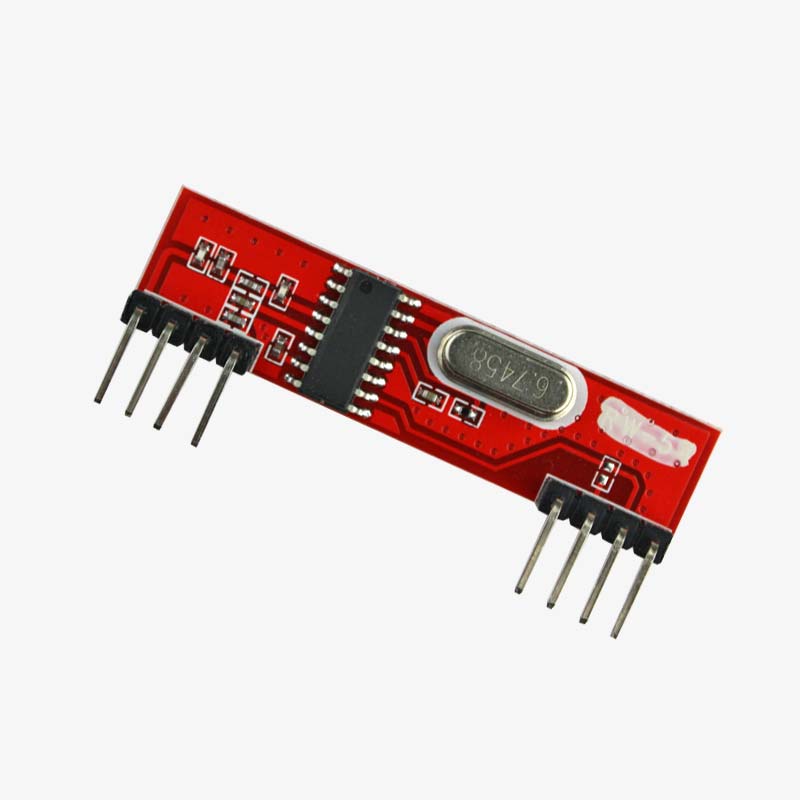

The RX – ASK is an ASK Hybrid receiver module. The RF Transmitter Receiver Module is an effective low-cost solution for using 433 MHz. The TX-ASK is an ASK hybrid transmitter module. TX-ASK is designed by the saw resonator, with an effective low cost, small size and simple to use for designing.


Specifications:

  • Range in open space(Standard Conditions) : 100 Meters
  • RX Receiver Frequency : 433 MHz
  • RX Typical Sensitivity : 105 Dbm
  • RX Supply Current : 3.5 mA
  • RX IF Frequency : 1MHz
  • RX Operating Voltage : 5V
  • TX Frequency Range : 433.92 MHz
  • TX Supply Voltage : 3V ~ 6V
  • TX Out Put Power : 4 ~ 12 Dbm



Features:

  • Low Power Consumption
  • Easy For RF based Application
  • Complete Radio Transmitter
  • Transmit Range Up To 50m
  • CMOS / TTL Input
  • No Adjustable Components
  • Very Stable Operating Frequency
  • Low Current Consumption (Typ 11mA)
  • Wide Operating Voltage
  • ASK Modulation



Applications:

  • Remote Controls
  • Automation System
  • Wireless Security System
  • Sensor Reporting
  • Car Security System
  • Remote Keyless Entry

This hybrid RF Transceiver Module provides a complete RF transmitter and receiver module solution which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source.

The transmitter module is very simple to operate and offers low current consumption (typical. 11mA). Data can be supplied directly from a microprocessor or encoding device, thus keeping the component count down and ensuring a low hardware cost.

The RX – ASK is an ASK Hybrid receiver module. The RF Transmitter Receiver Module is an effective low-cost solution for using 433 MHz. The TX-ASK is an ASK hybrid transmitter module. TX-ASK is designed by the saw resonator, with an effective low cost, small size and simple to use for designing.


Specifications:

  • Range in open space(Standard Conditions) : 100 Meters
  • RX Receiver Frequency : 433 MHz
  • RX Typical Sensitivity : 105 Dbm
  • RX Supply Current : 3.5 mA
  • RX IF Frequency : 1MHz
  • RX Operating Voltage : 5V
  • TX Frequency Range : 433.92 MHz
  • TX Supply Voltage : 3V ~ 6V
  • TX Out Put Power : 4 ~ 12 Dbm



Features:

  • Low Power Consumption
  • Easy For RF based Application
  • Complete Radio Transmitter
  • Transmit Range Up To 50m
  • CMOS / TTL Input
  • No Adjustable Components
  • Very Stable Operating Frequency
  • Low Current Consumption (Typ 11mA)
  • Wide Operating Voltage
  • ASK Modulation



Applications:

  • Remote Controls
  • Automation System
  • Wireless Security System
  • Sensor Reporting
  • Car Security System
  • Remote Keyless Entry
