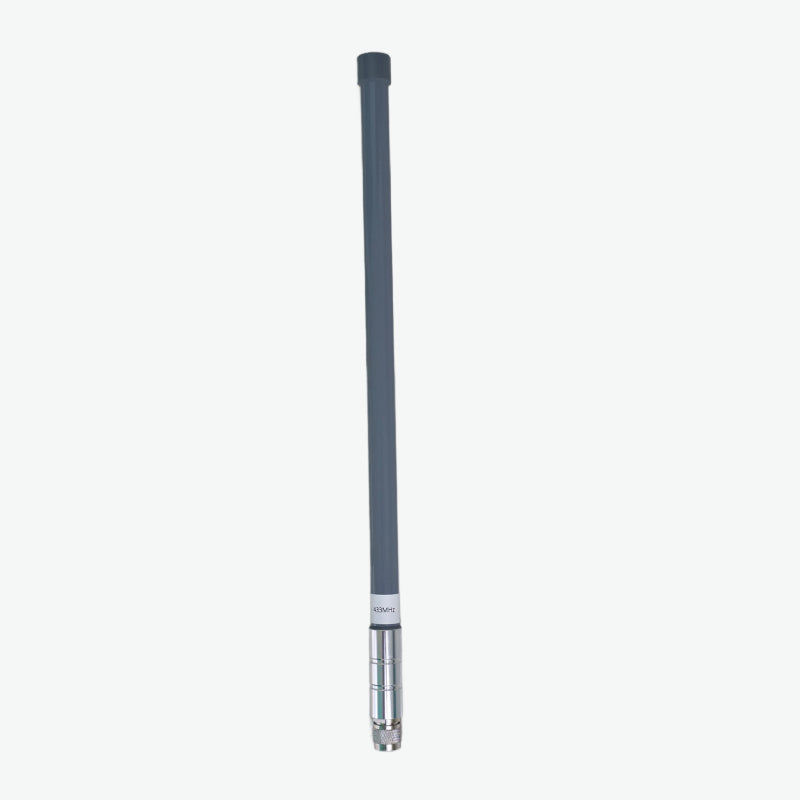

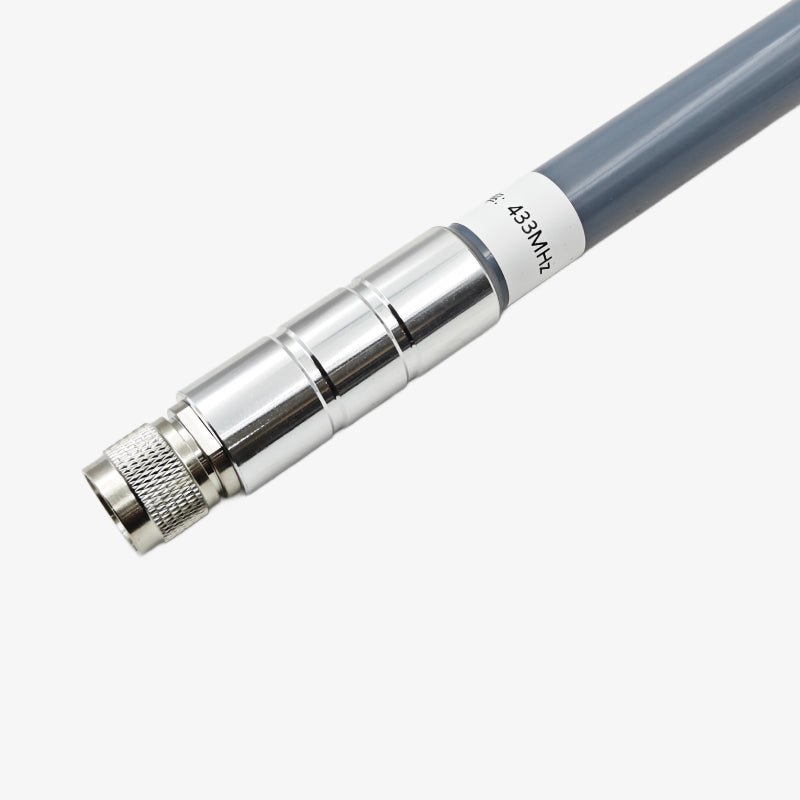

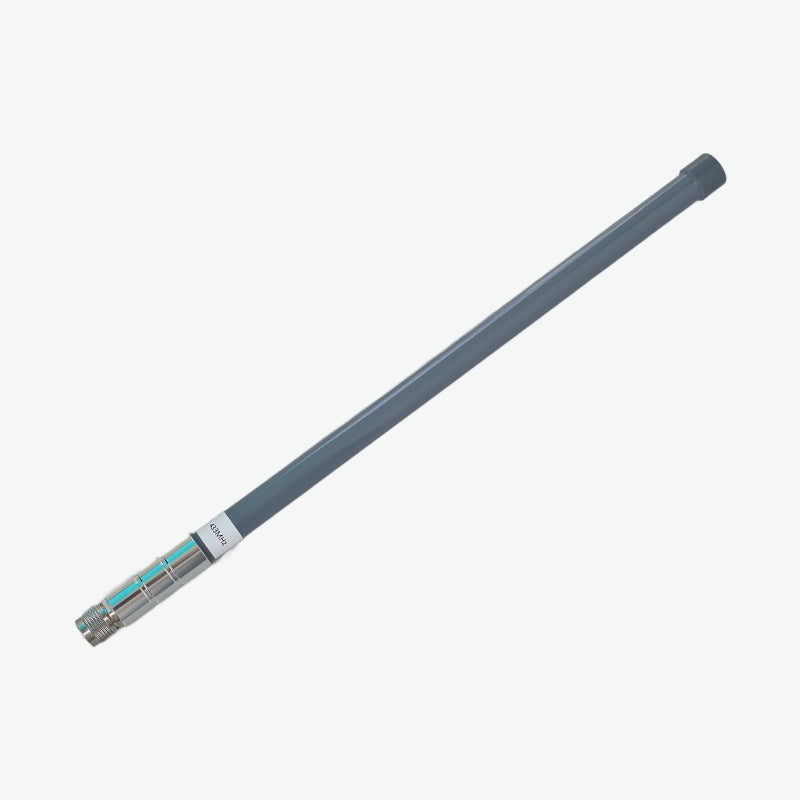

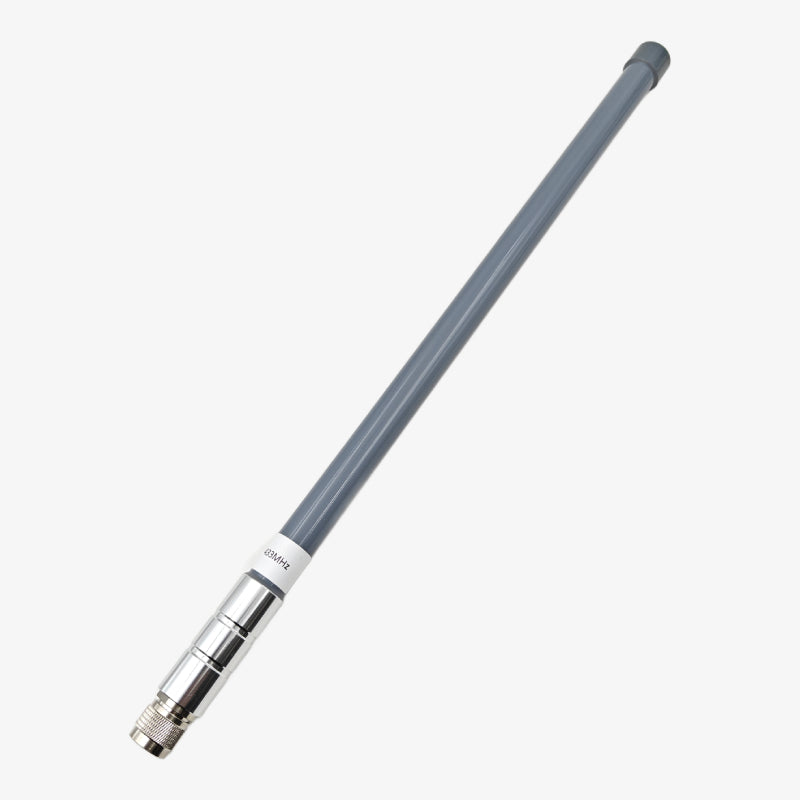

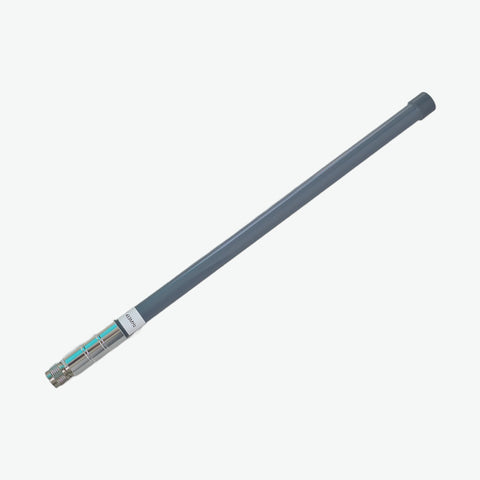

The 433MHz 4.8dBi L480 Fiberglass N-J Antenna - AH1G.501.L480 is a durable and high-performance antenna designed for ISM and LoRa 433MHz communication systems. Its fiberglass housing provides excellent weather resistance and stable signal transmission, making it ideal for remote control, telemetry, and long-range data transfer applications.
Features:
- High-gain 4.8dBi performance ensures extended communication range
- Weatherproof fiberglass body for reliable outdoor operation
- Vertical/omni directional pattern for consistent coverage

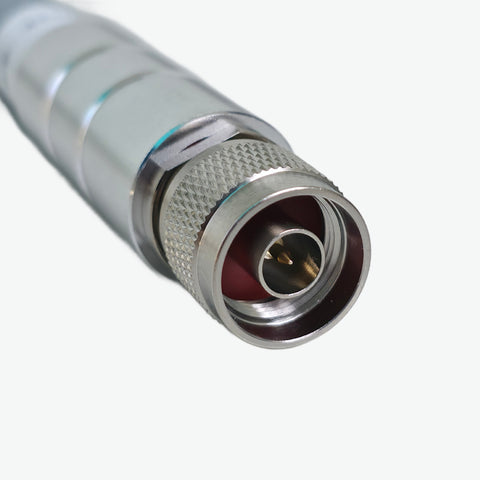

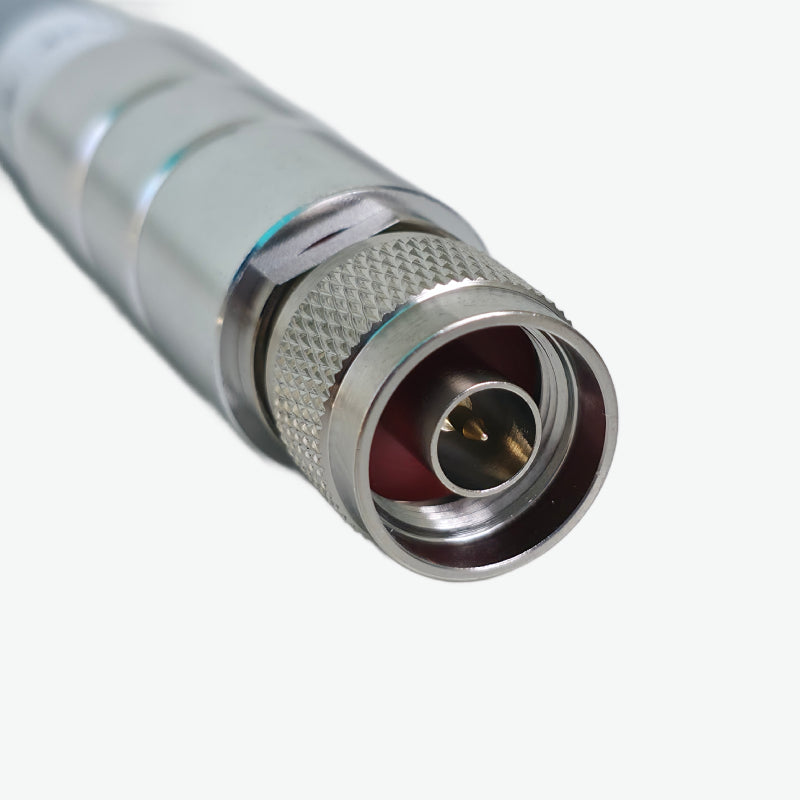

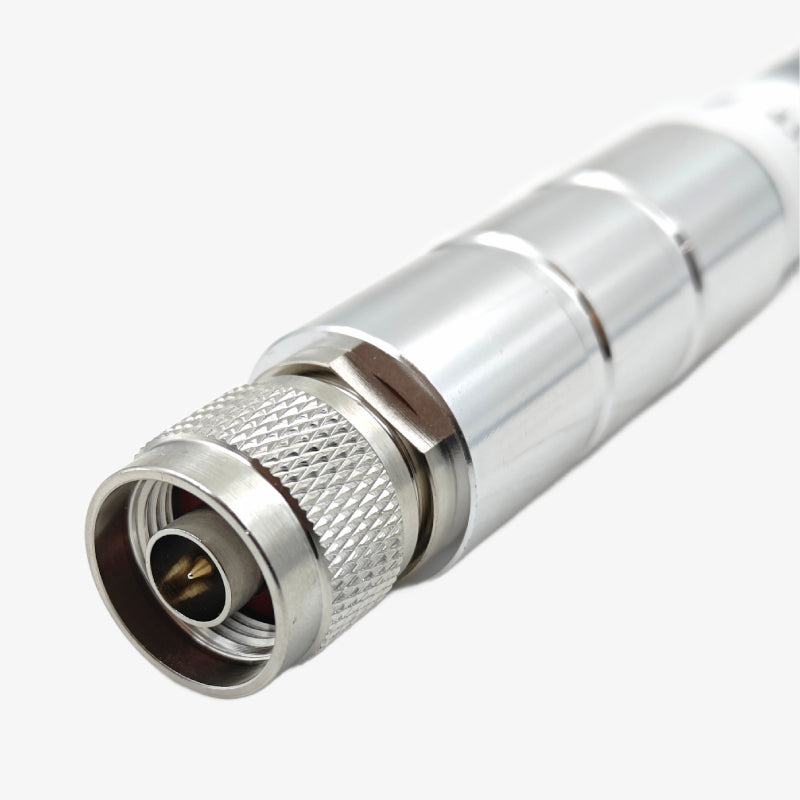

- N-J connector for secure and stable RF connection
Specifications:
- Model: AH1G.501.L480
- Frequency Range: 433 MHz
- Impedance: 50Ω
- VSWR: ≤2.0
- Gain: 4.8 dBi
- Polarization: Vertical / Omni
- Connector Type: N-J
- Material & Color: Copper / Fiberglass
- Mounting Type: External Mount
- Size: 22 × 480 mm
- Weight: 160 g
- Operating Temperature: -40°C to +85°C
Package Includes:
1 x 433MHz 4.8dBi L480 Fiberglass N-J Antenna - AH1G.501.L480
