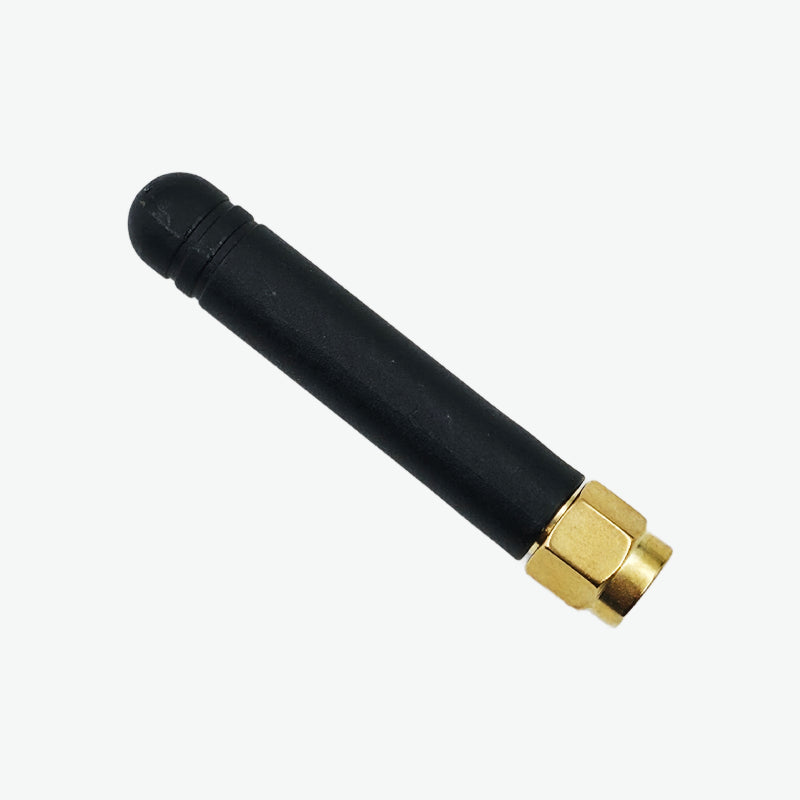

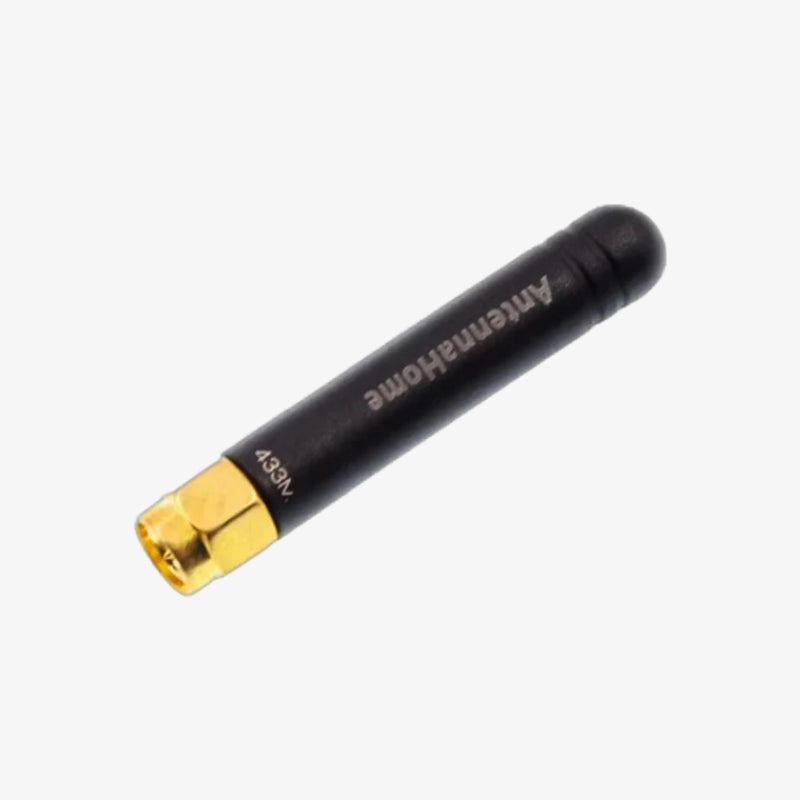

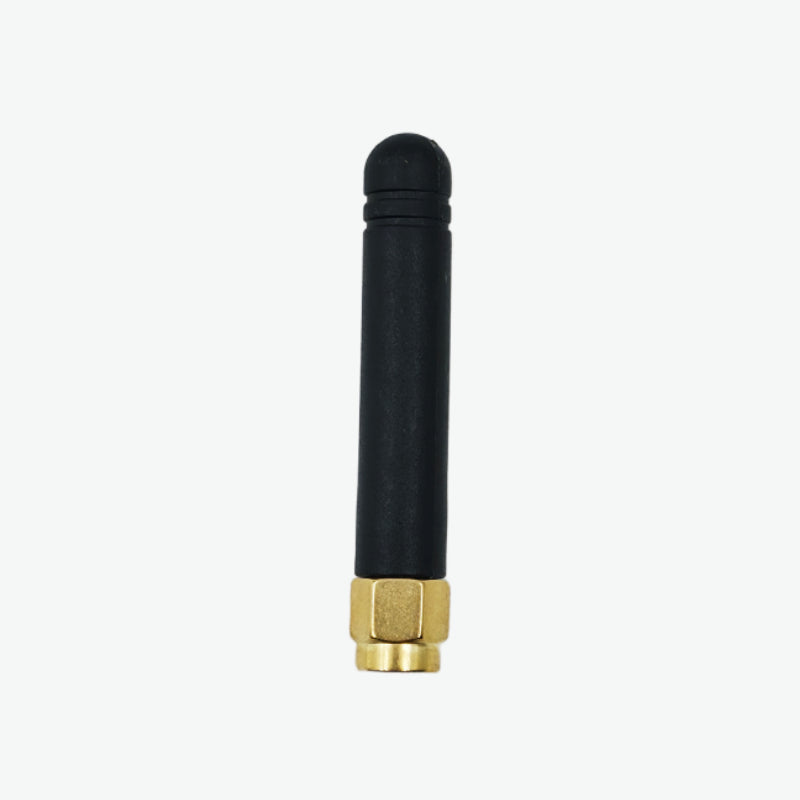

The AntennaHome AH1G.101 433MHz 1.5dBi H50 Rubber SMA-J Antenna is a compact and durable antenna designed for ISM band communication systems. Its rubberized housing and SMA-J connector ensure stable performance and easy installation, making it ideal for LoRa modules, remote control systems, and wireless data transmission applications.
Features:
- Durable rubber antenna design for long-lasting performance
- Optimized for 433MHz ISM band communication
- Provides stable and reliable signal transmission
- Vertical omni-directional radiation pattern for wide coverage

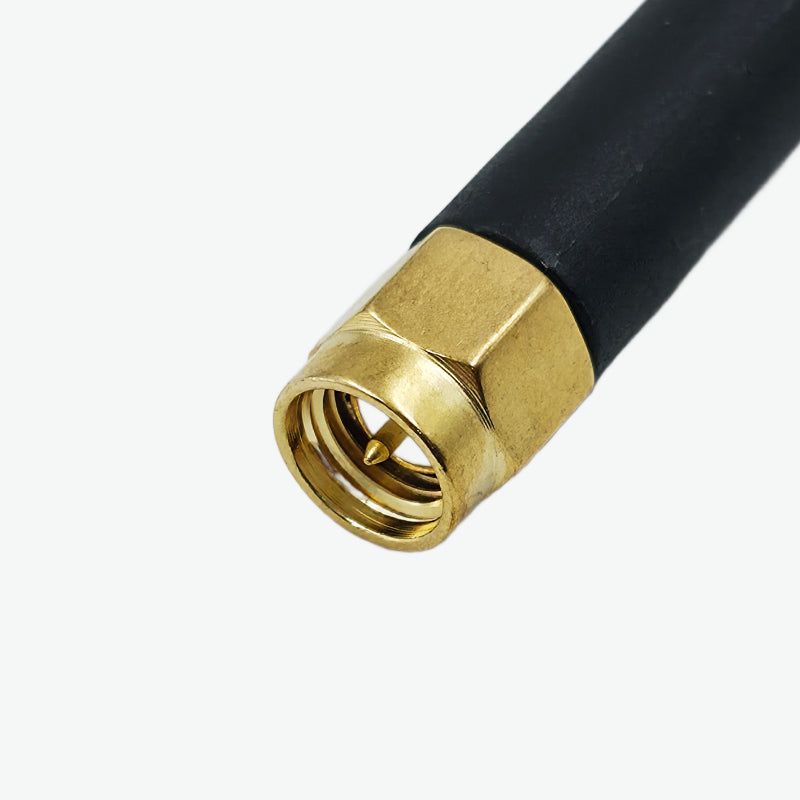

- SMA-J connector for easy and secure mounting
Specifications:
- Model: AH1G.101
- Frequency: 433 MHz
- Impedance: 50Ω
- VSWR: ≤2.5
- Gain: 1.5 dBi
- Polarization: Vertical / Omni
- Mounting Type: SMA Connector
- Connector Type: SMA-J
- Material: Copper / ABS
- Color: Black
- Size: 8 × 50 mm
- Weight: 5 g
- Operating Temperature: -40°C to +85°C
Package Includes:
1 × 433MHz 1.5dBi H50 Rubber SMA-J Antenna
