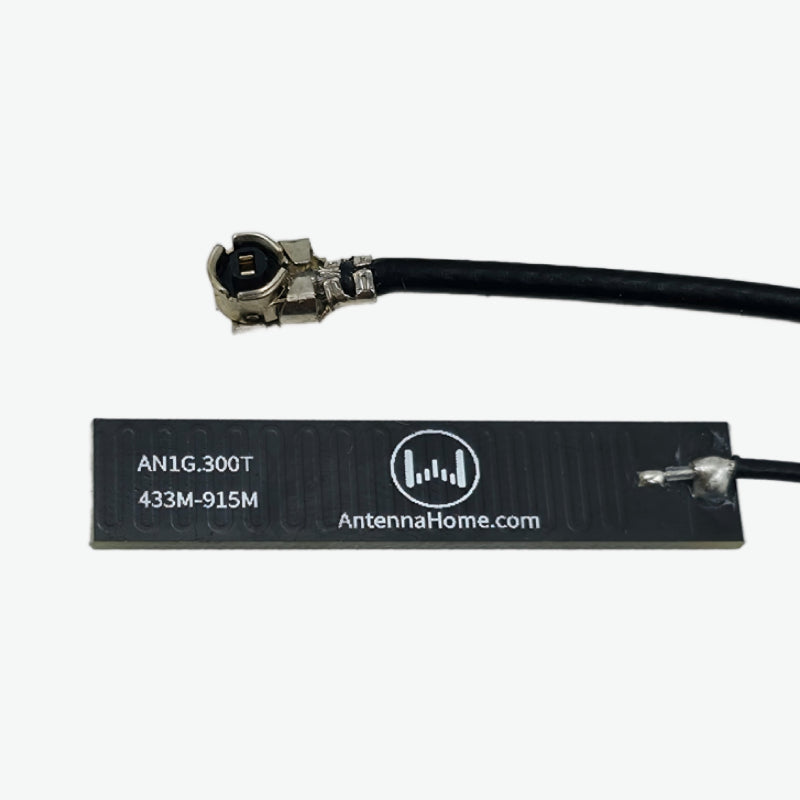

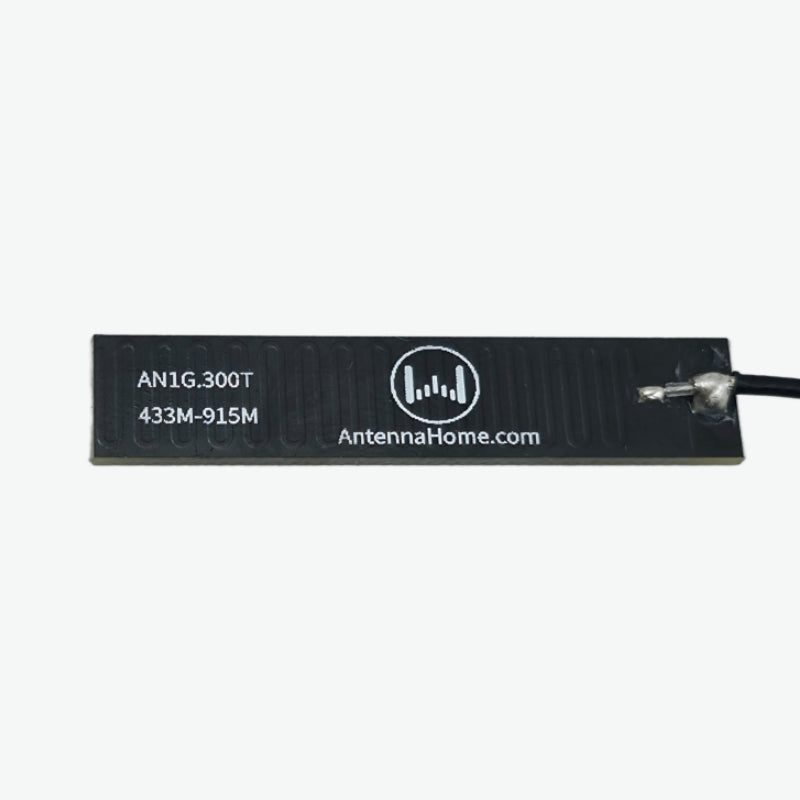

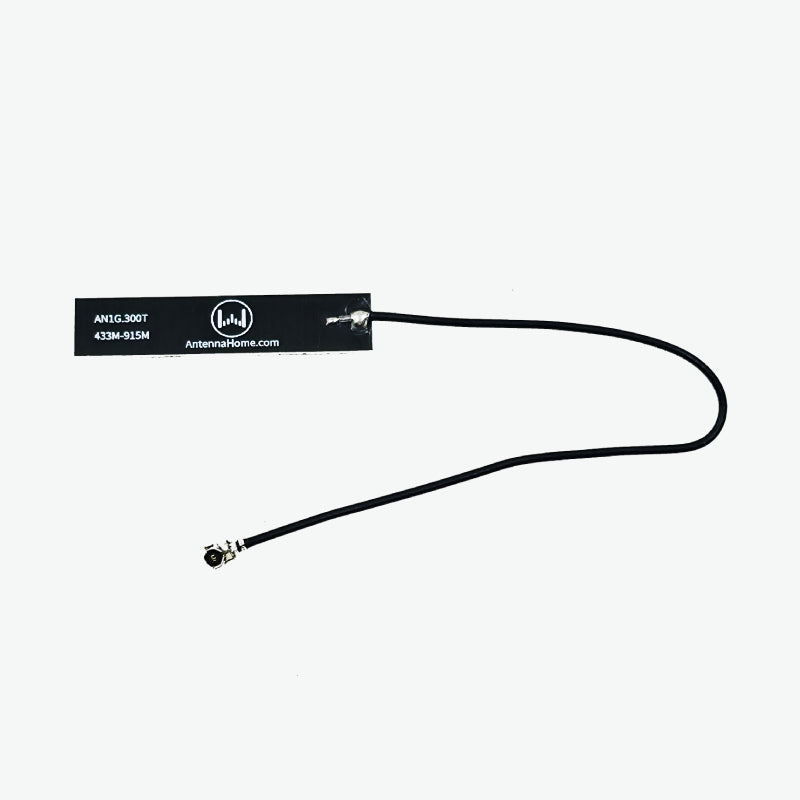

The PCB3608 433/868/915MHz 1.5dBi L120 1.13 Cable IPX Antenna is a compact and lightweight antenna designed for ISM-band wireless communication systems. Its PCB structure ensures efficient signal transmission with minimal interference, making it ideal for LoRa, remote control, wireless receiver, and transfer applications. Note: To achieve optimal performance, a PI matching network is required for tuning to the desired frequency.
Features:
- Stable performance for ISM 433/868/915 MHz and LoRa systems
- Lightweight PCB design for efficient signal transmission
- Omni-directional radiation pattern for broad coverage
- Compact form factor suitable for embedded and IoT devices
Specifications:
- Model: AH1G.300T
- Frequency: 433/868/915 MHz
- Impedance: 50Ω
- VSWR: ≤2.5
- Gain: 1.5 dBi
- Polarization: Vertical / Omni

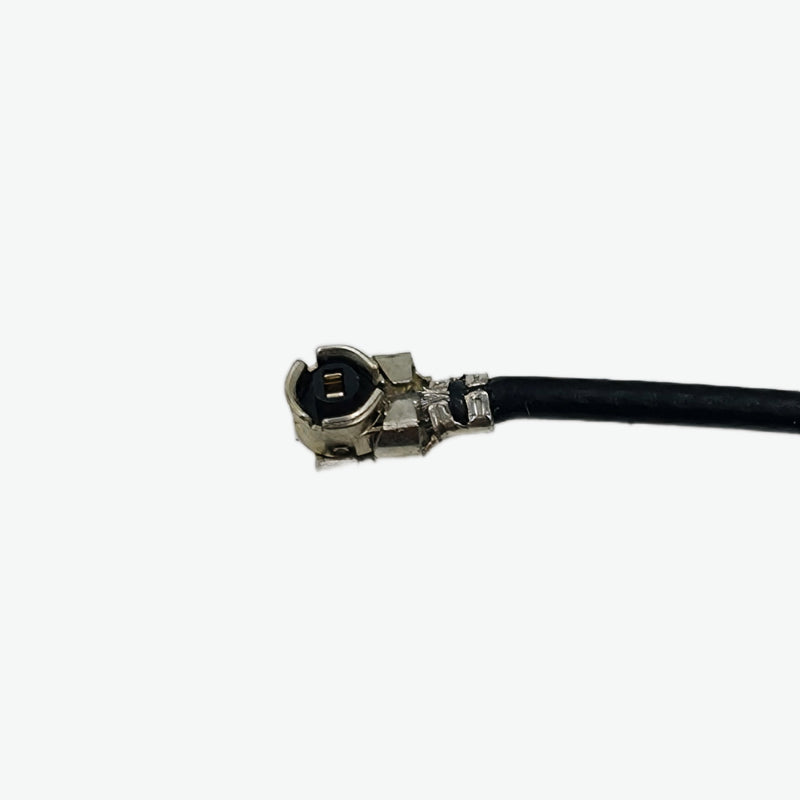

- Mounting Type: IPX connector with 1.13 cable
- Connector & Cable: IPX / 1.13 mm
- Material: Copper / ABS
- Size: 7.5 × 36 × 1.0 mm
- Weight: 1.0 g
- Operating Temperature: -40°C to +85°C
Package Includes:
1 × PCB3608 433/868/915MHz 1.5dBi L120 1.13 Cable IPX Antenna - AH1G.300T
