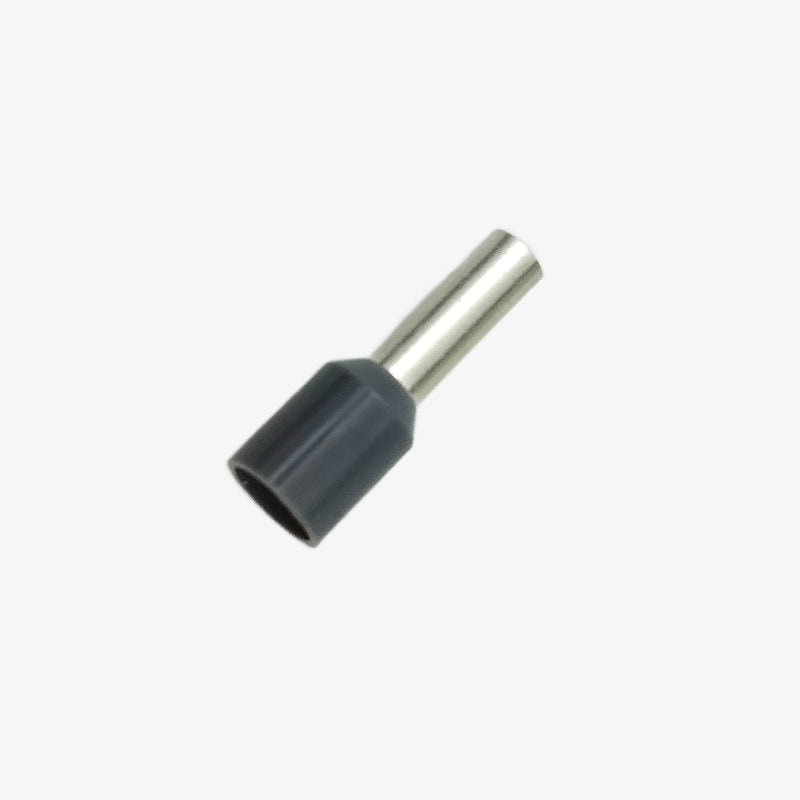

The Insulated Lugs are designed with a pre-insulating coating that allows you to easily plug and unplug the cables.
How are they used?
A wire or cable is stripped to the same length as the terminal and pushed into the correct size ferrule through the collar so that the ends of the wire are flush with the end of the tube. A suitable size cable crimping tool is then used to crimp the metal tube to the wire.
Why are they used?
When the end of a multi strand wire is placed under a screw terminal the strands of the wire will fan out as the screw is tightened. In extreme cases of over-tightening the screw can even sever some of the strands of the wire. This can reduce the quality of the electrical connection and could lead to shorts. Using a bootlace crimp with all the strands captured in the ferrule tube makes for a reliable connection, that is also easier to remove and reinstall without damage to the wire ends.
Features:
- Thermal insulated: The insulated cord end terminals are designed with thermal insulation, which can protect your cable from heat and cold.
- Easy care & durable: The cable end terminals are made of high-quality materials, which is durable and can be used for a long time.
- Small size and light Weight: This cable end terminal is small in size and light in weight, which can be easily put into your pocket or bag.
- Copper material: Using excellent copper material, strong conductivity, long life, users can rest assured.
- Tinned surface: Copper parts are tin-plated, with strong corrosion resistance, good electrical conductivity, and reliable connection.
Specifications:
- Series: E4009
- Size: 4 mm²
- Color: Yellow
- Purity: >99.9%
- Insulation: Nylon 66
- RoHS: Yes
- Bootlace Ferrules or Cord End Terminals
- Temp Range: -40˚C to +105˚C
Package Includes:

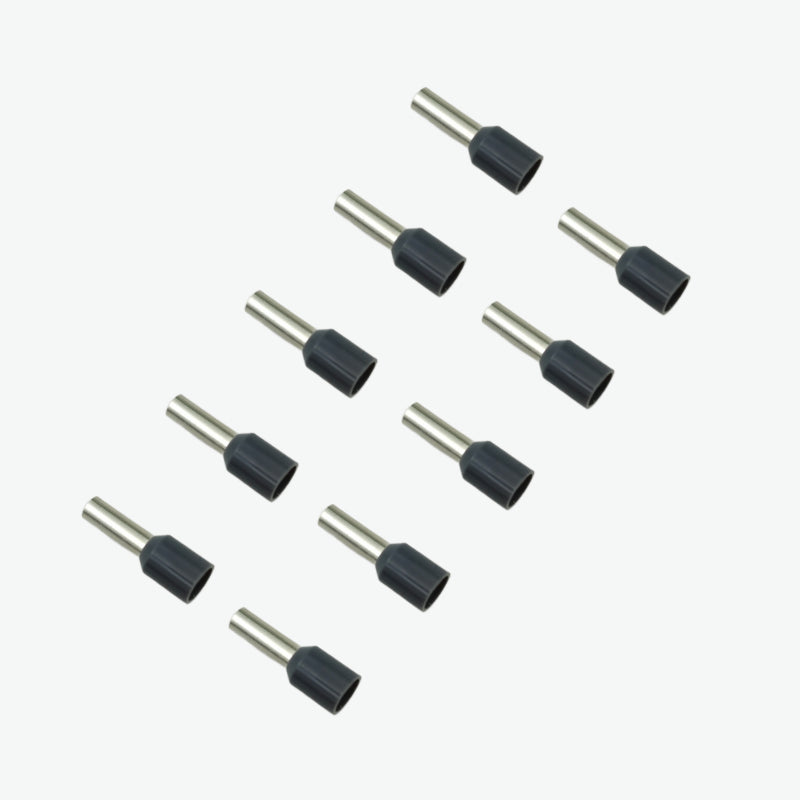

10 Piece of Insulated Ferrule End Terminal Lug - 4 mm²(E4009)
