MP3 Player WMA Decoder Board Module with Remote Control  Power Amplifier Dual Channel
12V Bluetooth 5.0 MP3 Player WMA Decoder Board Module with Remote Control Power Amplifier Dual Channel
12V Bluetooth 5.0 MP3 Player  with Remote Control
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

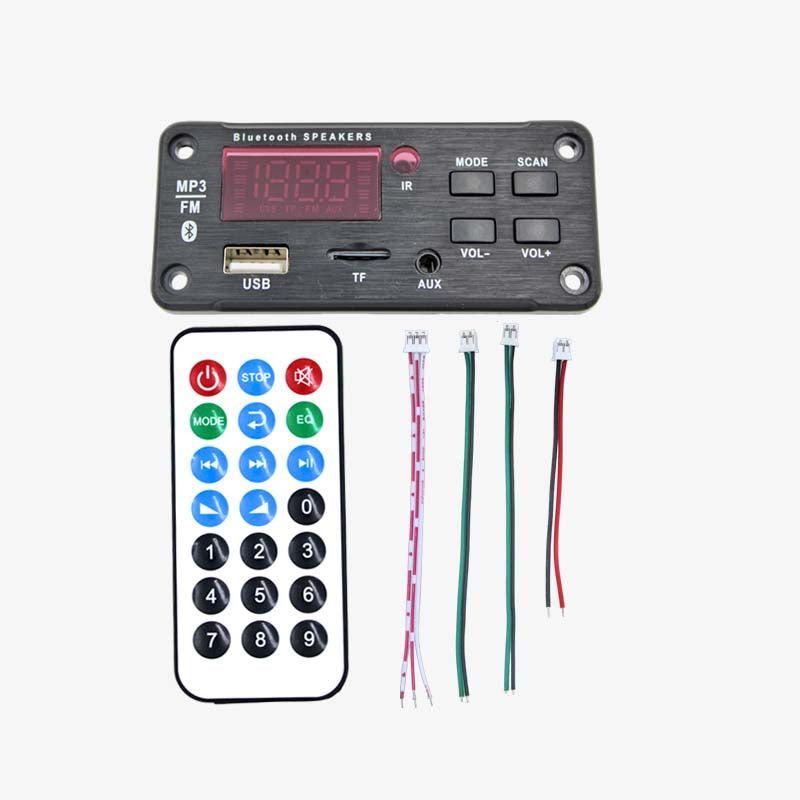

12V Bluetooth 5.0 MP3 Player WMA Decoder Board Module with Remote Control Power Amplifier Dual Channel 25W+25W

17 In stock
Rs. 900.00 Rs. 829.00 (Exc. GST)
Rs. 829.00

This feature-packed module combines advanced Bluetooth technology, versatile input options, and a dual-channel power amplifier to deliver high-quality audio in your car or DIY audio projects. Whether you're streaming music wirelessly, playing MP3/WMA files from a TF card or USB drive, or tuning in to FM radio, this module offers it all. Plus, the included wireless remote ensures convenient control, making it a perfect addition to your audio setup.

  1. Bluetooth Hands-Free Calling: Stay connected while on the go with Bluetooth hands-free calling support, and conveniently control external touch keys.

  2. Folder Selection: Easily select and play music from different categories on your card or USB drive, making it effortless to organize your music collection.

  3. Automatic Source Switching: The module automatically switches between USB, TF, Bluetooth, and FM sources, with voice prompts available (English optional).

  4. Wide Format Compatibility: Play MP3, WMA, and WAV format music, with support for various bitrates (MP3: 32-320kbps, WAV/WMA: 1411kbps or less).

  5. Comprehensive Control: Control functions include switching between sources, skipping tracks, adjusting volume, EQ settings, play/pause, stop, mute, shutdown, and direct song selection.

  6. Bluetooth Playback Control: Conveniently control Bluetooth playback functions, including skip, volume adjustment, play/pause, and mute.

  7. Power and Memory Function: The module remembers the last played song and volume level, enabling a seamless listening experience even after powering off. It also supports breakpoint memory playback.


  • Power supply: DC 9-15V
    • VDD=14.4V; RL=4Ω; PO=27W*2    THD+N≤10%
    • VDD=12V;    RL=3Ω; PO=23.5W*2 THD+N≤10%
    • VDD=12V;    RL=4Ω; PO=20W*2    THD+N≤10%
    • VDD=9V;      RL=4Ω; PO=15W*2    THD+N≤10%

(VDD= DC Supply Voltage; RL= Load Impedance PO= Power output per channel; THD+N=Total harmonic distortion + noise)

  • Output power: >30-60W
  • Rated input: 12V/4A
  • Rated power: <60W
  • Panel interface: USB, TF card, AUX
  • Appearance Size (Dimension): 92*41*20mm


  • USB: Connect USB flash drive (maximum support 32GB)
  • LED Color Screen: Large digital display in red
  • TF: Connect TF memory card (maximum support 32GB)
  • AUX: Audio input interface
  • VOL-: Short press selects the previous song; long press decreases the volume
  • PLAY/PAUSE: Short press switches between pause and play; long press activates FM auto-station scanning
  • VOL+: Short press selects the next song; long press increases the volume
  • MODE: Switch between USB/TF/FM/LINE IN/BLUETOOTH modes

Upgrade your audio setup with this 12V Bluetooth 5.0 MP3 Player Module, complete with a powerful dual-channel power amplifier. Enjoy a diverse range of audio sources, wireless connectivity, and user-friendly remote control. Elevate your audio experience today by adding this versatile module to your setup.

Pinout :


Package Includes:

  • 1x Bluetooth 5.0 12V MP3 WMA Decoder Board

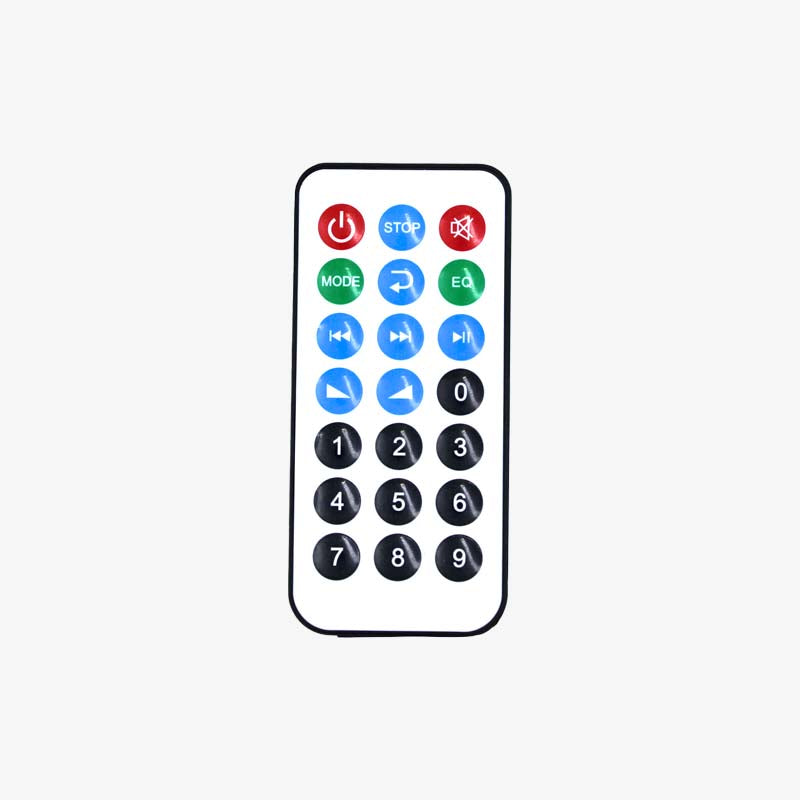

  • 1x Remote Control
  • 3 x Cable
