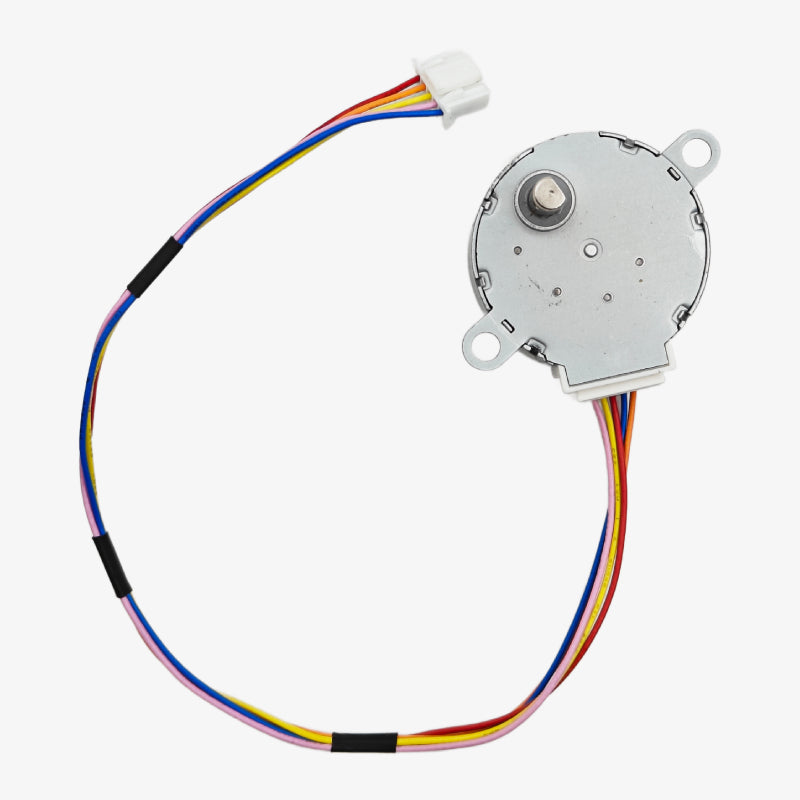

35BYJ46-1182 12V DC Stepper Motor
SKU:
MTR-QC3369
Availability:
120
In Stock
- Rs. 82.00
Rs. 118.00- Rs. 82.00
- Unit price
- per
Subtotal:
Rs. 82.00
Description

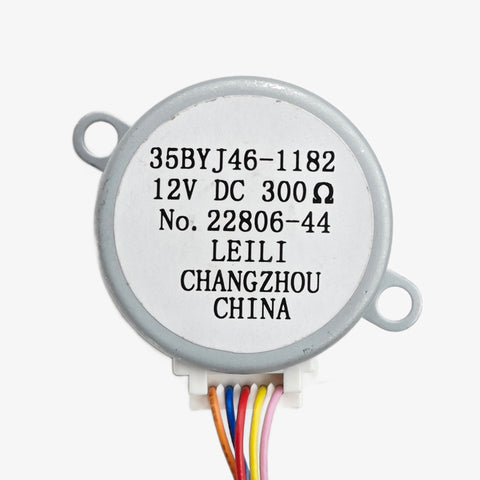

xThe 35BYJ46-1182 is a high-precision stepper motor designed for reliable and efficient performance in a compact form. Operating at 12V DC with a coil resistance of 300Ω, it is ideal for applications that require accurate positioning and smooth motion control. Manufactured by Leili in Changzhou, China, this motor is commonly used in automation systems, robotics, home appliances, and industrial machinery.

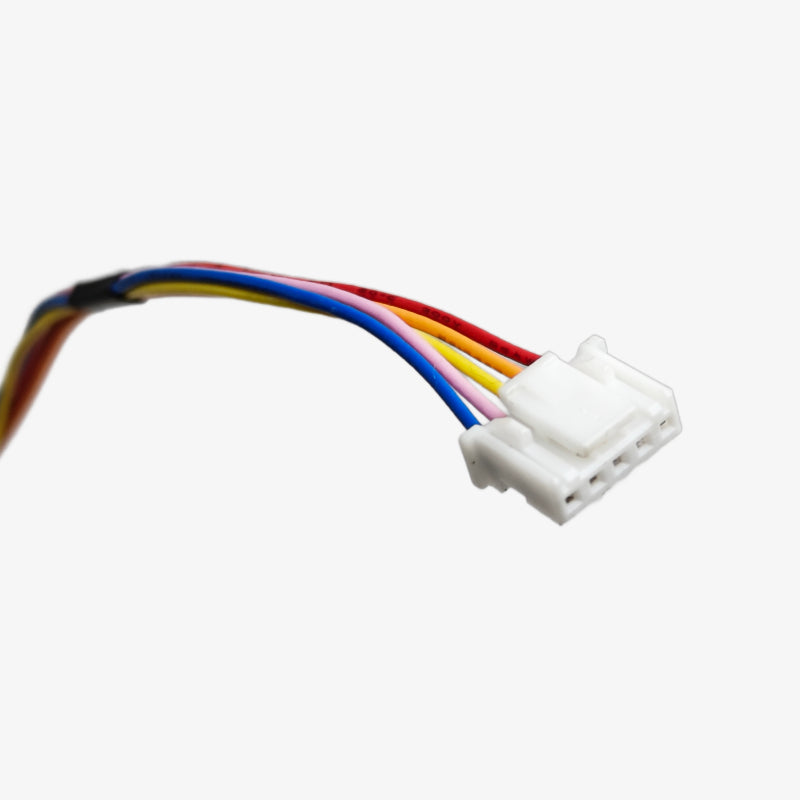

Its 5-wire unipolar configuration and compact size make it perfect for low-power applications, while offering consistent and repeatable movement. The motor includes a convenient mounting flange and comes pre-wired with a 5-pin JST connector for easy integration.
Key Features:
- 12V DC operating voltage
- High-impedance (300Ω) coils for low-power use
- Smooth and accurate step rotation
- Compact and lightweight design
- 5-wire unipolar configuration
- Pre-soldered JST connector for plug-and-play use
- Ideal for robotics, 3D printers, and small automation projects
Specifications:
| Parameter | Value |
|---|---|
| Model | 35BYJ46-1182 |
| Operating Voltage | 12V DC |
| Coil Resistance | 300Ω |
| Configuration | 5-wire unipolar |
| Step Angle | Approx. 5.625°/64 |
| Reduction Ratio | Approx. 1/64 |
| Mounting Holes | 2 flange-type |
| Connector Type | 5-pin JST |
| Shaft Type | Single-side shaft |
| Country of Manufacture | Changzhou, China |
| Manufacturer | Leili |
Package Includes:
1 x 35BYJ46-1182 12V DC Stepper Motor with Pre-attached Wires and JST Connector
