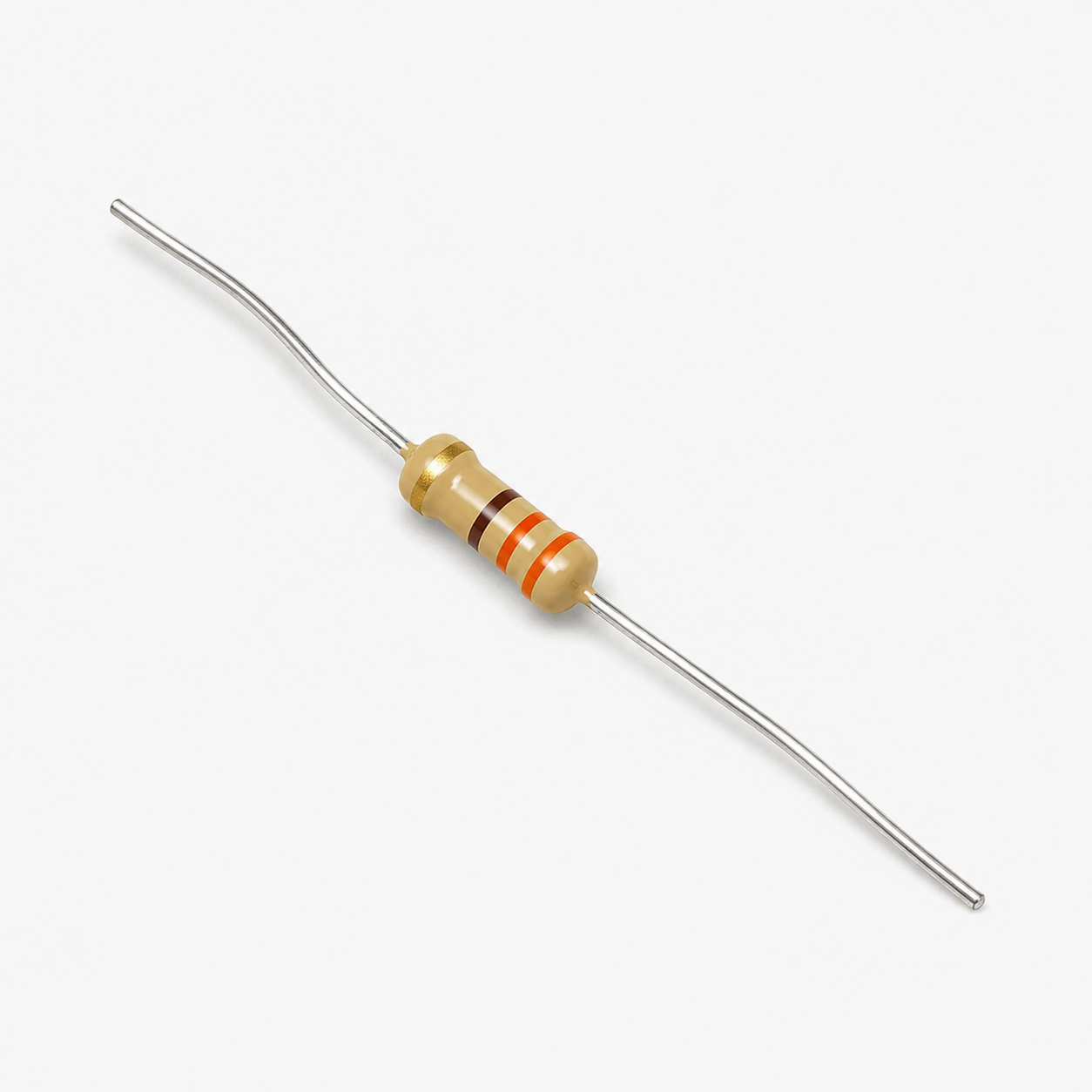

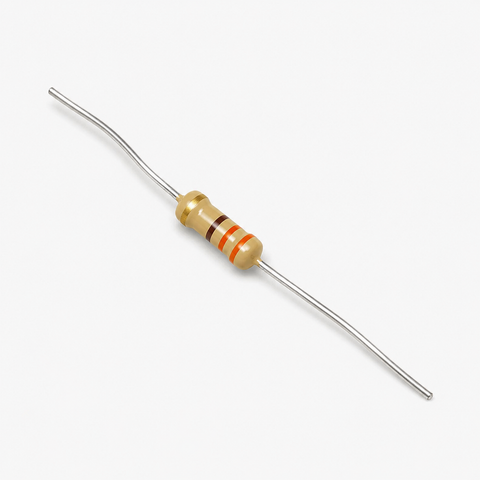

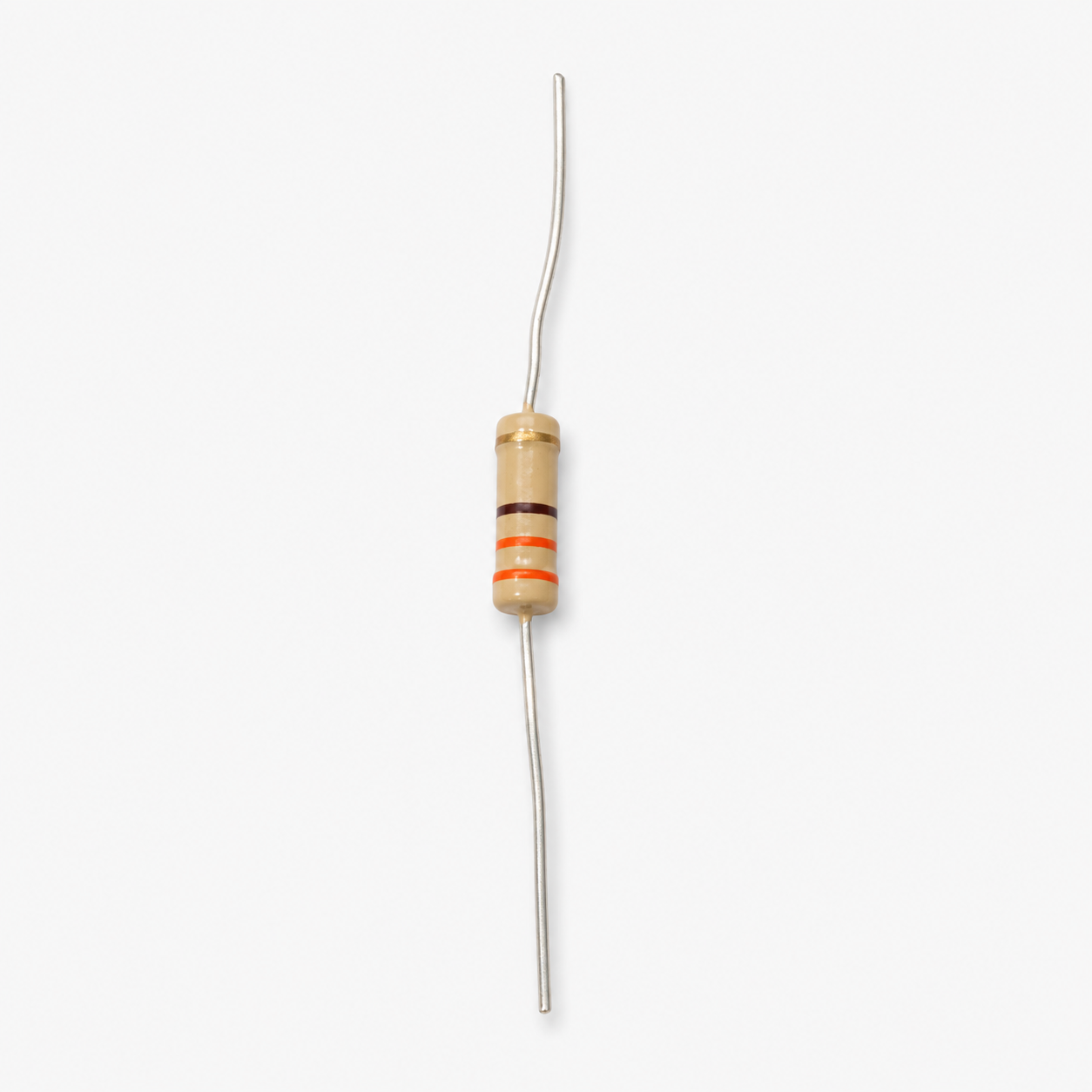

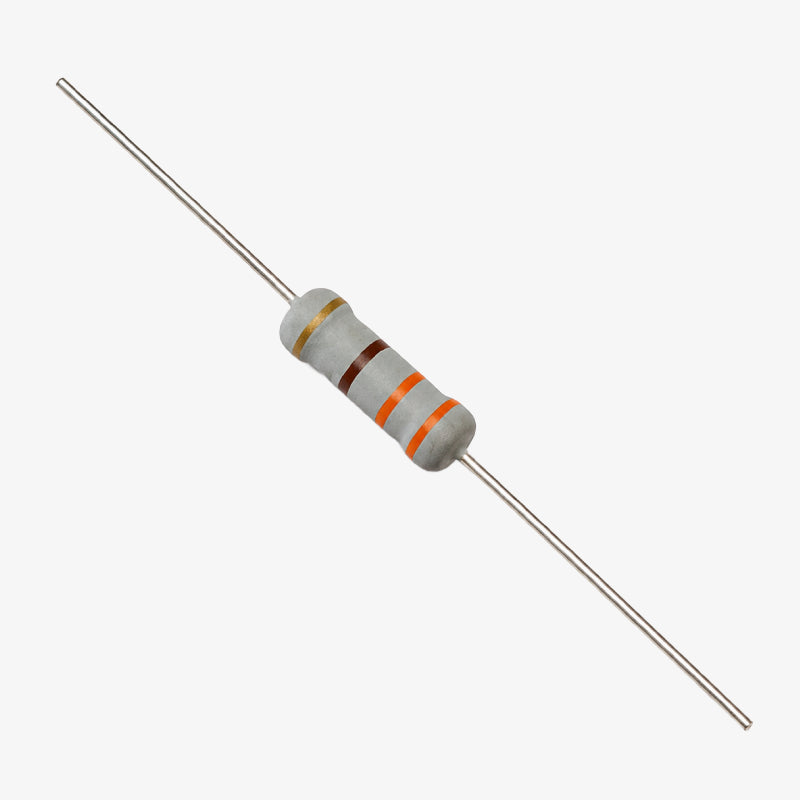

330E ohm 2 Watt Resistor with 5% tolerance
SKU:
CMP-QC6017
Availability:
15
In Stock
-
- Rs. 2.50
- Unit price
- per
Subtotal:
Rs. 2.50
Description
x330Ω 2Watt Resistor with 5% Tolerance is a carbon film through-hole resistor designed for general-purpose electronic circuits. With a resistance value of 330 ohms, 2W power rating, and ±5% tolerance, it is ideal for current limiting, voltage division, pull-up/pull-down networks, signal conditioning, and DIY electronics projects.
330E, 1/4 Watt Resistor with 5% tolerance Datasheet
Features:
- 330Ω Resistance Value
- 2W Power Rating
- ±5% Resistance Tolerance
- Carbon Film Construction
- Axial Through-Hole Design
- Stable Electrical Performance
- Low Noise Operation
- Flame-Retardant Coating
- Suitable for Breadboards and PCB Mounting
- RoHS Compliant
- Ideal for DIY, Educational, and Electronic Repair Projects
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Carbon Film Resistor |
| Resistance | 330Ω |
| Power Rating | 2 W |
| Tolerance | ±5% |
| Resistor Type | Fixed Resistor |
| Construction | Carbon Film |
| Temperature Coefficient | ±350ppm/°C (Typical) |
| Maximum Working Voltage | 250V |
| Maximum Overload Voltage | 500V |
| Mounting Type | Through Hole (THT) |
| Lead Type | Axial |
| Operating Temperature | -55°C to +155°C |
| Compliance | RoHS |
| Pack Quantity | 1 pc |
Also Check These Out:
22 Ohm 1/4 Watt Resistor with 1% Tolerance (Pack of 10)
680 ohm, 1/4 Watt Resistor with 5% tolerance (Pack of 10)
240 ohm, 1/4 Watt Resistor with 5% tolerance (Pack of 10)
6.8K ohm, 1/4 Watt Resistor with 5% tolerance (Pack of 10)
Package Includes:
15 x 330Ω 1/4 Watt Resistor with 5% Tolerance
