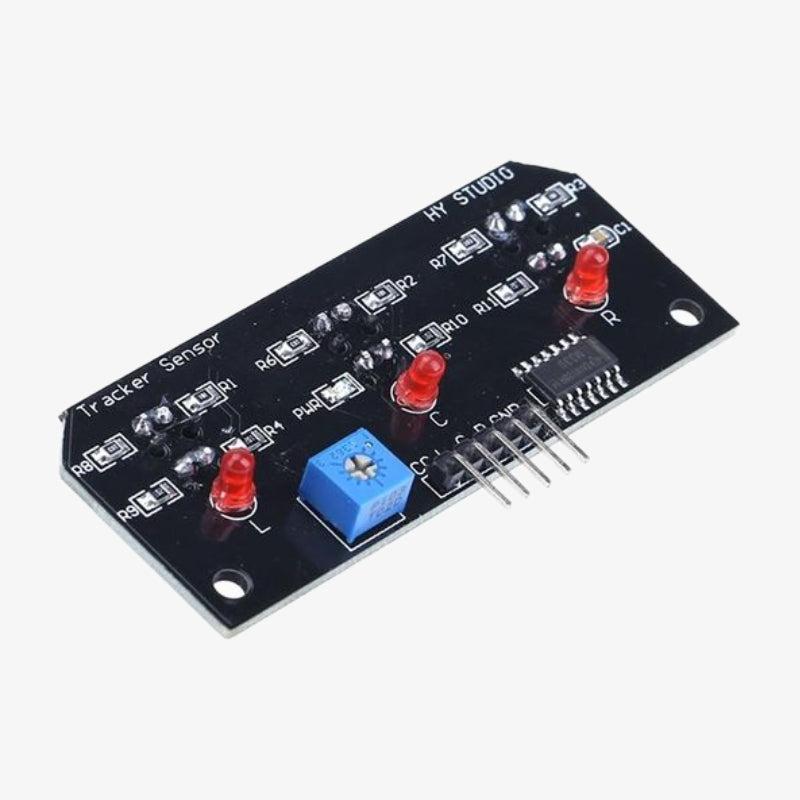

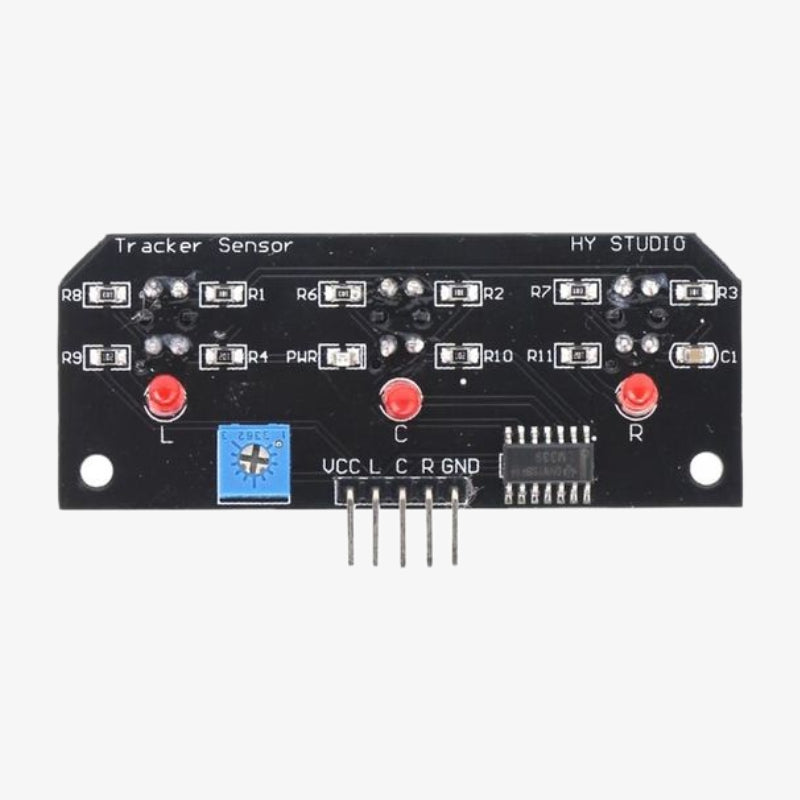

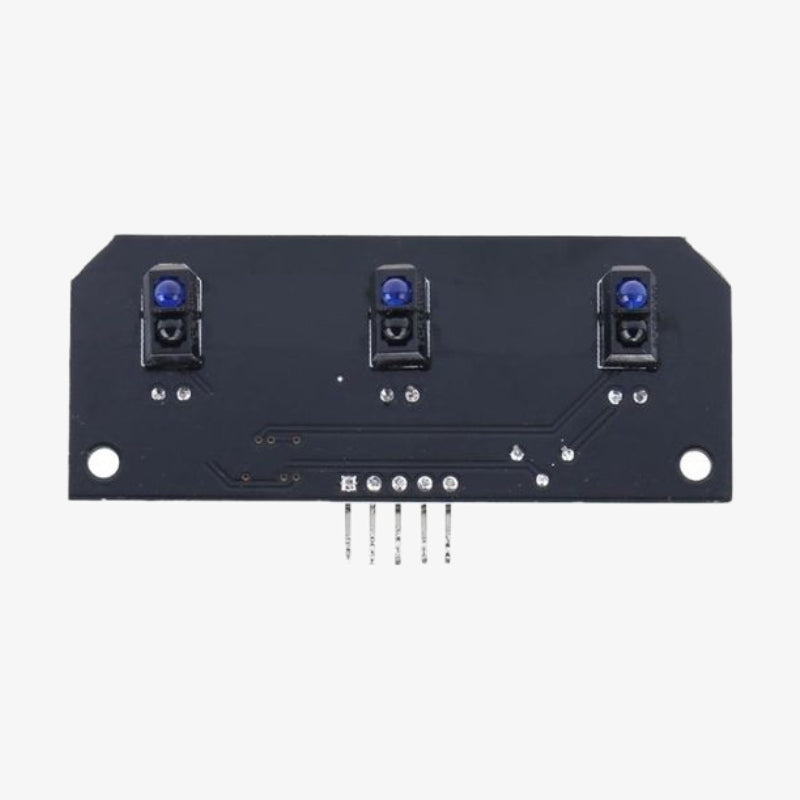

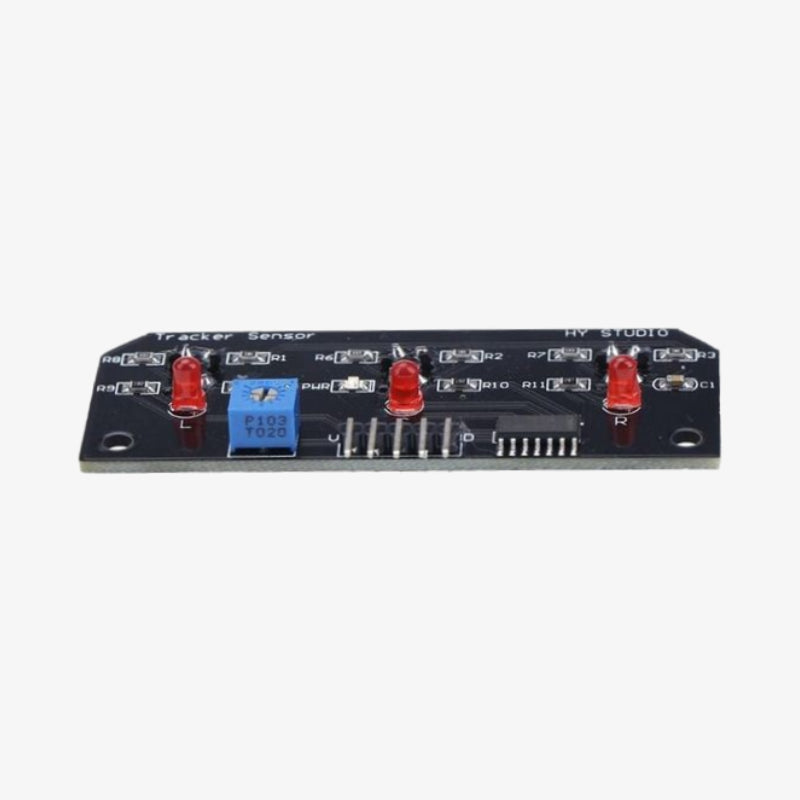

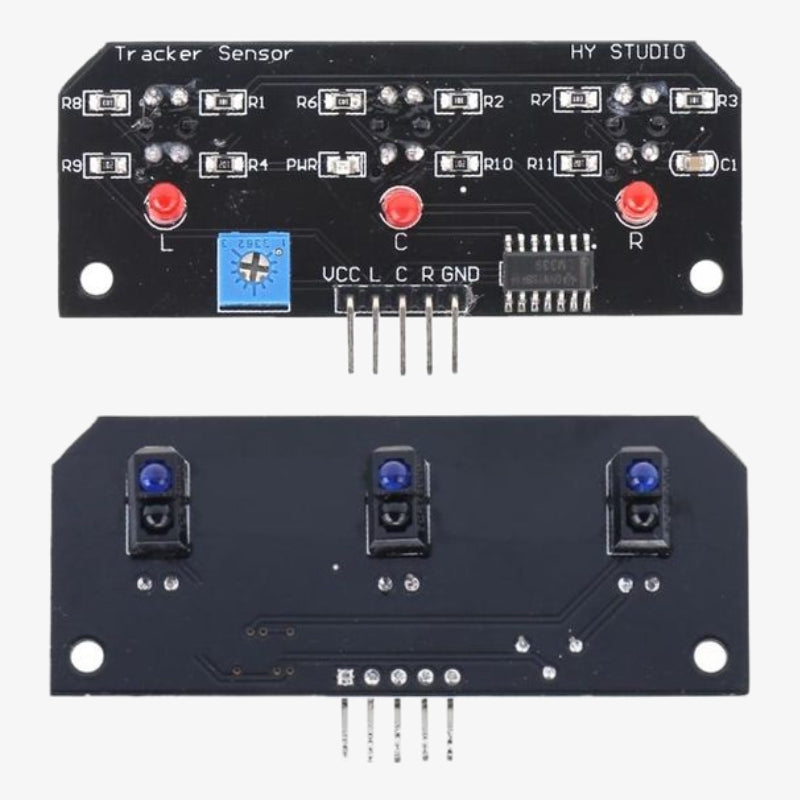

The 3 Channel Path Tracing Module is a reflective infrared sensor module designed for line following, path detection, and edge sensing applications. Equipped with three independent IR emitter–receiver pairs, it can accurately detect black/white contrast and guide robots or automated vehicles along a predefined path. The module provides stable digital outputs and is ideal for robotics competitions, DIY robots, educational STEM projects, and automation systems requiring multi-point line tracking.
Features:
- 3 independent IR sensing channels for accurate path detection
- Stable digital output signals for easy microcontroller interfacing
- High sensitivity to black/white surface contrast
- Adjustable detection threshold (potentiometer, on compatible versions)
- Suitable for line-following robots and automated guided systems
- Compact and lightweight PCB design
- Compatible with Arduino, ESP32, Raspberry Pi, and robotic controllers
Specifications:
- Sensor Type: IR reflective sensors (3-channel)
- Output Type: Digital (HIGH/LOW for each channel)
- Operating Voltage: 3.3V – 5V
- Detection Range: Typically 0.5 – 3 cm (surface dependent)
- Sensitivity: Adjustable (versions with onboard potentiometers)
- Indicators: Onboard signal LEDs for each channel
- Interface: 3 digital outputs + VCC + GND
- Dimensions: Compact module size
- Applications: Line-following robots, path tracing, edge detection, AGV systems, DIY robotics
Package Includes:
1 × 3-Channel IR Line Tracking & Path Detection Sensor Module
