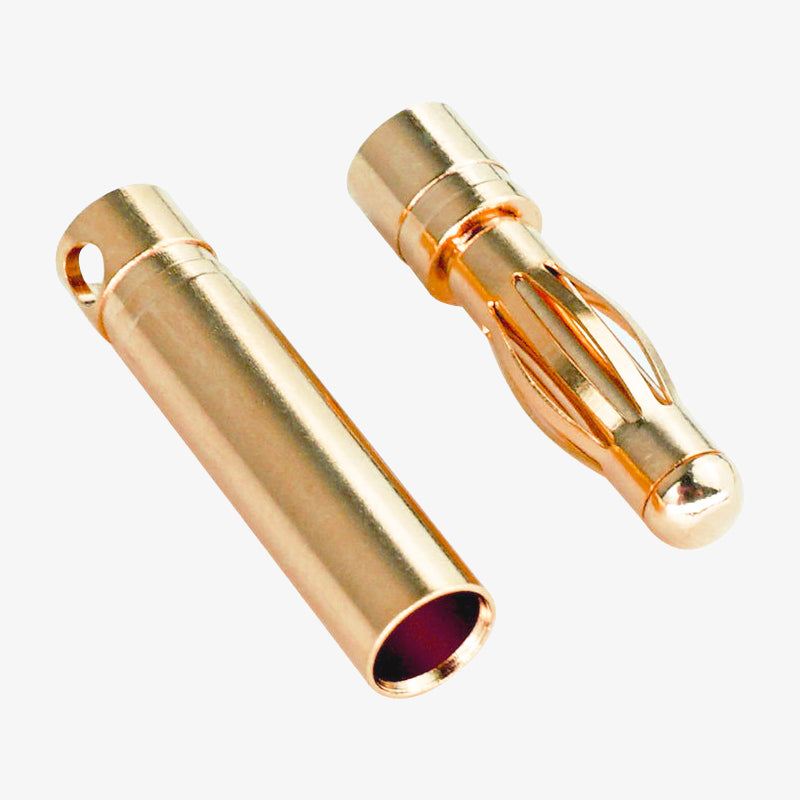

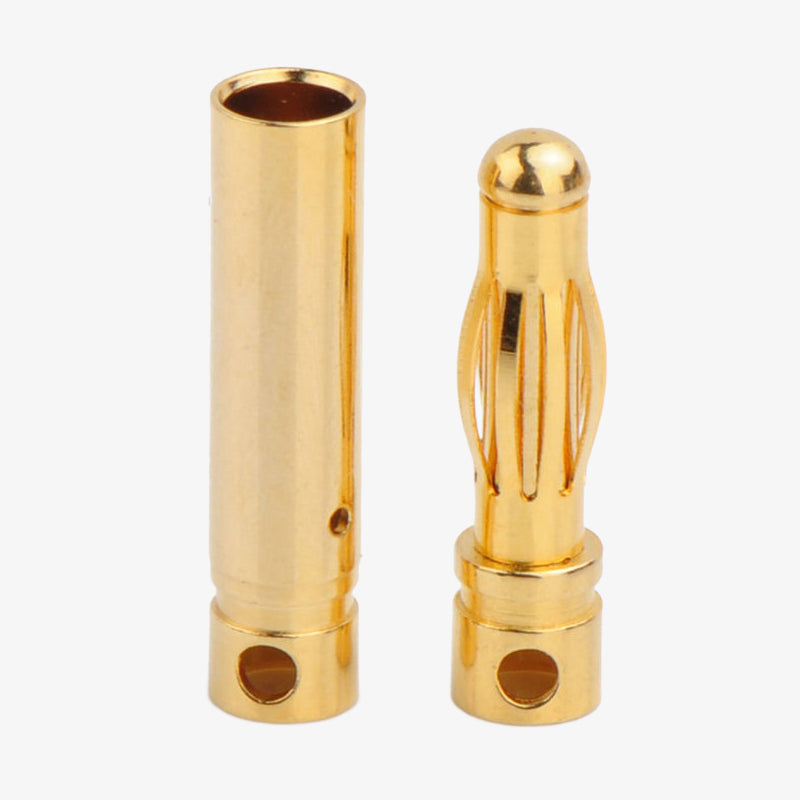

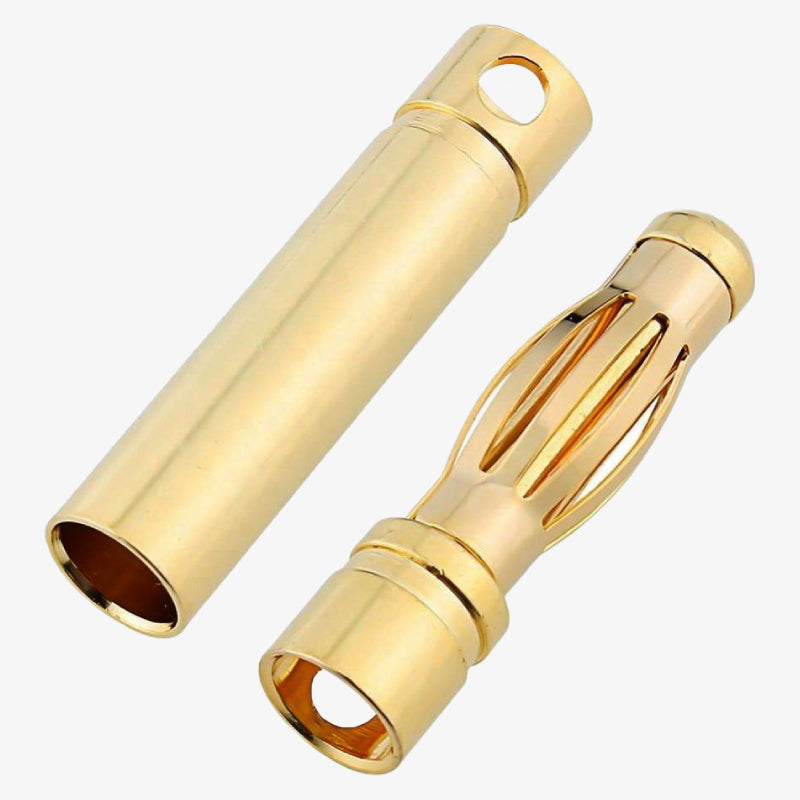

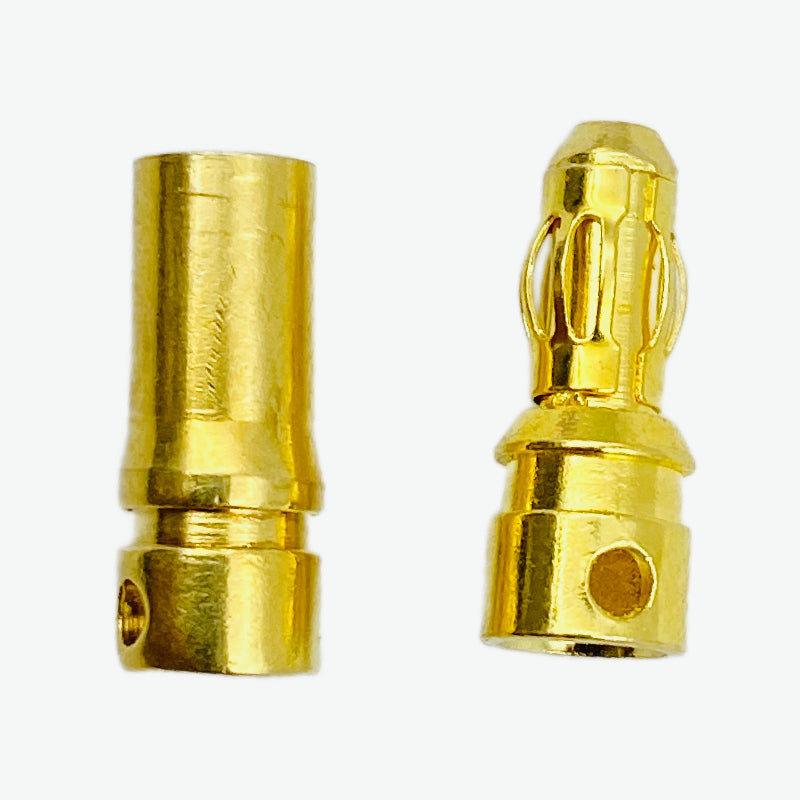

3.5mm Bullet Connector - Male and Female Pair

The 3.5mm Bullet Connector Pair is designed for secure, high-current electrical connections commonly used in RC vehicles, battery packs, ESCs, drones, and DIY power wiring. The connectors provide a firm, low-resistance contact and are easy to solder, offering reliable performance in high-vibration environments. With gold-plated terminals, these connectors ensure excellent conductivity and long-term corrosion resistance.

Features:

1. 3.5mm male and female bullet connector pairing
2. Gold-plated contacts for low resistance and high conductivity
3. Strong friction-fit connection prevents accidental disconnection
4. High-current capability suitable for motors, ESCs, and battery systems
5. Easy-to-solder design for secure wiring
6. Ideal for RC models, drones, robotics, and DIY power projects

Specifications:

• Connector Type: Bullet Connector (Male + Female)
• Size: 3.5mm
• Material: Brass with gold plating
• Current Rating: Typically 30A – 60A (varies by application)
• Operating Voltage: Dependent on system (commonly 7.4V–22.2V for RC use)
• Contact Resistance: Low, due to gold-plated surface
• Wire Compatibility: 12–16 AWG (typical)
• Connection Type: Solder type
• Temperature Resistance: –20°C to +120°C
• Applications: RC drones, ESC connections, motor wiring, battery packs, robotics, power distribution

Package Includes:

1 × 3.5mm Bullet Connector - Male and Female Pair
