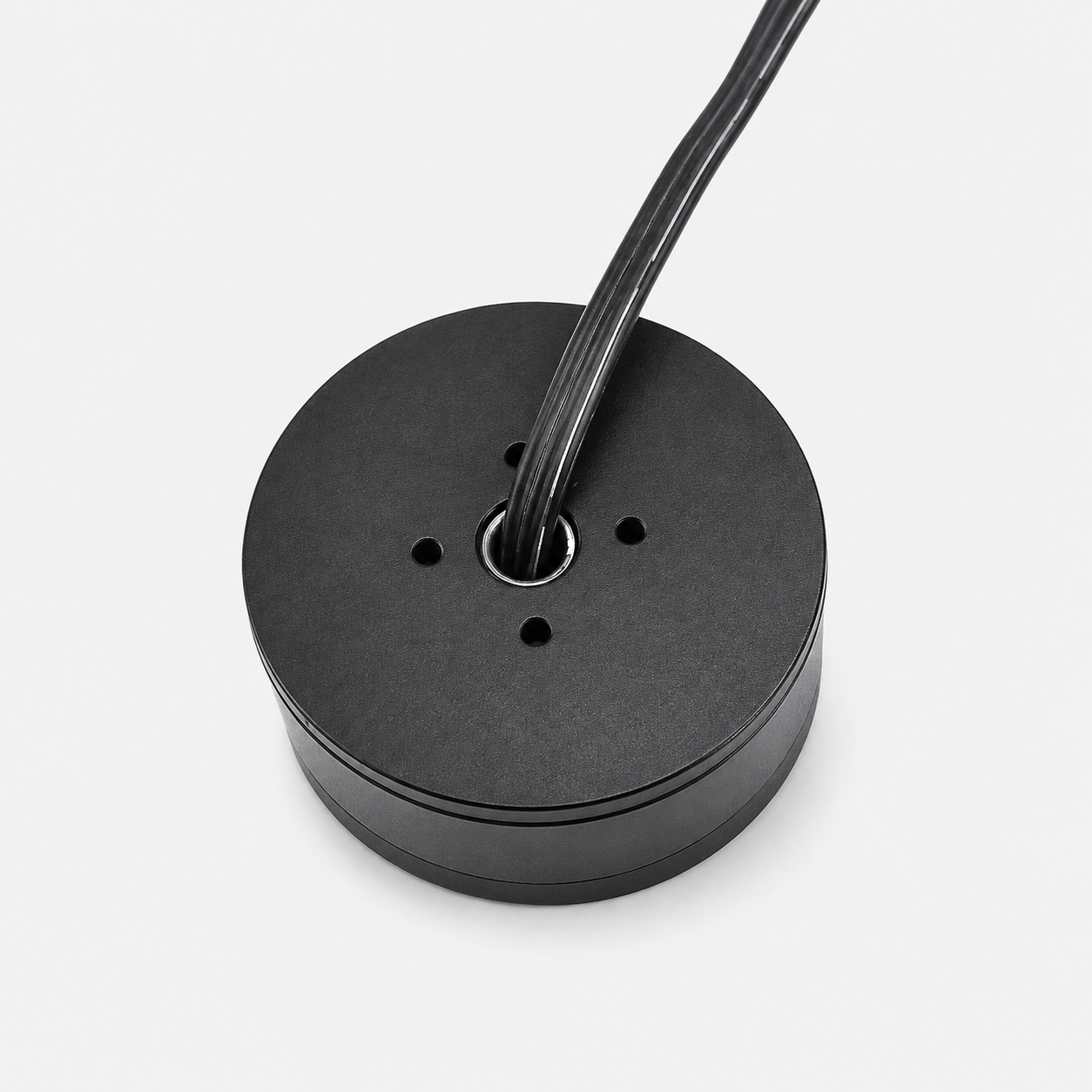

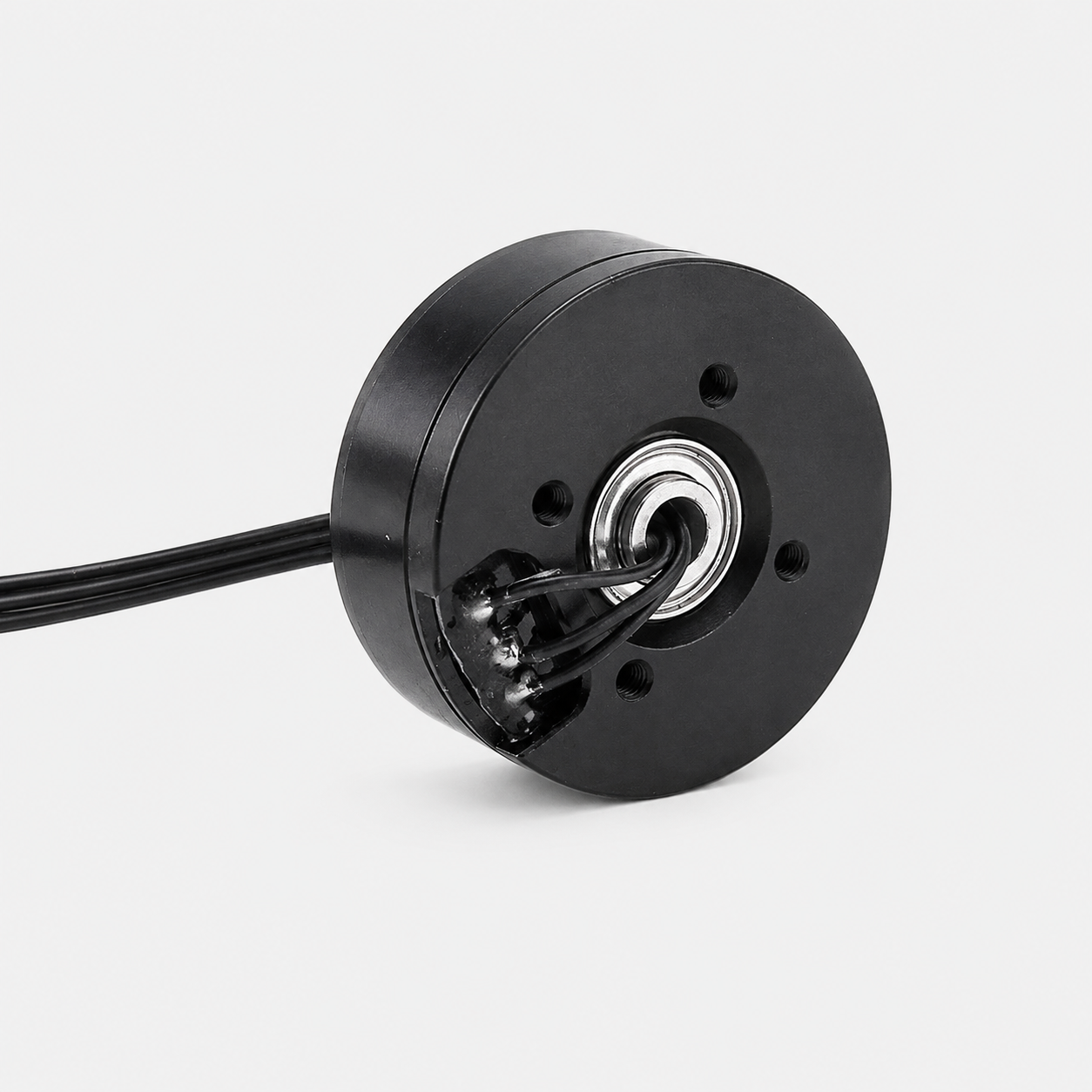

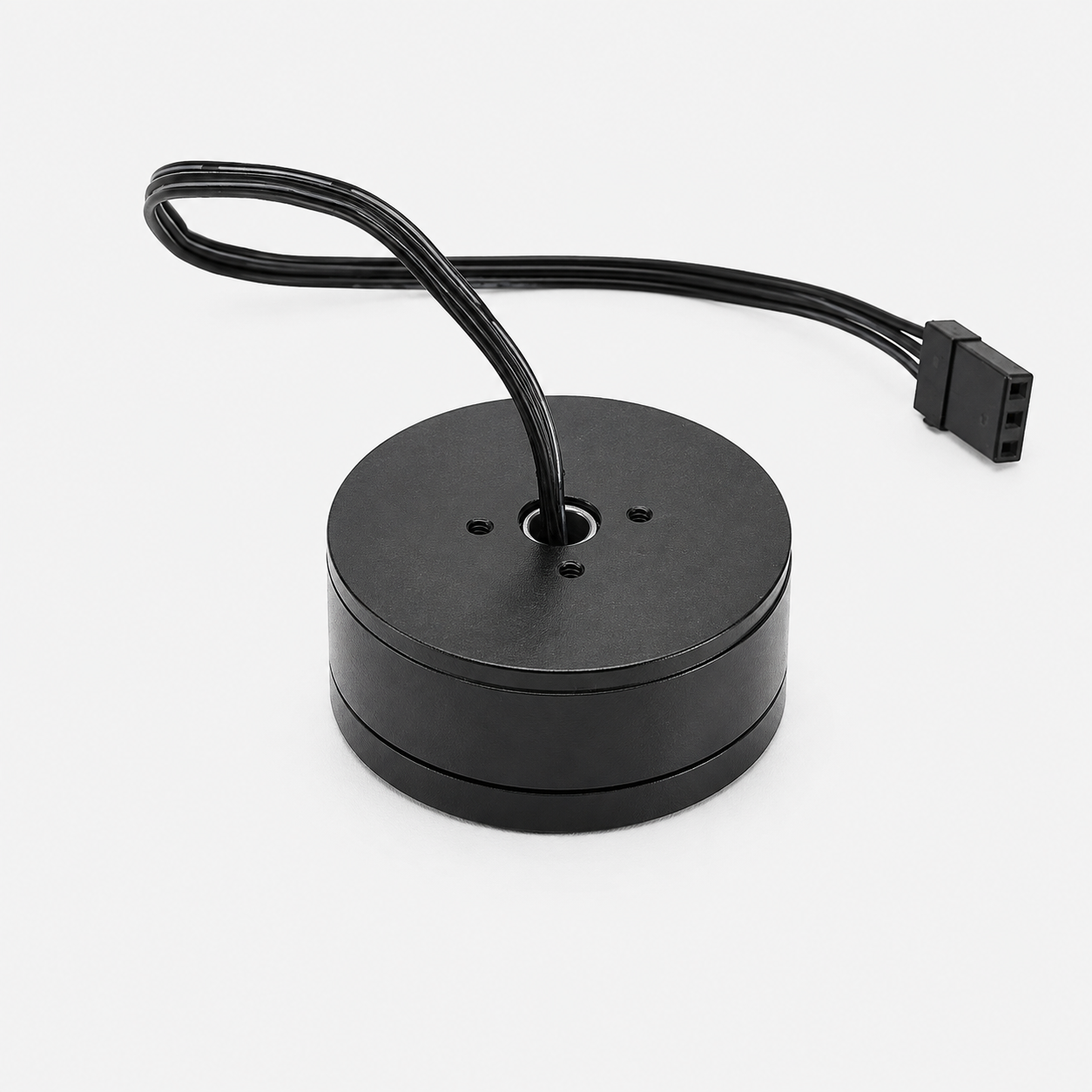

2804 140KV Brushless Motor for 2-Axis Gimbal Camera
SKU:
MTR-QC6076
Availability:
4
In Stock
-
- Rs. 1,085.00
- Unit price
- per
Subtotal:
Rs. 1,085.00
Description
x2804 140KV Brushless Motor for 2-Axis Gimbal Camera is a high-precision brushless outrunner motor designed for smooth camera stabilization in 2-axis and lightweight 3-axis gimbal systems. With a low 140KV rating, it delivers high torque at low speeds for precise and vibration-free movement, making it ideal for aerial photography, action cameras, FPV systems, and DIY camera stabilization projects.
Features:
- Low KV brushless motor optimized for camera stabilization.
- High torque output for smooth and accurate gimbal control.
- Designed for 2-axis and lightweight 3-axis gimbal systems.
- Precision-balanced rotor for minimal vibration.
- High-quality ball bearings for reliable and quiet operation.
- Lightweight aluminum alloy construction.
- Low cogging torque for ultra-smooth movement.
- Compatible with most brushless gimbal controllers.
- Easy installation with standard mounting pattern.
- Ideal for drones, handheld gimbals, action cameras, and aerial photography.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Brushless Gimbal Motor |
| Model | 2804 |
| KV Rating | 140KV |
| Motor Type | Brushless Outrunner |
| Stator Size | 28 × 4mm |
| Number of Phases | 3 |
| Number of Poles | 14 |
| Operating Voltage | 7.4V – 12V DC (2S–3S LiPo) |
| Rated Current | ≤1A |
| Rated Power | 10W |
| Shaft Type | Hollow Shaft |
| Shaft Diameter | 4mm |
| Motor Diameter | 35mm |
| Motor Height | 20mm |
| Bearing Type | Dual Precision Ball Bearings |
| Housing Material | Aluminum Alloy |
| Weight | Approximately 48g |
| Compatible Controllers | SimpleBGC, Storm32, AlexMos, BaseCam and Other Brushless Gimbal Controllers |
| Applications | Camera Gimbals, UAVs, FPV Systems, Aerial Photography, Action Cameras, Handheld Stabilizers, DIY Camera Projects |
Also Check These Out:
5010 750KV High Torque Brushless Motor for Drone
RS2205 2300KV Brushless High Speed DC Motor for Drone (CW)
RS2205 2300KV Brushless High Speed DC Motor for Drone (CCW)
RS2205 2700KV Brushless High Speed DC Motor for Drone (CCW)
Package Includes:
1 × 2804 140KV Brushless Motor for 2-Axis Gimbal Camera
