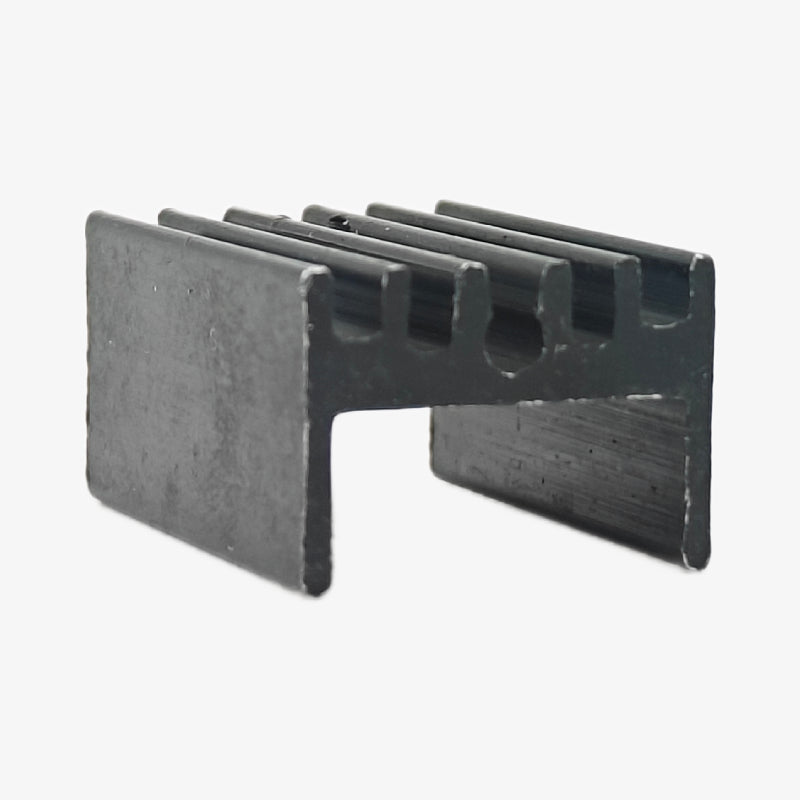

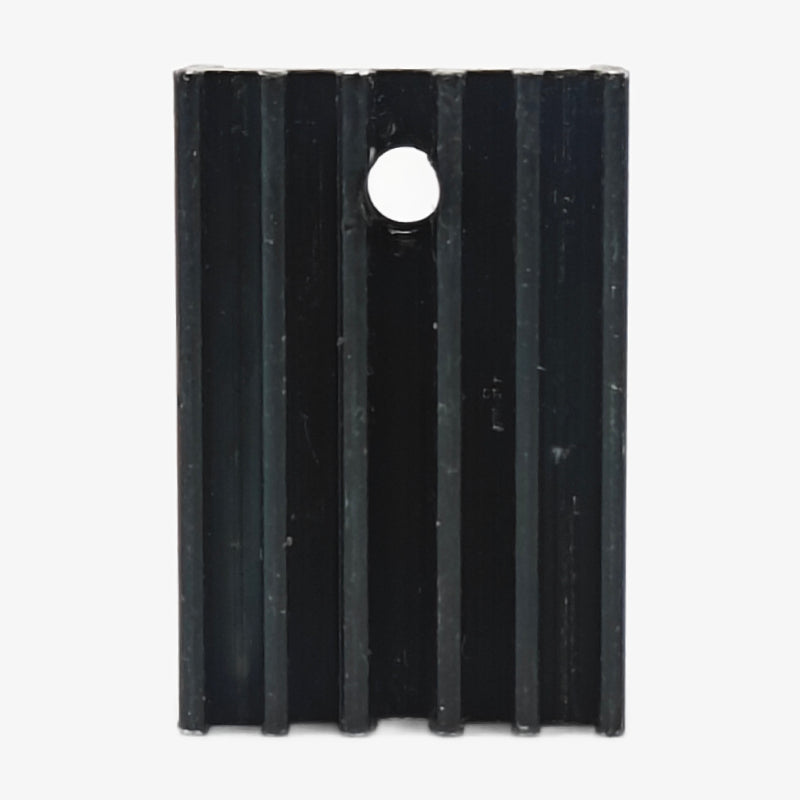

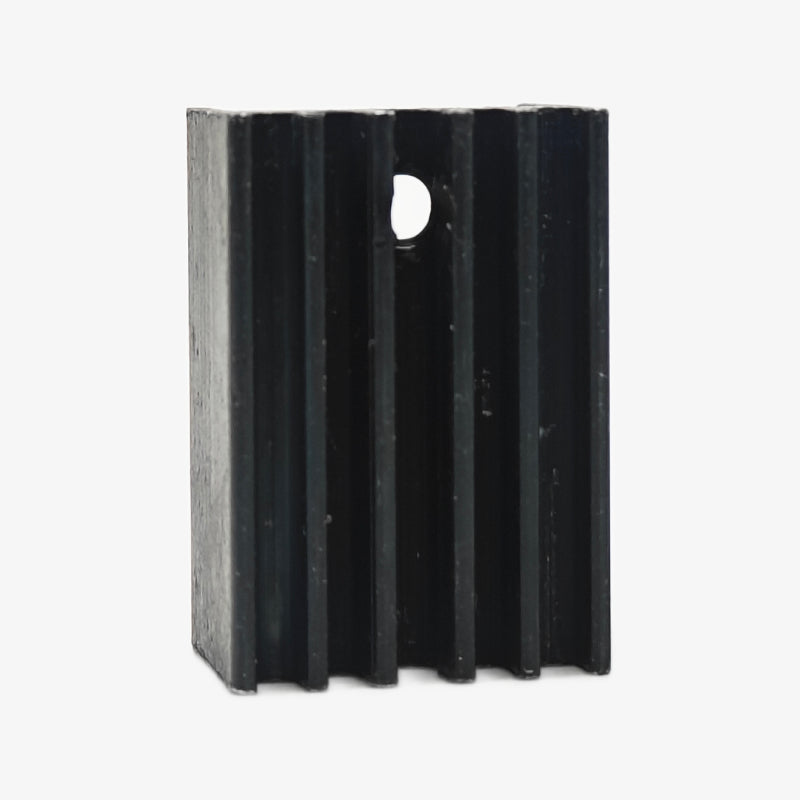

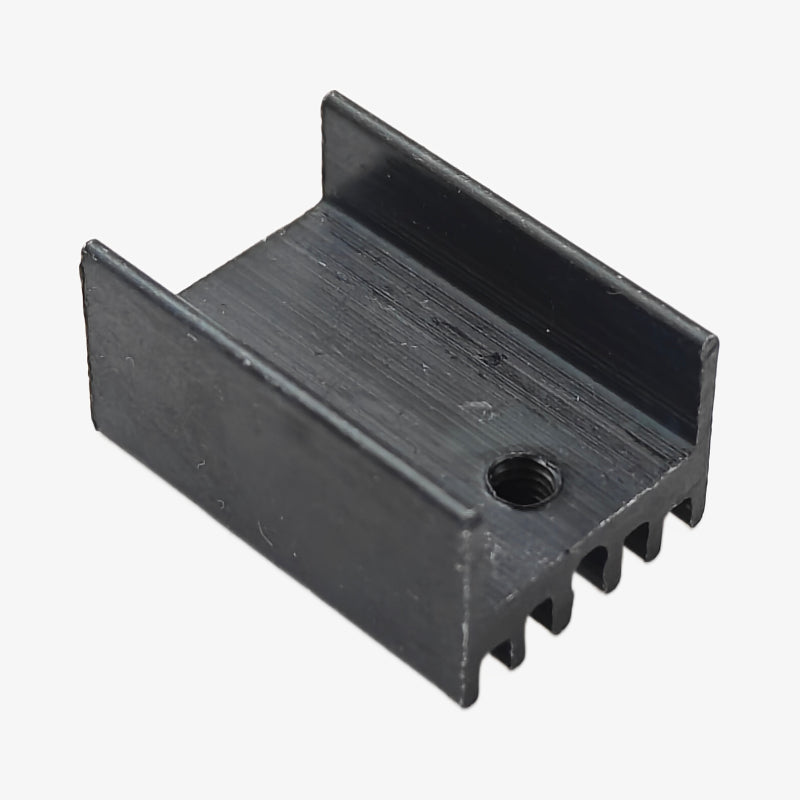

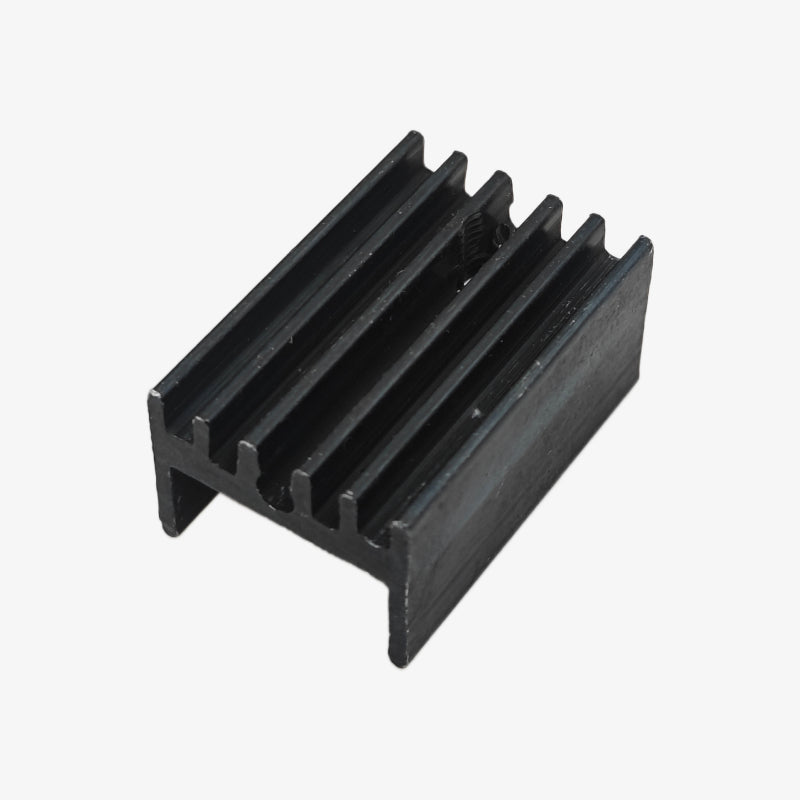

This 22×15×10mm black aluminum heat sink is designed for cooling TO-220 package components such as voltage regulators, power transistors, and MOSFETs. Made from high-quality aluminum alloy with a black anodized surface finish, it provides excellent thermal dissipation in compact electronic circuits.
Ideal for use in amplifiers, power supplies, motor drivers, and DIY electronics, this miniature heat sink effectively reduces component temperatures, ensuring longer life and stable performance. Its lightweight and compact design make it suitable for PCB mounting in tight spaces.
Features:
- Designed for TO-220 Package: Compatible with power transistors, regulators, and MOSFETs.
- High-Quality Aluminum Alloy: Ensures efficient thermal conductivity.
- Black Anodized Finish: Improves heat dissipation and provides corrosion resistance.
- Compact Design: Small size makes it suitable for dense circuit boards.
- Improves Component Lifespan: Prevents overheating and increases reliability.
Specifications:
| Model | TO-220 Heat Sink |
| Material | Aluminum Alloy |
| Surface Finish | Black Anodized |
| Dimensions | 22 × 15 × 10 mm |
| Compatible Package | TO-220 (e.g., LM317, 7805, IRF540N) |
| Mounting Style | Screw Mount |
| Applications | Voltage regulators, MOSFETs, transistors, power ICs |
Package Includes:
1 × 22×15×10mm Black Aluminum Heat Sink for TO-220 Package
