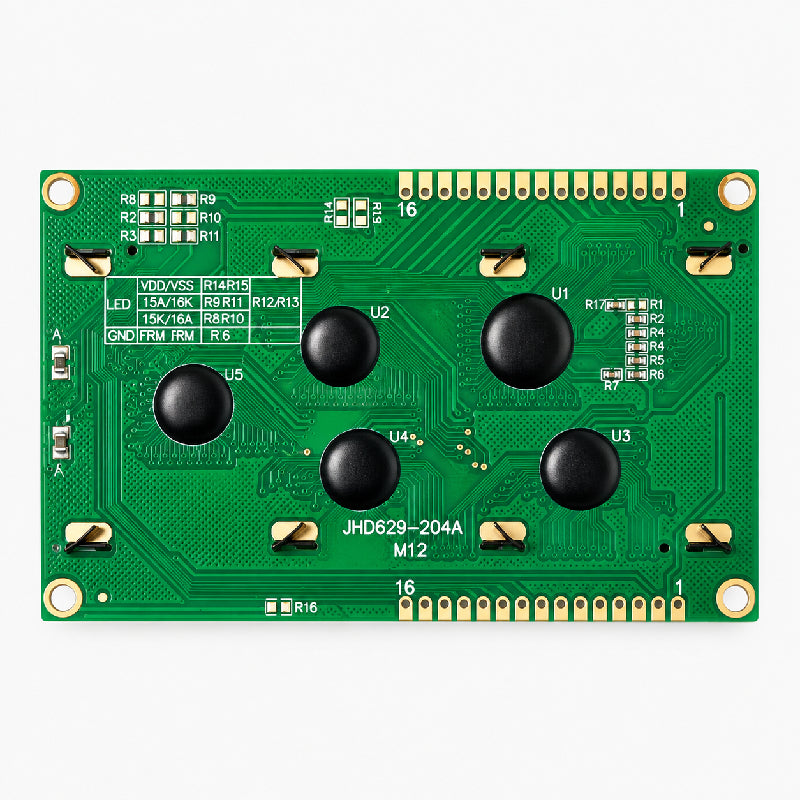

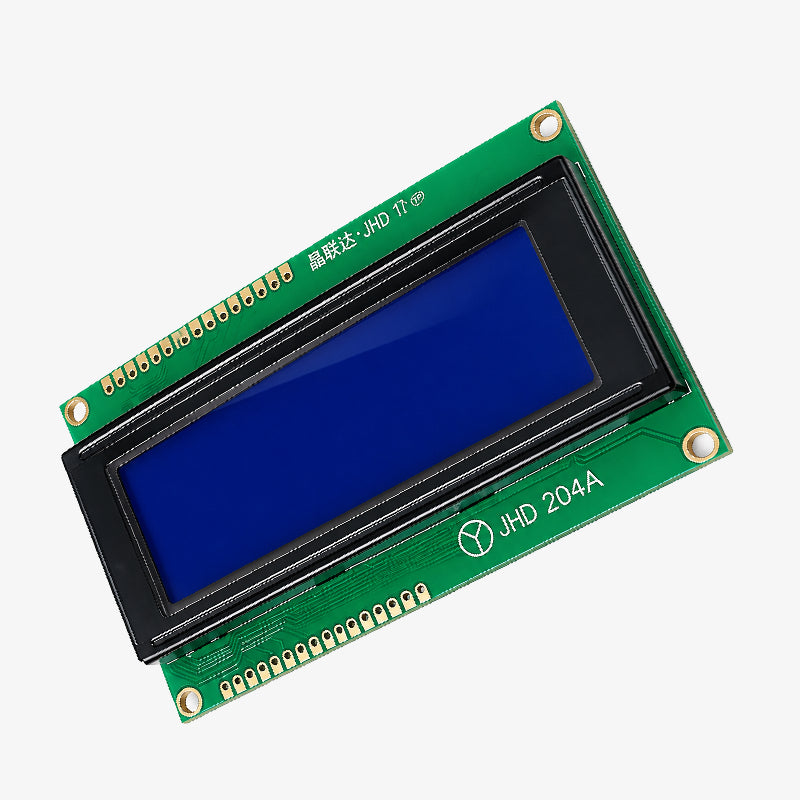

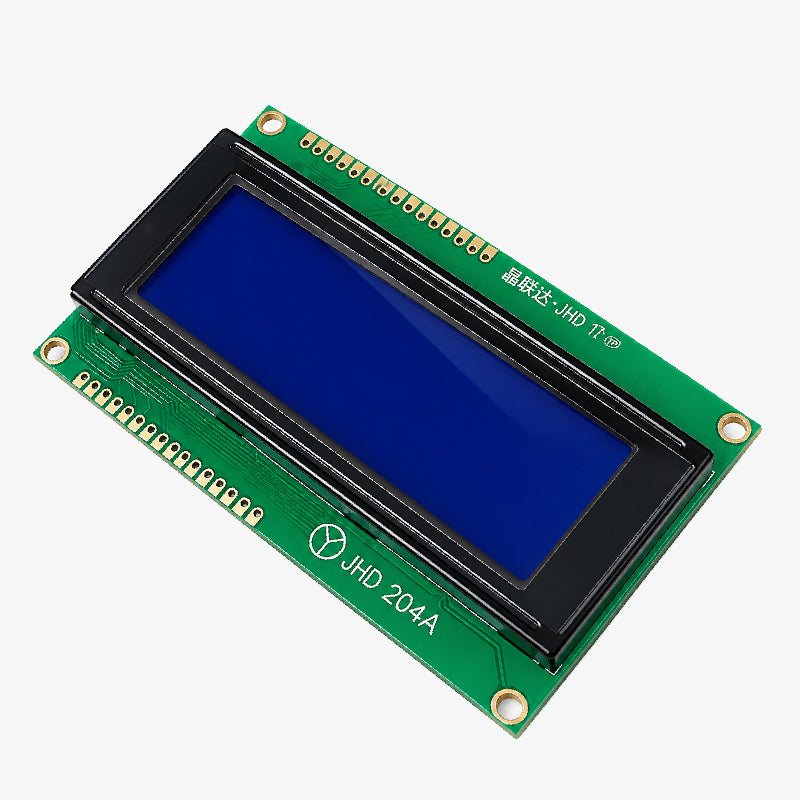

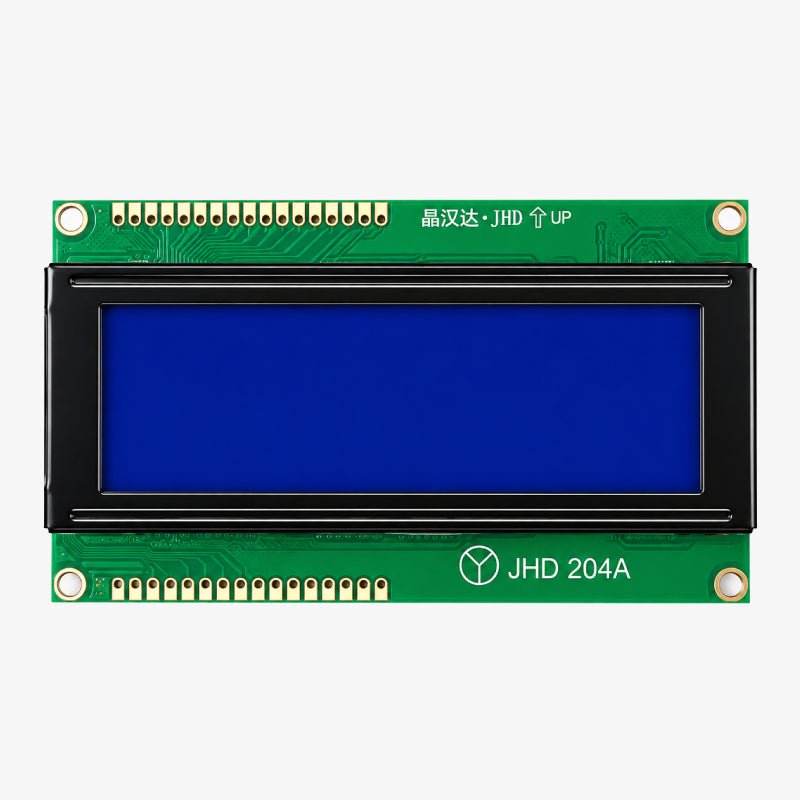

JHD 20x4 LCD Display (Blue Backlight)

Brand: JHD
SKU: MOD-QC6241
Availability: 100 In Stock
Rs. 360.00
Subtotal: Rs. 360.00
Description
Description
x

JHD 20x4 LCD Display (Blue Backlight) is a standard alphanumeric character LCD module designed to display 20 characters across 4 lines. It features a blue LED backlight, white characters, and an HD44780-compatible controller for easy integration with Arduino, Raspberry Pi, ESP32, STM32, PIC, and other microcontrollers. The standard 16-pin parallel interface supports both 4-bit and 8-bit communication modes, making it suitable for displaying sensor readings, menus, measurements, system status, counters, and other text-based information.

Features:

  1. 20 characters × 4 lines display format.
  2. Blue LED backlight for clear visibility.
  3. White character display on blue background.
  4. HD44780-compatible controller.
  5. Standard 16-pin parallel interface.
  6. Supports 4-bit and 8-bit communication modes.
  7. 5V DC operating voltage.
  8. Adjustable display contrast.
  9. 5 × 8 dot matrix character format.
  10. Suitable for Arduino, Raspberry Pi, ESP32, STM32, PIC, and other microcontrollers.
  11. I2C operation possible using a compatible I2C adapter.
  12. Suitable for sensor displays, menus, counters, meters, automation systems, and DIY electronics.

Specifications:

Parameter Value
Product Type 20x4 Character LCD Display
Display Format 20 Characters × 4 Lines
Total Characters 80
Display Type Alphanumeric LCD
Backlight Colour Blue
Character Colour White
Controller IC HD44780 Compatible
Interface Parallel
Interface Modes 4-Bit / 8-Bit
Number of Pins 16
Operating Voltage 5V DC
Supply Voltage Range Approx. 4.7V–5.3V
Logic Level 5V
Character Matrix 5 × 8 Dots
Viewing Area Approx. 76 × 26mm
Module Dimensions Approx. 98 × 60 × 14mm
Contrast Adjustment Yes
I2C Support Yes, with Compatible I2C Adapter
Pin Header Pitch 2.54mm
Operating Temperature Approx. -20°C to +70°C
Mounting Type Through Hole / Panel Mount
Application Embedded Systems, Robotics, Automation, DIY Electronics


Also Check These Products:-

16x2 LCD Display (Blue Backlight) with IIC/I2C interface

16x2 LCD Display (Green Backlight) with IIC/I2C Interface

16x2 (1602) LCD Display (Blue Backlight)

Package Includes:

1 x JHD 20x4 LCD Display (Blue Backlight)
