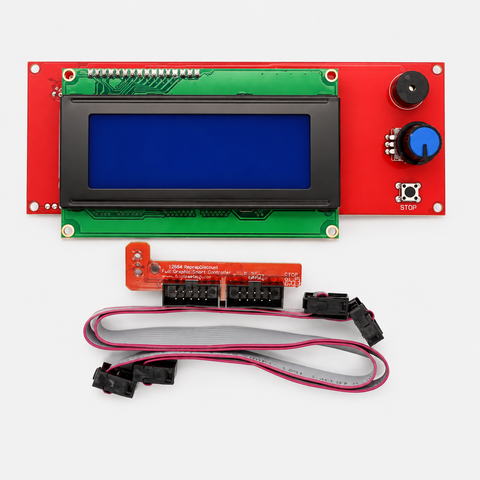

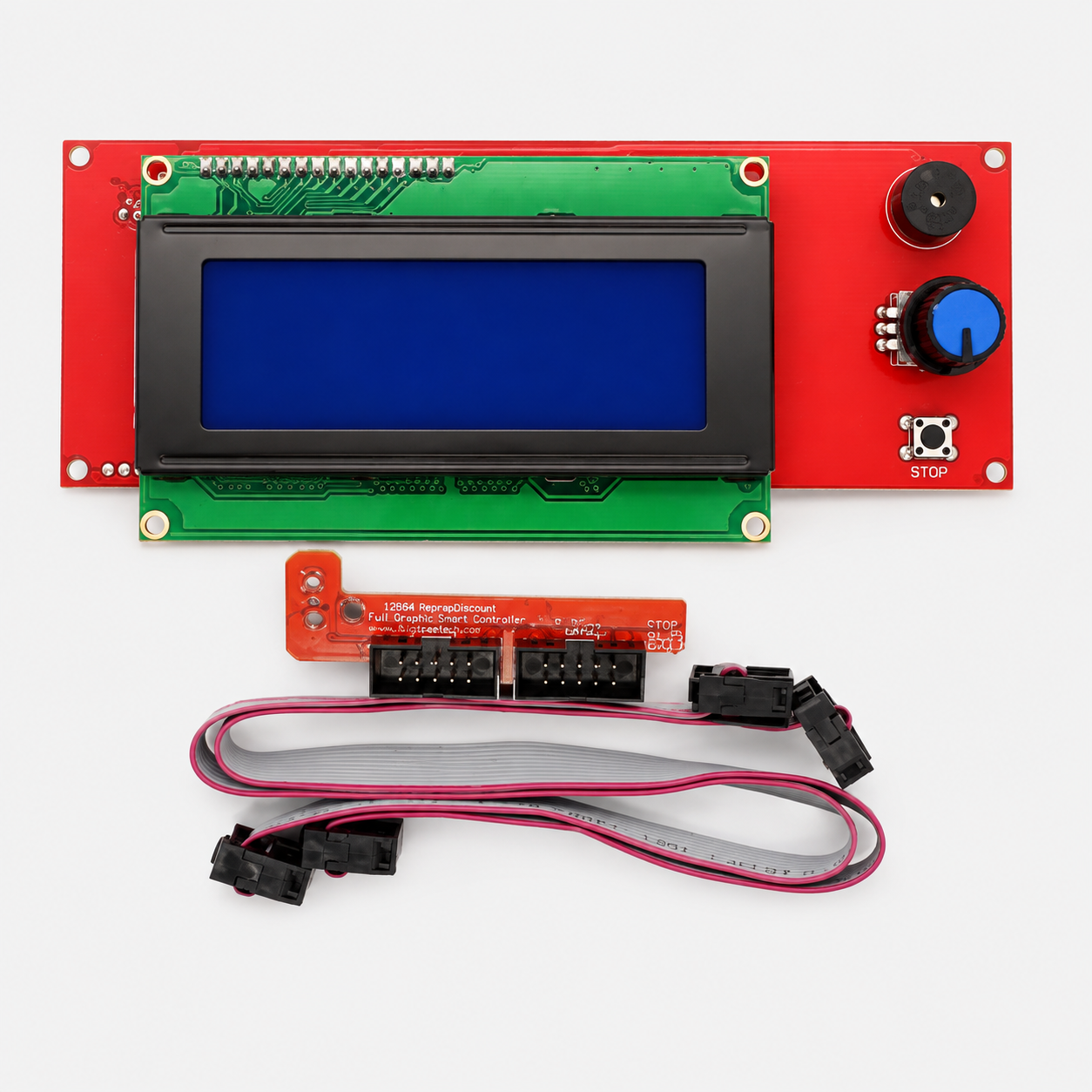

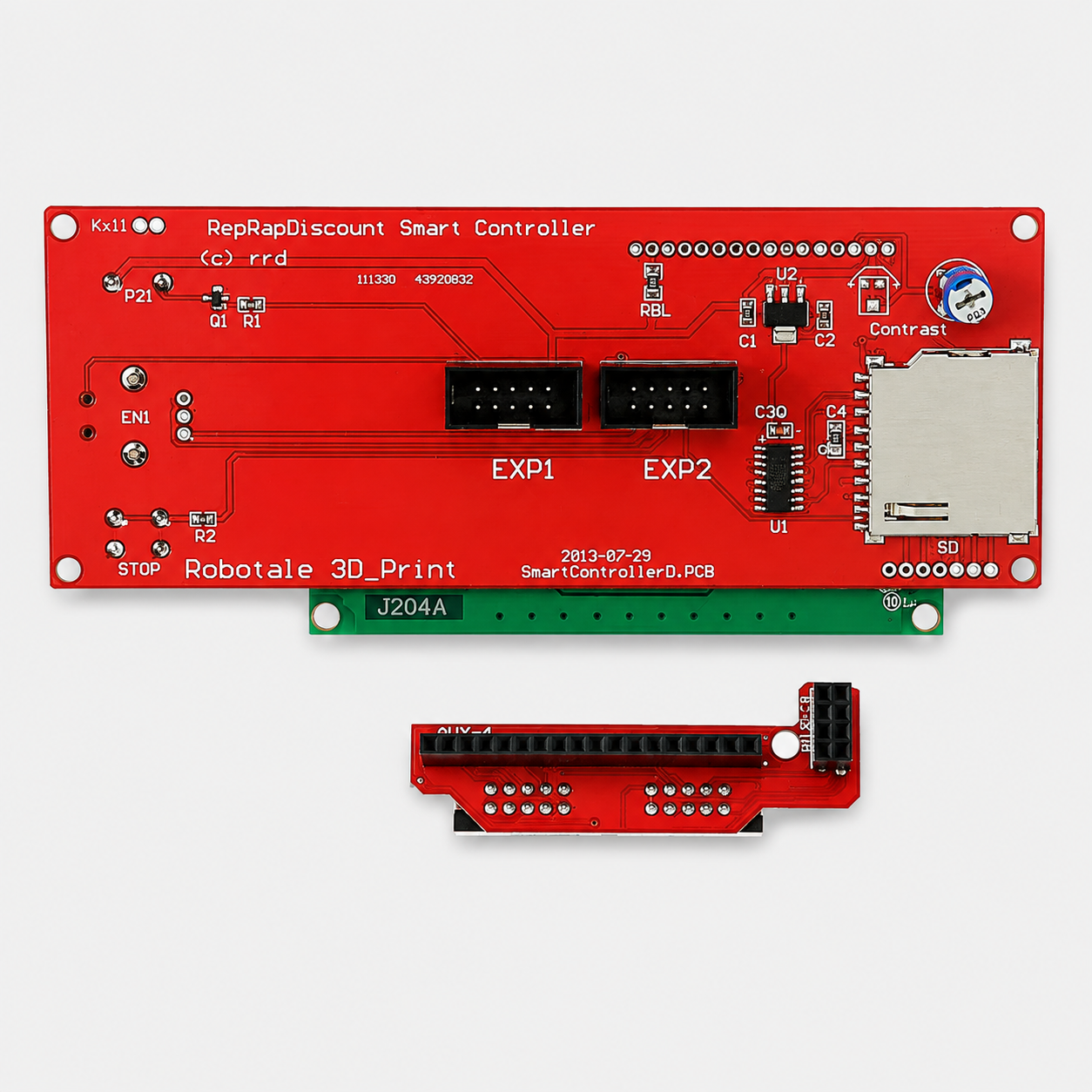

2004 LCD Display RepRapDiscount Smart Controller is a user-friendly LCD controller designed for RepRap and RAMPS-based 3D printers. Featuring a 20×4 character LCD, rotary encoder, SD card slot, and smart adapter, it allows complete offline control of the printer, including file selection, axis movement, calibration, and printing without requiring a computer. It is compatible with popular 3D printer firmware such as Marlin and is widely used in DIY and open-source 3D printer projects.
2004 LCD Display RepRapDiscount Smart Controller with Adapter Schemetic
| Parameter | Value |
|---|---|
| Product Type | Smart LCD Controller |
| Display Type | Character LCD |
| Display Size | 20 Characters × 4 Lines (2004 LCD) |
| Backlight | Blue LED |
| Input Voltage | 5V DC |
| User Interface | Rotary Encoder with Push Button |
| Storage | SD Card Slot |
| Communication Interface | EXP1 & EXP2 IDC Connectors |
| Adapter Board | Smart Adapter Included |
| Cable Type | 10-Pin IDC Ribbon Cable |
| Cable Length | 30cm |
| Compatible Controller Boards | RAMPS 1.4, RAMPS 1.5, RAMPS 1.6, MKS Base, MKS SBASE and Other RepRap-Compatible Boards |
| Supported Firmware | Marlin, Repetier, Smoothieware |
| Board Dimensions | Approximately 150 × 64 × 24mm |
| Applications | RepRap 3D Printers, DIY 3D Printers, CNC Machines, Offline 3D Printing Control |
16x2 LCD Display (Green Backlight) with IIC/I2C Interface
16x2 (1602) LCD Display (Blue Backlight)
1 × 2004 LCD Display RepRapDiscount Smart Controller

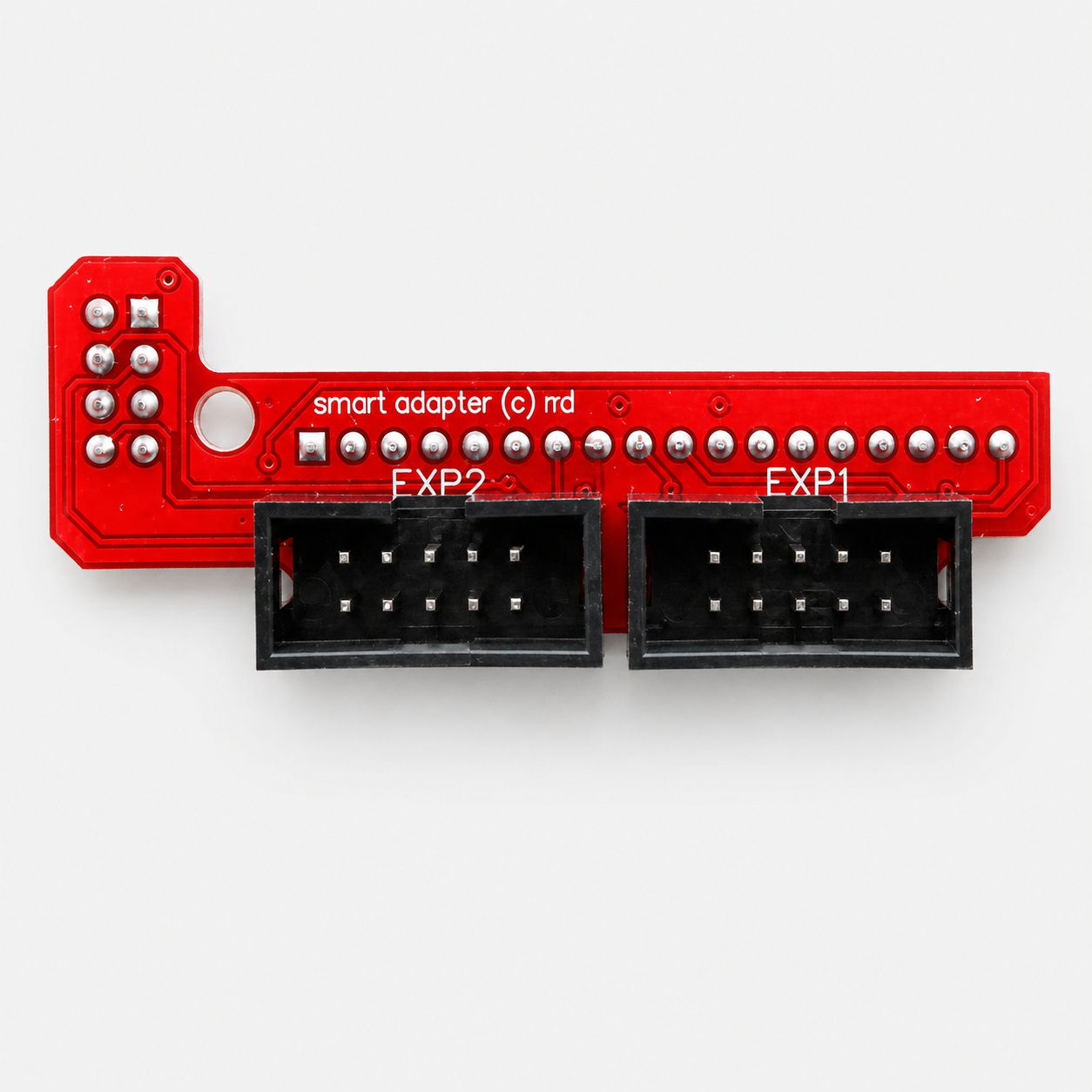

1 × Smart Adapter Board
2 × 30cm IDC Ribbon Cables
