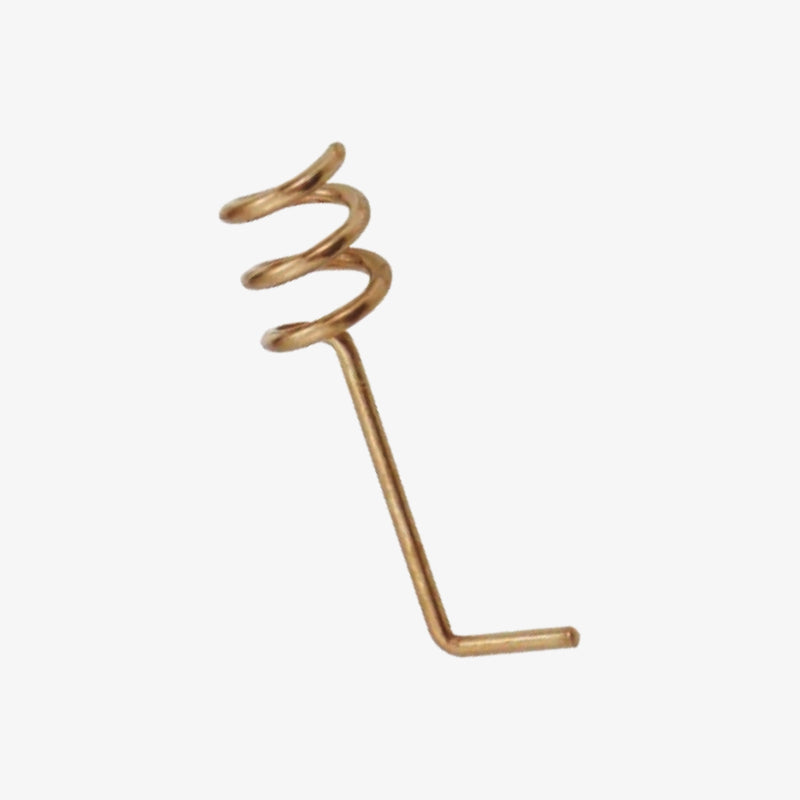

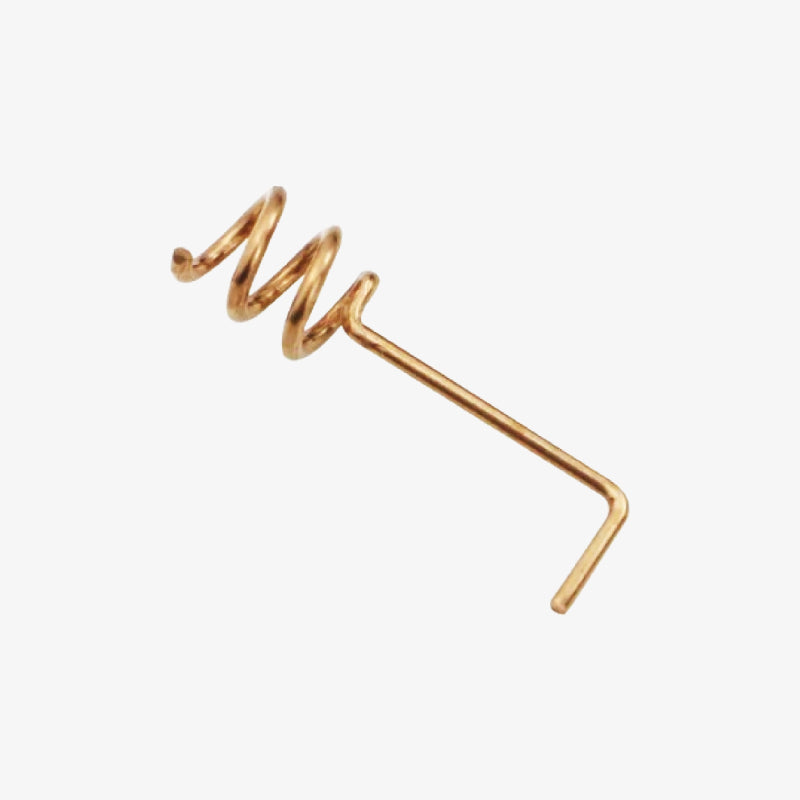

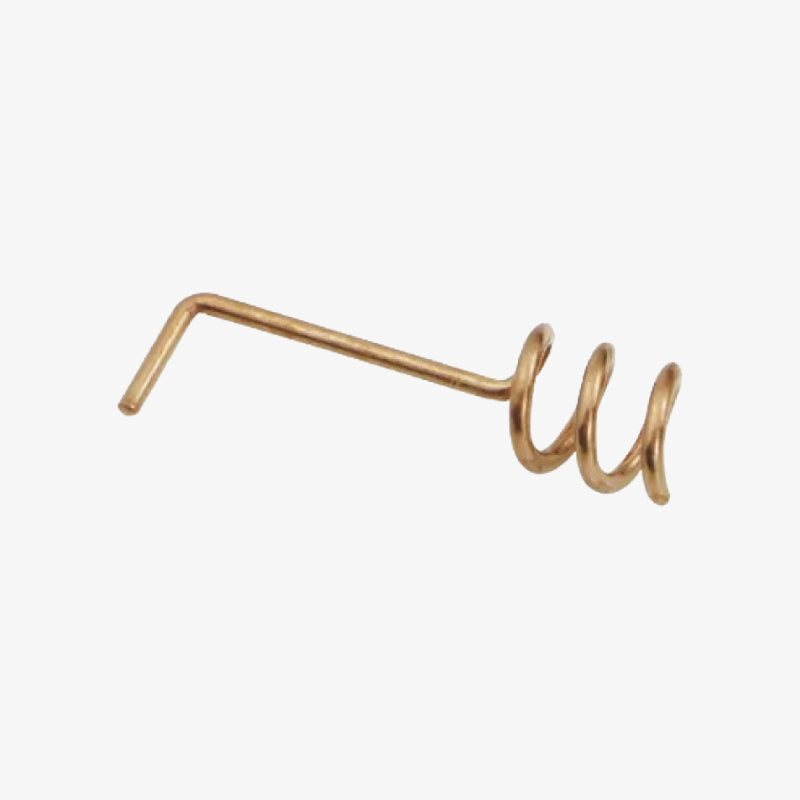

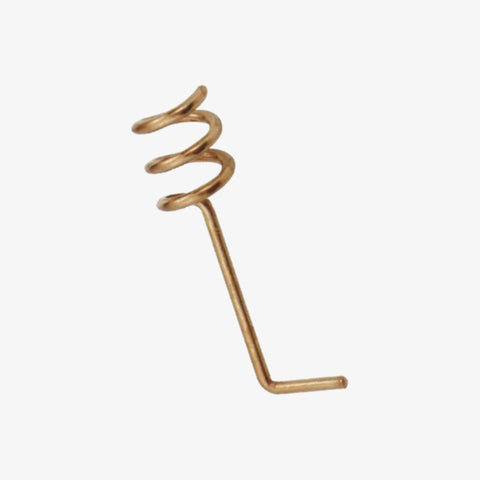

The AntennaHome AH2G.304 2.4GHz 1dBi Elbow Spring Antenna is a compact and efficient antenna designed for 2.4GHz wireless communication systems. Its spring-type structure provides stable signal transmission while minimizing space, making it ideal for Wi-Fi, Bluetooth, and ZigBee-enabled devices and modules.
Features:
- Compact helical spring design suitable for space-limited applications
- Optimized for 2.4GHz frequency band used in Wi-Fi, Bluetooth, and ZigBee
- Provides stable and reliable RF performance
- Vertical omni-directional radiation for consistent signal coverage
- DIP mounting for easy PCB integration
Specifications:
- Model: AH2G.304
- Frequency: 2400–2500 MHz
- Impedance: 50Ω
- VSWR: ≤2.0
- Gain: 1.0 dBi
- Polarization: Vertical / Omni
- Mounting Type: DIP
- Material: Copper
- Color: Copper
- Size: 4.5 × 11.0 mm
- Weight: 0.075 g
- Operating Temperature: -40°C to +85°C
Package Includes:
1 × 2.4GHz Spring DIP Antenna
