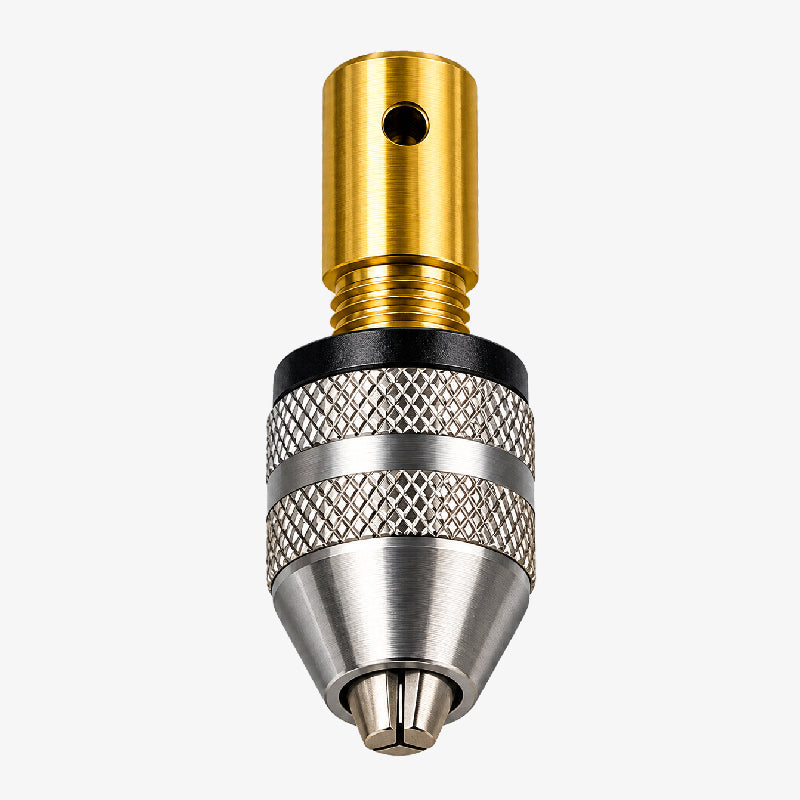

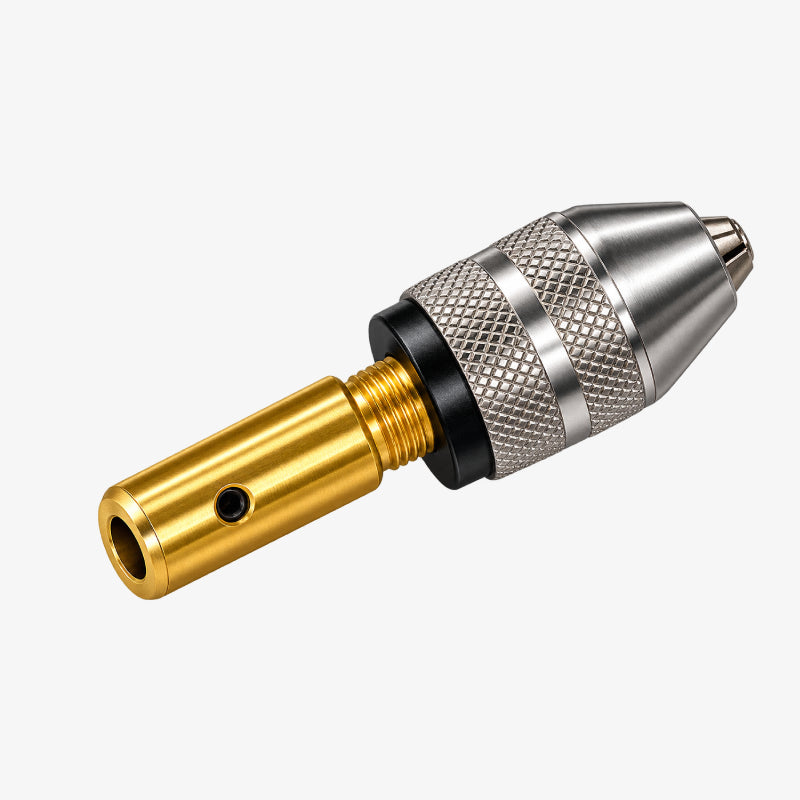

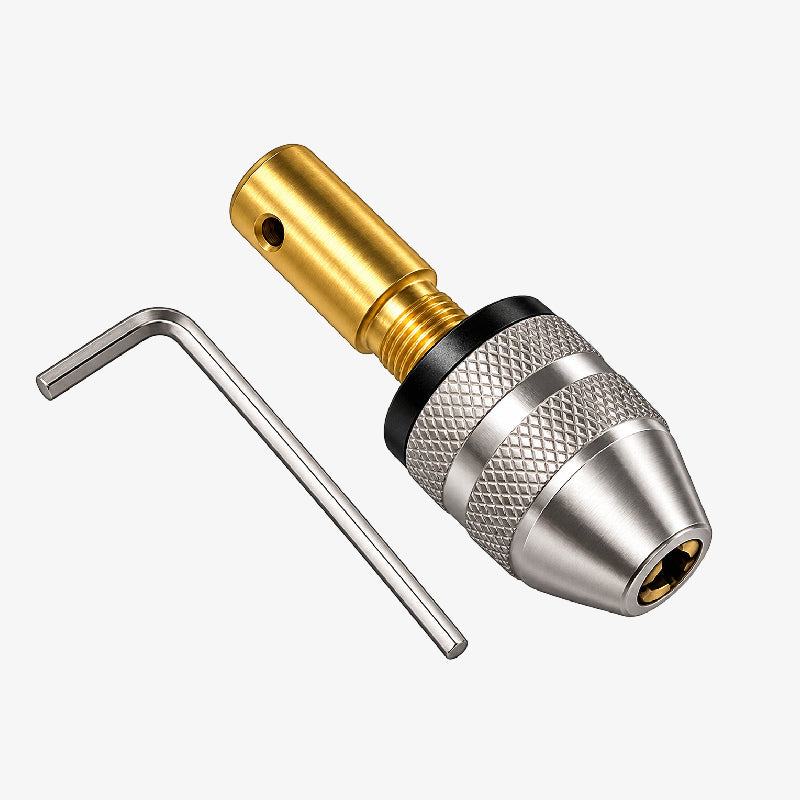

2.35mm Mini Drill Chuck 0.5–3.2mm with Shank Shaft Adapter is a compact drill chuck designed for mini electronic drills, rotary tools, and small electric drilling applications. It features a 2.3mm shank diameter and accepts drill bits and accessories from 0.5mm to 3.2mm. The chuck is made from high-speed steel, has a total length of 21mm, and supports a maximum speed of 20,000 RPM.
| Specification | Value |
|---|---|
| Product Type | Mini Electronic Drill Chuck |
| Shank Diameter | 2.3mm |
| Chuck Range | 0.5–3.2mm |
| Clamping Range | 0.5–3.2mm |
| Material | High-Speed Steel |
| Total Length | 21mm |
| Maximum RPM | 20,000 RPM |
| Shank Type | Round Shank |
| Tool Compatibility | Mini Drills / Rotary Tools |
| Application | Precision Drilling |
| Suitable Drill Bit Diameter | 0.5–3.2mm |
| Construction | Metal |
| Product Category | Drill Chuck / Shaft Adapter |
| Quantity | 1 Piece |
0.5-3mm Small Electric Drill Chuck Set of 2.35mm
0.5-3mm Small Electric Drill Chuck Set of 775 DC Motor (5.05mm Hole)
1 × 2.35mm Mini Drill Chuck 0.5–3.2mm with Shank Shaft Adapter
