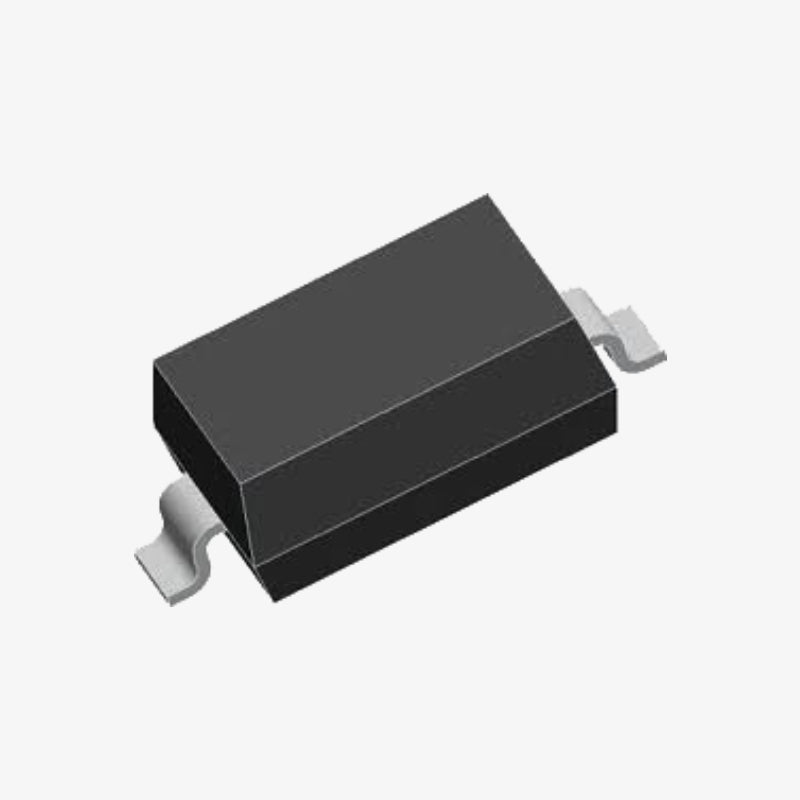

1N914BWS Small Signal Switching Diode - SOD-323F SMD Package (Pack of 10)
SKU:
SMD-QC3776
Availability:
297
In Stock
- Rs. 20.00
- Rs. 20.00
- Unit price
- per
Subtotal:
Rs. 20.00
Description
xThe 1N914BWS Small Signal Switching Diode SOD-323F SMD Package is designed for fast switching and general-purpose surface-mount applications. Its compact SOD-323 package ensures easy PCB integration while providing reliable performance in low-current switching and signal control circuits. Ideal for automated insertion and high-speed switching applications.
Features:
- Fast switching for high-speed circuit performance
- Compact surface-mount SOD-323F package for space-efficient designs
- High conductance for reliable signal control
- Suitable for general-purpose switching applications
- Available in lead-free version for RoHS compliance
Specifications:
- Repetitive Peak Reverse Voltage (VRRM): 100V
- Working Peak Reverse Voltage (VR): 75V
- Average Forward Rectified Current (IF(AV)): 150mA
- Peak Forward Surge Current (IFSM): 2.0A (1µs pulse)
- Forward Voltage (VF): 1.2V at IF = 100mA
- Reverse Current (IR): 2µA at VR = 75V
- Junction Capacitance (CJ): 4pF (VR = 0V, f = 1MHz)
- Reverse Recovery Time (trr): 4ns
- Power Dissipation (Pd): 200mW
- Thermal Resistance Junction-to-Ambient (RθJA): 650°C/W
- Operating Junction Temperature (TJ): 150°C
- Storage Temperature Range (TSTG): -65°C to +150°C
Package Includes:
10 × 1N914BWS Small Signal Switching Diode - SOD-323F SMD Package
