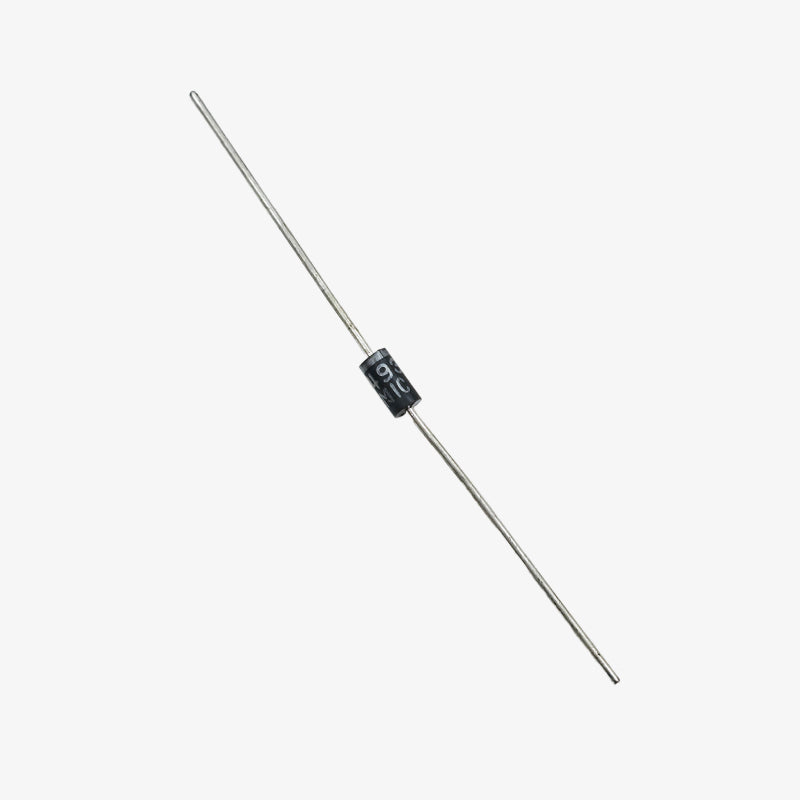

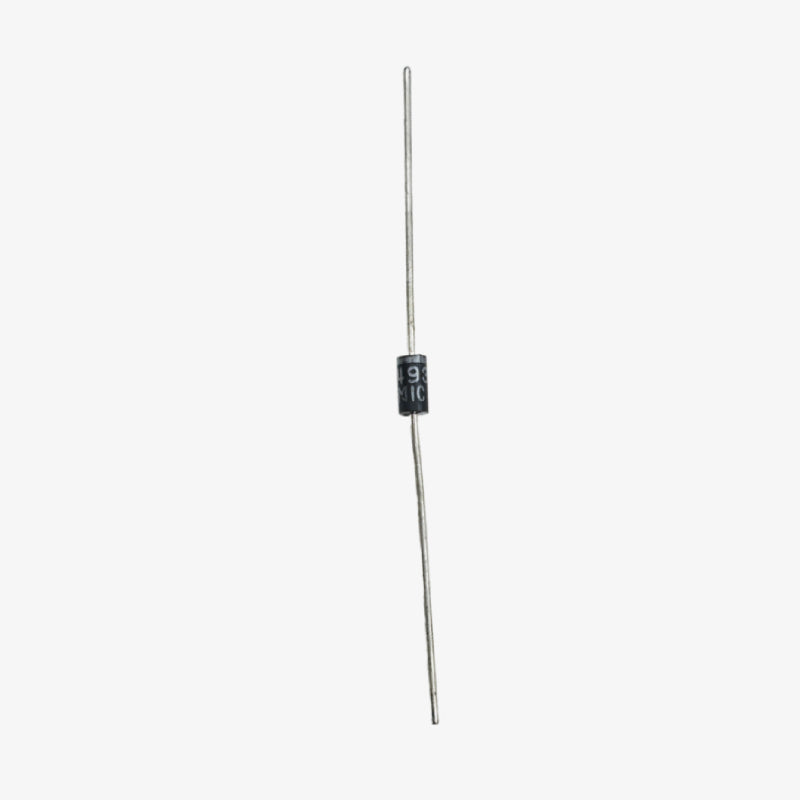

1N4937 Fast Recovery Rectifier Diode 1A
SKU:
CMP-QC3714
Availability:
4975
In Stock
- Rs. 3.00
- Rs. 3.00
- Unit price
- per
Subtotal:
Rs. 3.00
Description
xThe 1N4937 Fast Recovery Rectifier Diode 1A is designed for efficient AC to DC rectification in fast-switching applications. Its molded DO-41 body ensures reliable operation under high-speed load conditions. Ideal for power supplies, inverters, converters, and freewheeling circuits.
Features:
- High-speed switching for improved efficiency
- Low forward voltage drop for minimal energy loss
- Excellent surge current tolerance
- Molded epoxy body with UL 94V-0 flammability rating
Specifications:
- Maximum Repetitive Peak Reverse Voltage (VRRM): 600 V
- Maximum RMS Voltage (VRMS): 420 V
- Maximum DC Blocking Voltage (VDC): 600 V
- Average Forward Rectified Current (IF(AV)): 1.0 A
- Peak Forward Surge Current (IFSM): 30 A
- Maximum Instantaneous Forward Voltage (VF) at 1A: 1.2 V
- Maximum DC Reverse Current (IR) at 25°C: 5 µA
- Maximum DC Reverse Current (IR) at 100°C: 100 µA
- Maximum Reverse Recovery Time (trr): 200 ns
- Typical Junction Capacitance (CJ): 12 pF
- Operating Temperature Range (TJ, TSTG): -50°C to +150°C
Package Includes:
1 × 1N4937 Fast Recovery Rectifier Diode 1A
