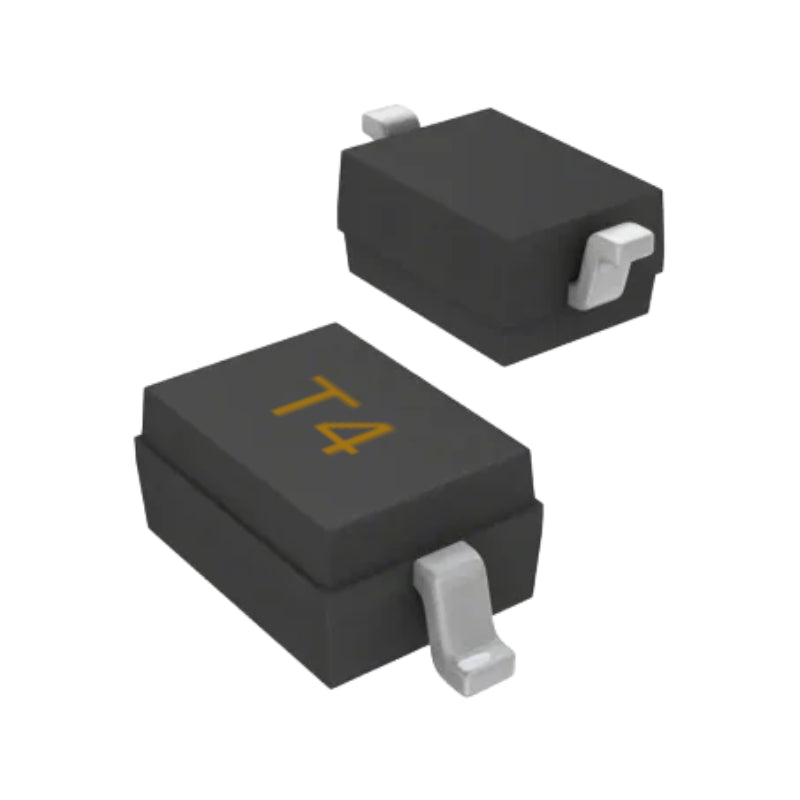

1N4148WS T4 Switching Diode - SOD-123 SMD Package

Brand: GENERIC
SKU: SMD-QC3410
Availability: 2192 In Stock
Rs. 2.00
Rs. 2.00
Subtotal: Rs. 2.00
Description
Description
x

The 1N4148WS T4 is a high-speed switching diode designed for fast switching applications in electronic circuits. Its compact SOD-123 SMD package allows space-saving PCB layouts and compatibility with automated surface-mount assembly. This diode is widely used in signal processing, protection circuits, logic circuits, and high-speed switching applications, offering reliable performance with low forward voltage drop and fast recovery time.

Features of 1N4148WS T4 Switching Diode:

  1. High-speed switching diode for fast electronic circuits
  2. SOD-123 SMD package for compact PCB layouts
  3. Low forward voltage drop for efficient operation
  4. High reliability and long-term performance
  5. Fast reverse recovery time for high-speed applications
  6. Suitable for signal processing, protection, and logic circuits
  7. RoHS compliant and ideal for automated SMD assembly

Specifications of 1N4148WS T4 Switching Diode:

  • Model: 1N4148WS T4
  • Type: Switching Diode
  • Maximum Repetitive Reverse Voltage: 100V
  • Average Forward Current: 200mA
  • Peak Forward Surge Current: 500mA
  • Forward Voltage Drop: 1V (typical at 10mA)
  • Reverse Recovery Time: 4ns (typical)
  • Package: SOD-123 – SMD
  • Operating Temperature Range: -65°C to +175°C

Package Includes:

1 × 1N4148WS T4 Switching Diode – SOD-123 SMD Package
