16 Channel Relay 5V Module

QC0708
14 In stock
Rs. 620.00 (Inc. GST)
Rs. 620.00

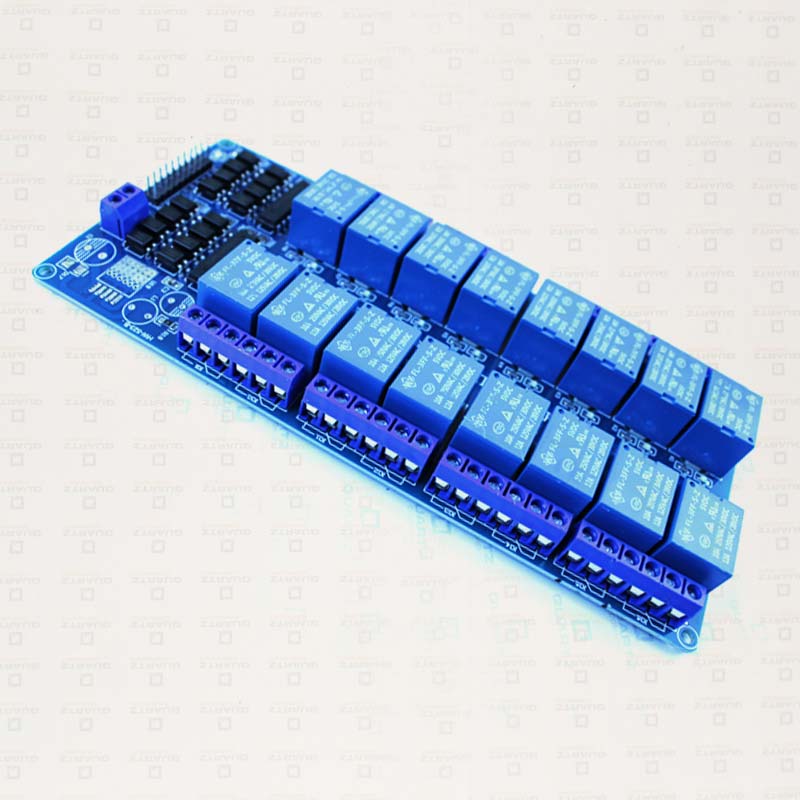

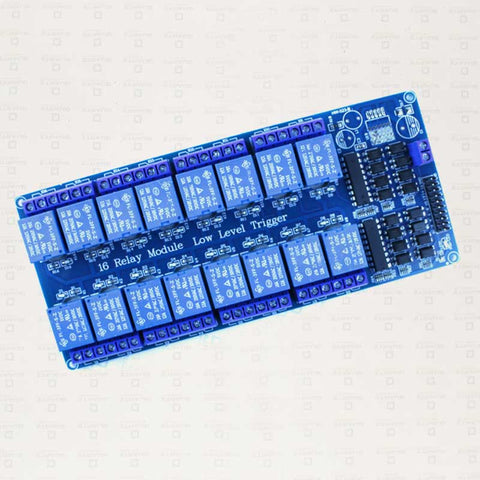

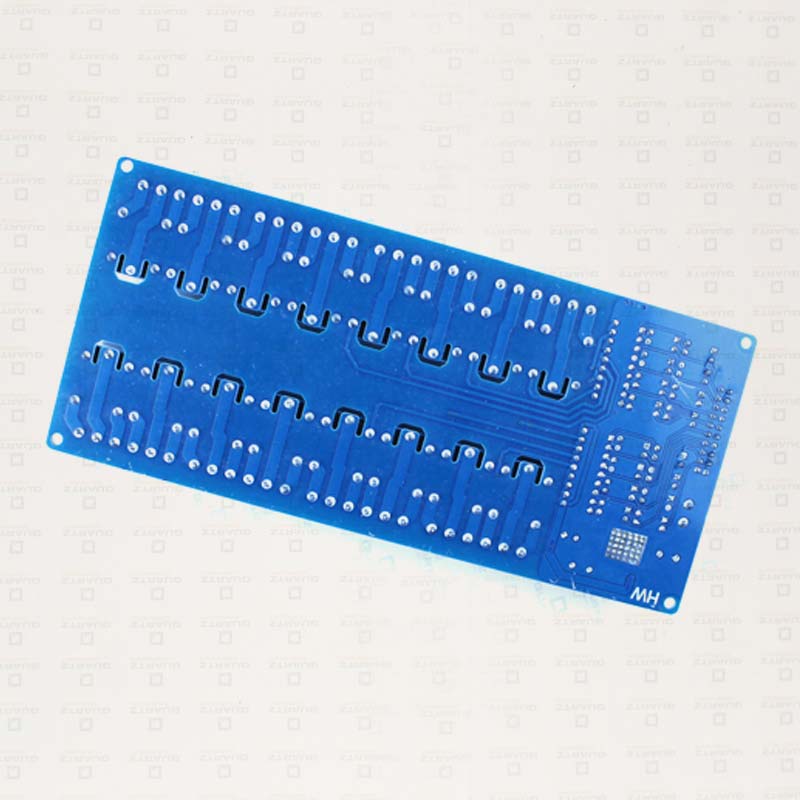

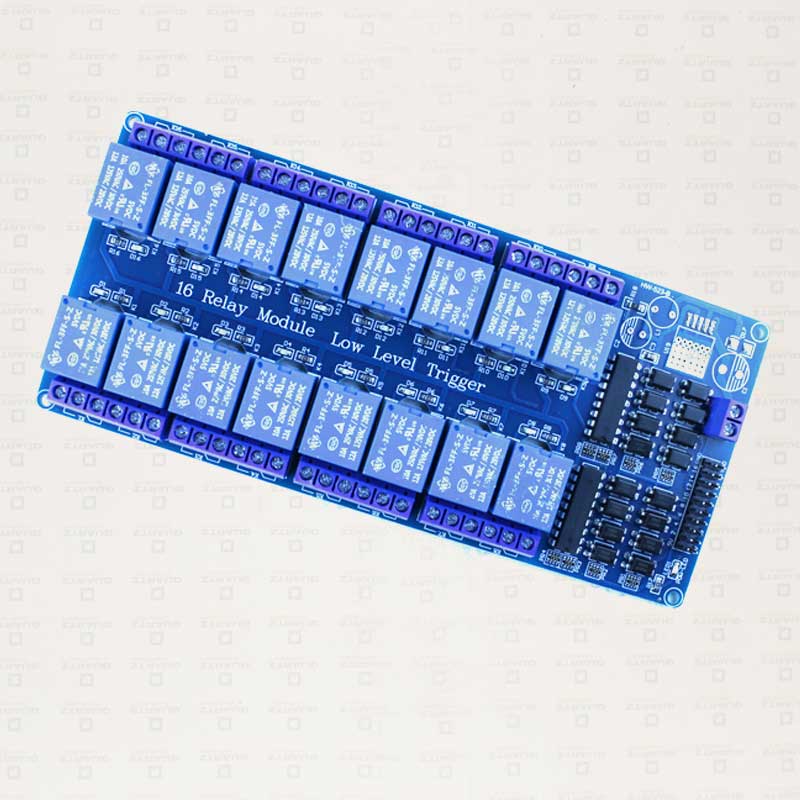

This 16 Channel Relay Module consists of sixteen 5V relays and each one of the individual relay needs 15-20mA driver current. This module has a light coupling protection (optocoupler) which provide  opto-isolation for safety purposes. This is a Relay module of 16 channel interface board that can be control various appliances, and other electronic equipment with large current. It can be controlled by Micro-controllers like Arduino, Raspberry-pi, ARM, TTL logic directly. The power supply it has is  LM2596 Power Supply that can control various appliances and other electronic equipment with a large current.


Features:

  • 5V relay with AC contact capacity of 10A 250V and optocoupler protection.
  • Onboard power supply module, doesn't need any external power supply.
  • The module can be used as microcontroller development board module and also as appliance control, PLC extended output.
  • It is using the industry’s top -quality isolation optocouplers, strong anti-jamming ability, stable performance.
  • The 1-16 road can be any full on/off or any road.
  • All interfaces can be directly connected through the terminal leads, very convenient.
  • Indication LED’s for Relay output status.


Specifications:

  • Working voltage: 5 Volts
  • Maximum Current: 500 mA
  • Low State Voltage: 0 - 0.5 volts (Relay is ON)
  • High State Voltage: 3.7 to 5 volts  (Relay is OFF)
  • Number of Channel: 16
  • Dimension: 180 x 90 x 20mm (L x W x H)
  • Weight: 100 g


Package Includes :

1 x 5V 16 Channel Relay Module with Light Coupling LM2576 Power Supply
