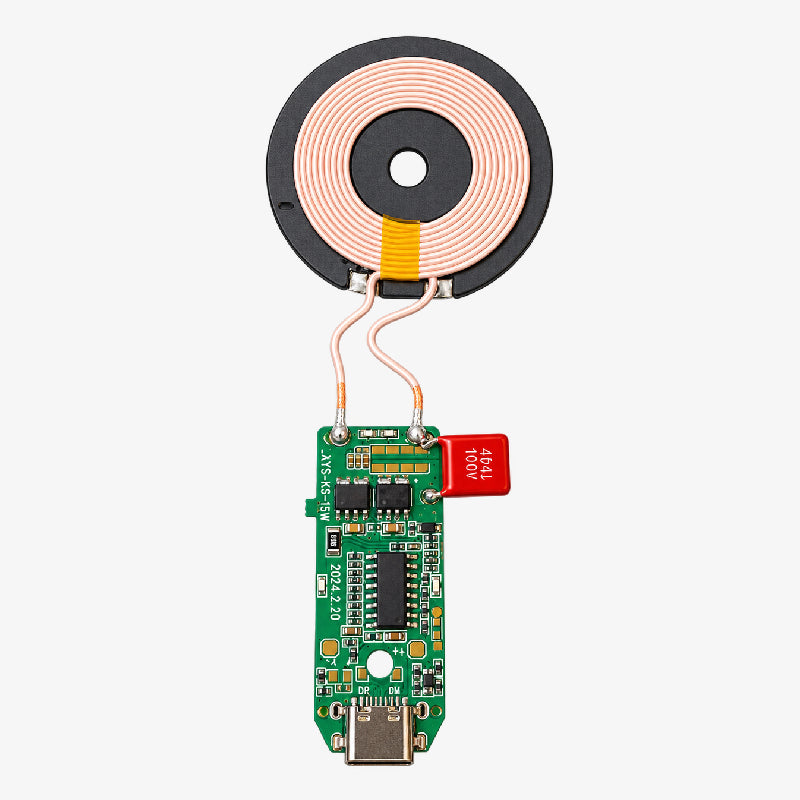

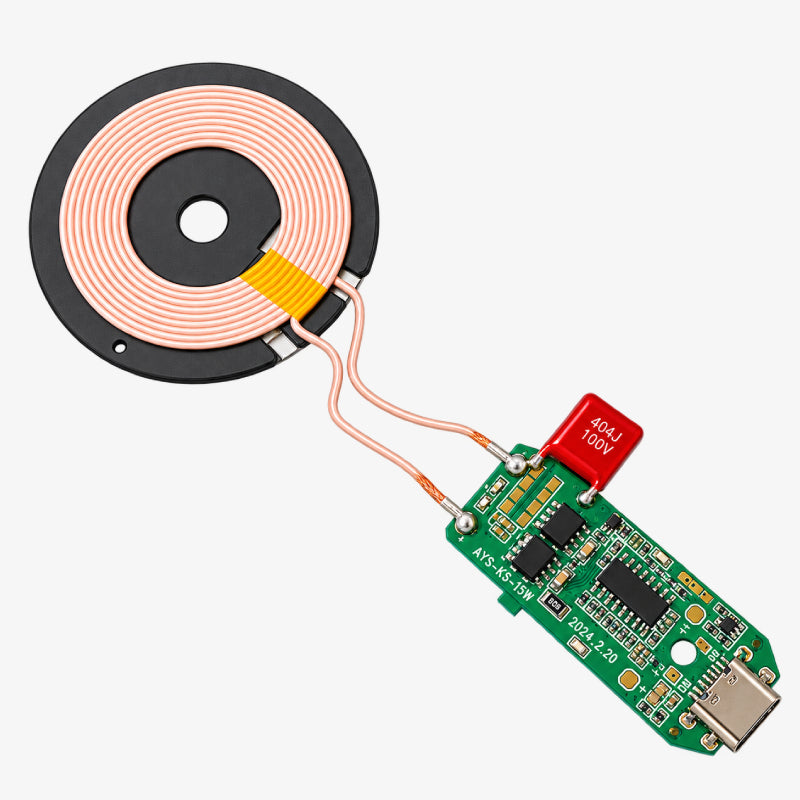

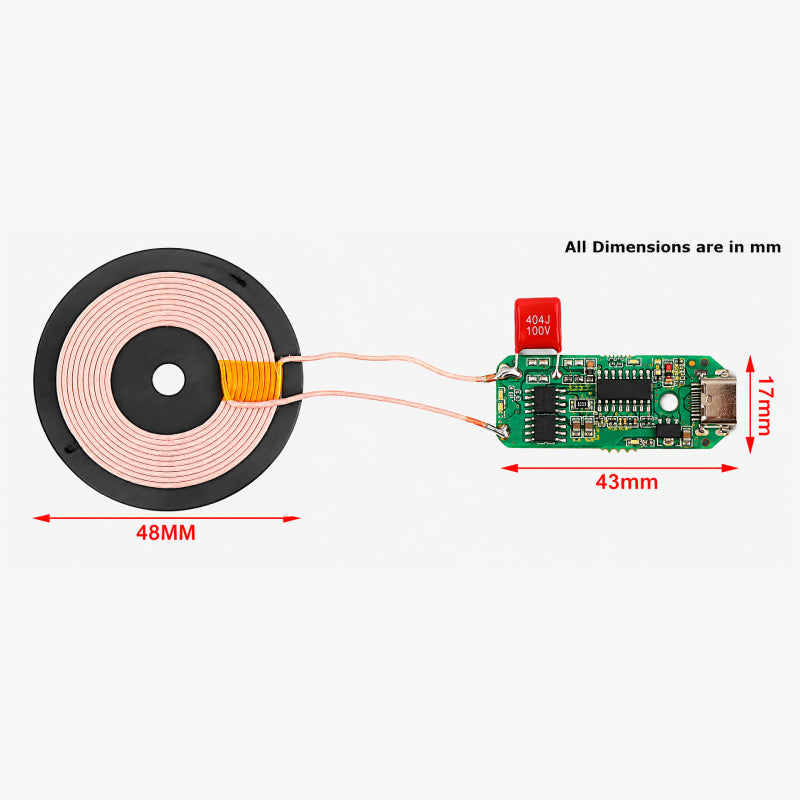

15W Wireless Charging Transmitter Module Type-C Connector is a compact wireless power transmitter module designed for integrating contactless charging into DIY electronics, custom charging pads, embedded charging systems, and other wireless power projects. It accepts 5V or 9V DC input through a USB Type-C connector and provides wireless charging power up to 15W. The module includes a transmitter circuit and charging coil, with a 43 × 17mm PCB and 48mm diameter coil. Wireless power can be transferred across a 10mm air gap or through a partition up to 5mm thick.
| Specification | Value |
|---|---|
| Product Type | Wireless Charging Transmitter Module |
| Charging Standard | Qi Wireless Charging |
| Maximum Output Power | 15W |
| Input Voltage | 5V / 9V DC |
| Rated Input Current | 2A |
| Input Connector | USB Type-C |
| Transmission Distance | 10mm |
| Maximum Partition Thickness | 5mm |
| Coil Diameter | 48mm |
| PCB Dimensions | 43 × 17mm |
| Construction | Metal / PCB |
| Product Weight | 3g |
| Module Type | Wireless Power Transmitter |
5V DC Qi Standard Micro USB Input Wireless Charging Transmitter Module with Coil
XKT-412 5V 2A Wireless Charging Module with Power Coil
ThinkNode M4 Power Bank - LoRa Device with Meshtastic Function Powered By nRF52840
1 × 15W Wireless Charging Transmitter Module Type-C Connector
