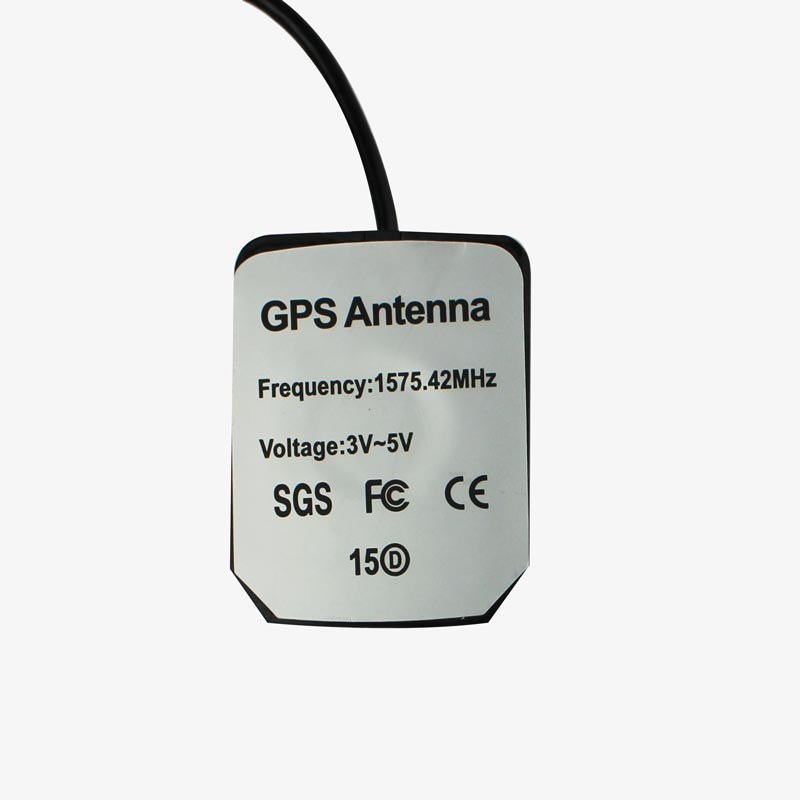

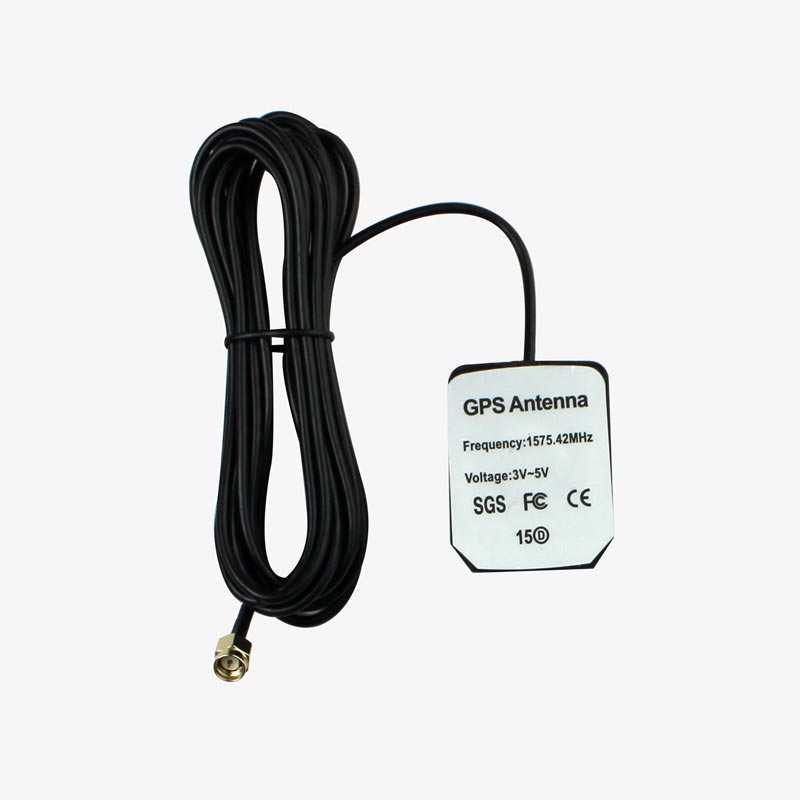

1575 Mhz GPS Antenna for GPS and GSM module - 2 meter Cable

With 2 meters of long cable, this GPS Antenna has a central frequency of 1575.42MHz with a Bandwidth of 9MHz. It is very useful for multiple GPS devices that operate at the same frequency. This GPS antenna module can improve the GPS signal reception performance and thus increase the accuracy of Indoor/Outdoor GPS. Due to long cable, users can place the antenna on the outside of the house as well as outside of the car. It can also be used indoors.

The operational voltage of this antenna is 3V to 5V and provides a gain of 27dB. The Antenna comes in a water-proof design with a cable of 2 meters with a SMA connector making it suitable for rough terrains.

Commonly used with Raspberry Pi GPS HAT or Arduino GPS shield. The antenna also has an internal magnet to allow it to be mounted on metallic surfaces which makes it easy to be placed in different locations.

1575Mhz GPS Antenna Specification:

• Operating Frequency  : 1575 ± 5 Mhz
• LNA gain(without cable)  : > 28 dBi (with LNA)
• Typical noise figure  :  1.5dB
• Operating Voltage (VDC)  :  3 ~ 5
• Operating Current  :  15mA
• Max. GSM Working Frequency   :  824-894/1710-1880 MHz
• VAWR  :  2:1
• Impedance  :  50 Ohms
• Peak gain  :  2dBi at 900mhz,2dBi at 1800mhz
• Type  :  Omni-directional polarization, linear polarization

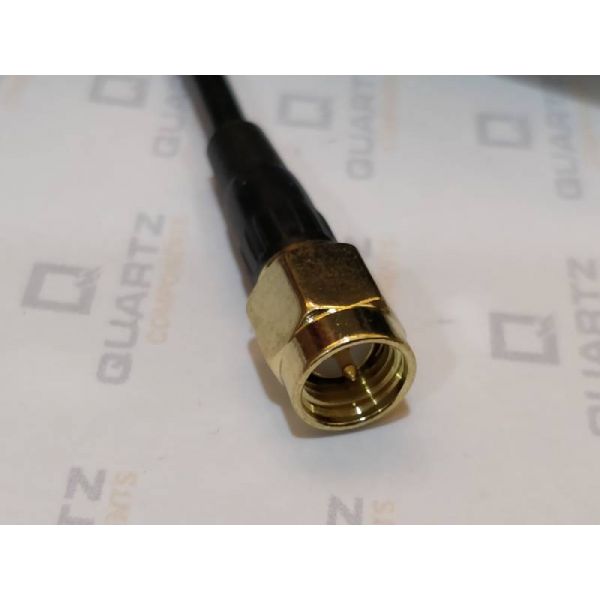

• Connector  :  Male SMA
• Color  :  Black
• Cable Length (Meter)  :  2

GPS Antenna (1575.42 Mhz) Applications:

• GPS Receptions
• Tracker devices
• RPI - GPS Shield
• Arduino GPS Shield

Package Contains

1x GPS Antenna (1575.42 Mhz)
