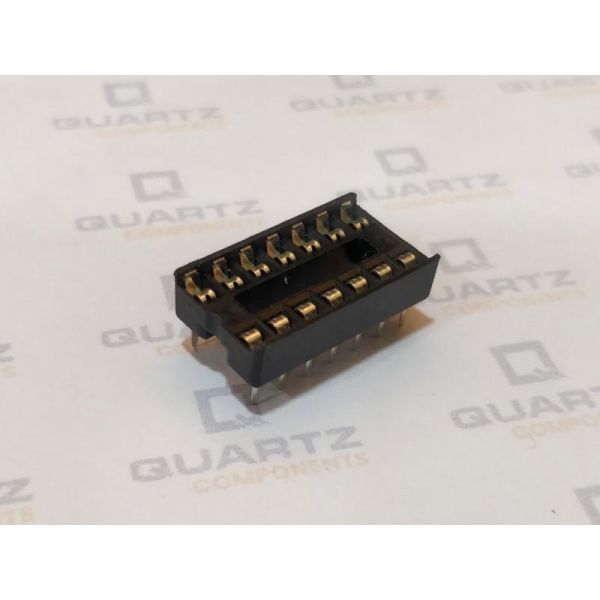

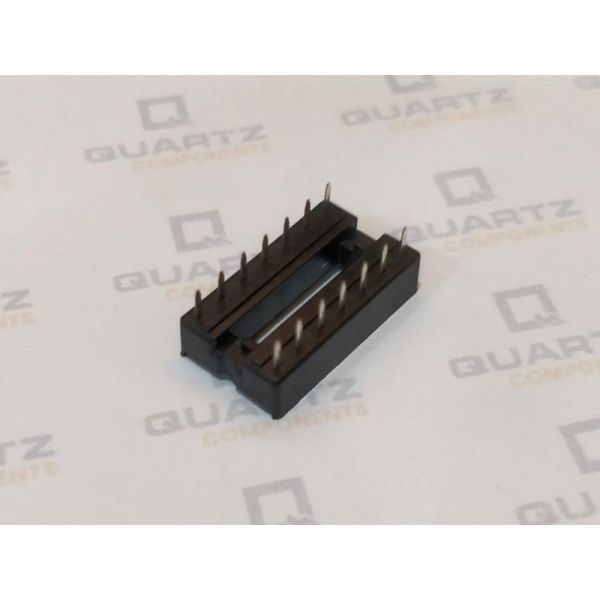

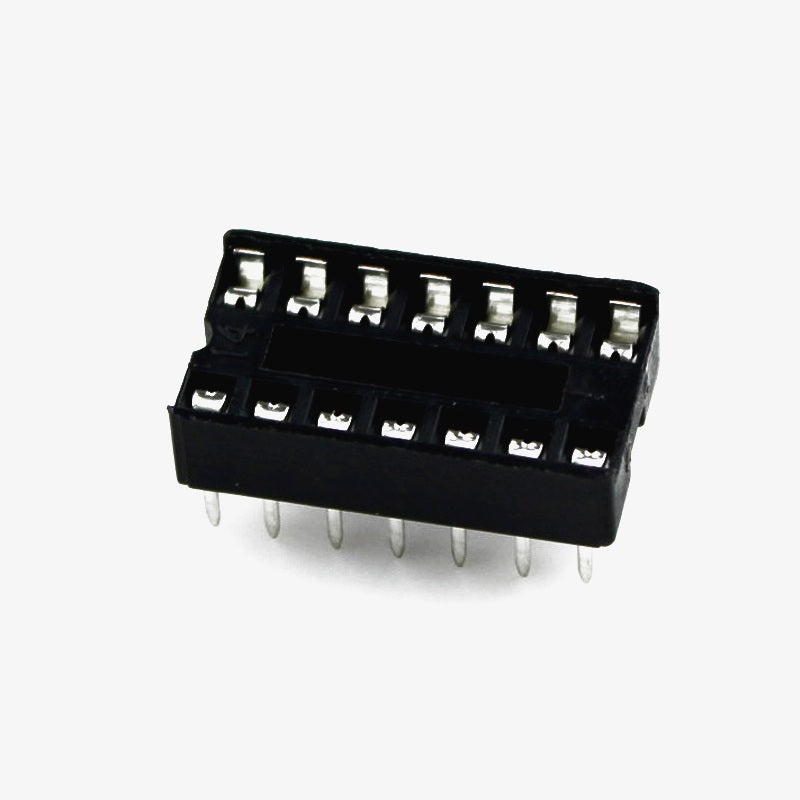

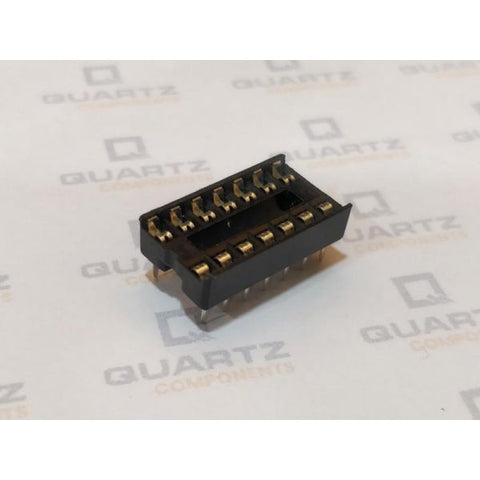

14 Pin DIP IC Base/Socket 14 Pin DIP IC Base/Socket

QC0391

81 In stock

Rs. 4.00
-
+
Rs. 4.00
(inc. GST)
[Delivery: 2 to 5 days]

This is an 14 pin IC socket that is used as a base for 14 pin ICs with DIP package. It has wide enough holes to allow easy insertion of ICs. With this component, designers can mount the IC directly to the PCB or the perf board without having to solder the IC directly to the PCB. Because the IC is not soldered directly to the PCB, it can be easily replaced or reused in other circuits as per requirement. Commonly, the 14 pin IC base is used in prototypes / PCB circuit design testing. They can be joined end to end when working with ICs with more than 8 pins. The contacts of the IC base are tin-plated to reduce oxidation.


Specifications of the 14 pin IC Base

  • Protected open entry for easy insertion of IC
  • Contacts: Brass contacts with tin-surface plating
  • Contacts resistance : 10 mW
  • Current rating :1 A
  • Insulator : Thermoplastic Polyester
  • Colour: Black

Package Includes

1 x 14 Pin DIP IC Base/Socket

This is an 14 pin IC socket that is used as a base for 14 pin ICs with DIP package. It has wide enough holes to allow easy insertion of ICs. With this component, designers can mount the IC directly to the PCB or the perf board without having to solder the IC directly to the PCB. Because the IC is not soldered directly to the PCB, it can be easily replaced or reused in other circuits as per requirement. Commonly, the 14 pin IC base is used in prototypes / PCB circuit design testing. They can be joined end to end when working with ICs with more than 8 pins. The contacts of the IC base are tin-plated to reduce oxidation.


Specifications of the 14 pin IC Base

  • Protected open entry for easy insertion of IC
  • Contacts: Brass contacts with tin-surface plating
  • Contacts resistance : 10 mW
  • Current rating :1 A
  • Insulator : Thermoplastic Polyester
  • Colour: Black

Package Includes

1 x 14 Pin DIP IC Base/Socket
