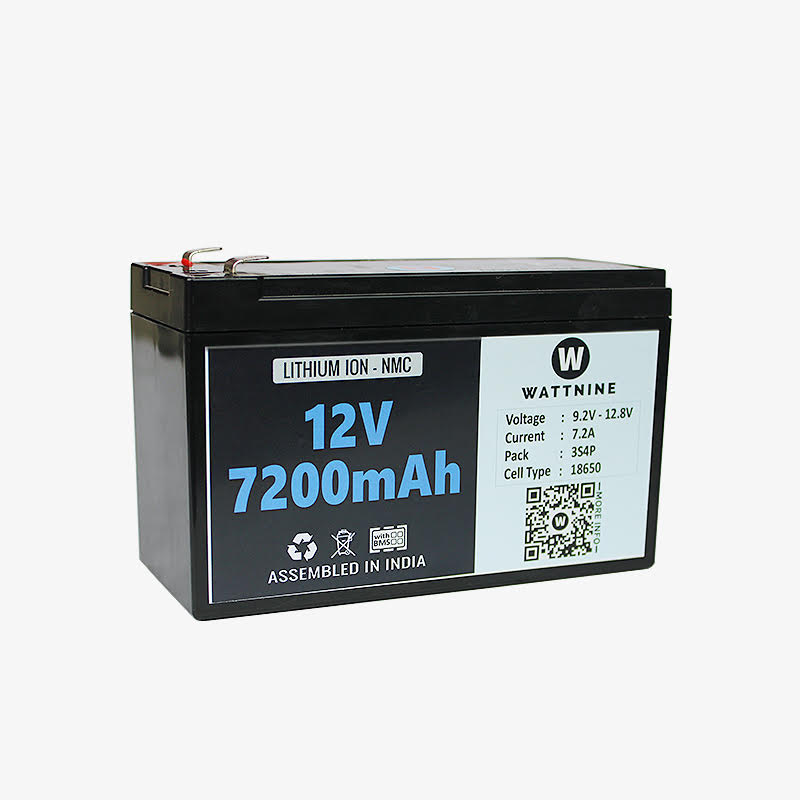

12v 7200mAh Li-ion Battery Pack

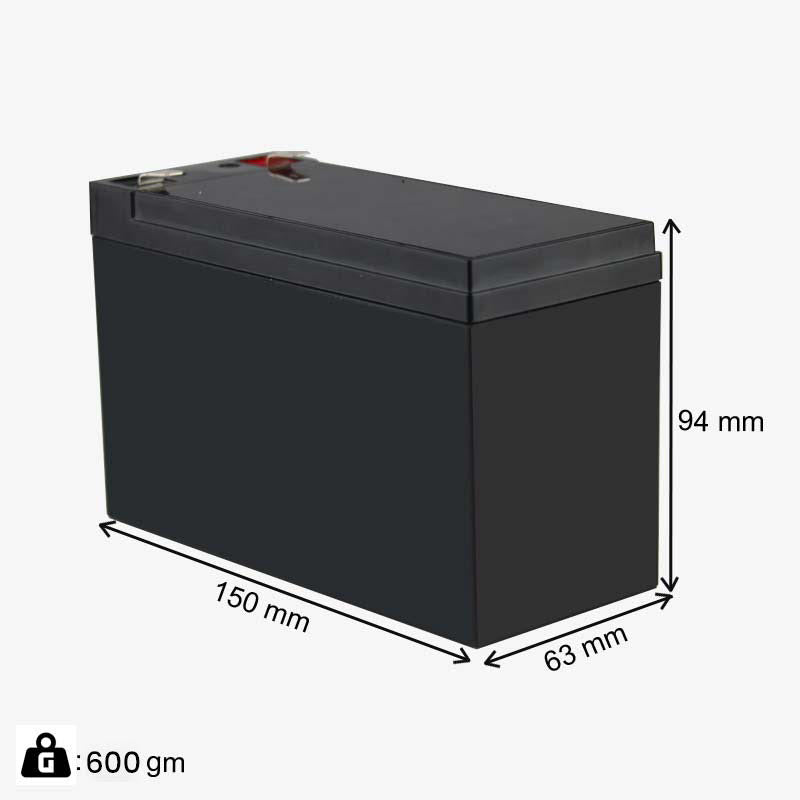

Dimension of 12v 7200mAh Li-ion Battery
Features of Li-ion battery
Features of Wattnine Li-ion Battery
Features of Wattnine Li-ion Battery
Wattnine Batteries
Click to zoom in
  • 3-5 Days Delivery

    Fast Delivery

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

  • Free Shipping

    On orders above INR 599

  • Cash On Delivery

    COD available on all orders

12v 7.2Ah Li-ion Battery Pack with 1 Year Warranty - Plastic Enclosure Enclosure

QC1488
10 In stock
Rs. 1,599.00 (Exc. GST)
Rs. 1,599.00

This Li-ion Rechargeable 12v 7.2Ah Battery Pack  has a nominal voltage of 12.6 volts and is a 3s4p battery pack. This battery pack contains three cells connected in series, giving it a capacity of 7200mAh. The battery pack has a built-in BMS that protects the battery from overcharging,  over-discharging and short circuit.

Specification

  • Charging Voltage- 12.6V
  • Charging Current- 3.6A
  • Nominal Pack Voltage- 11.1V
  • Max. Discharge Current- Tested for 7.2A

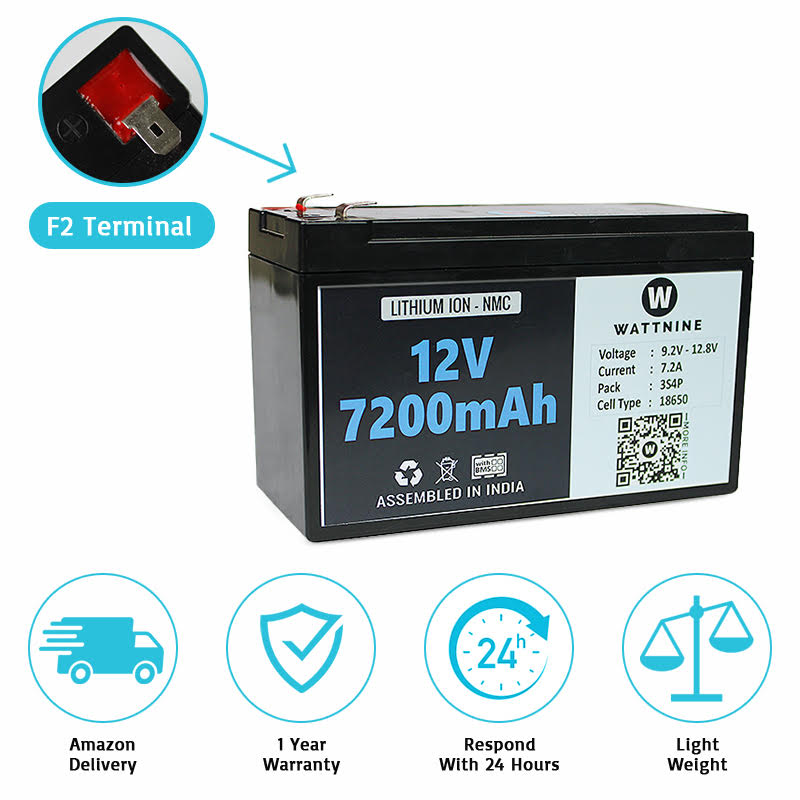

Charging/Discharging Connectors:-

  1. F2 Terminals.

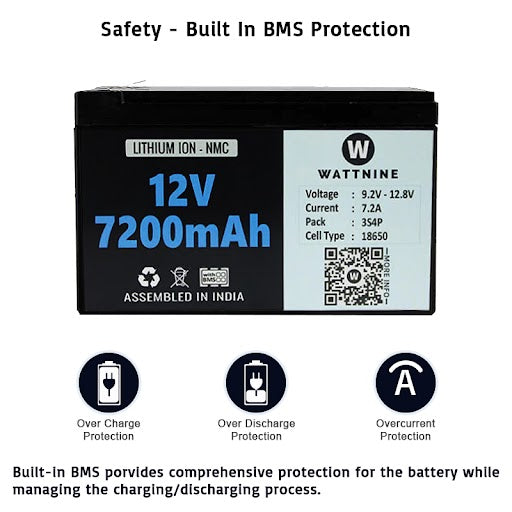

Protection (Included BMS)

  • Short Circuit Protection
  • Overvoltage cut-off- 12.8
  • Undervoltage cut-off- 9.2V



Applications:

  • Small scale UPS Battery
  • Battery for GPS Tracking - Vehicle Tracking - Asset Tracking
  • Wi-Fi Modem or Router Battery for backup
  • 12V Remote CCTV Camera
  • PSP
  • Industrial Machines
  • Emergency Lights
  • Robotics and RC cars
  • Music Players and Audio Systems

Warranty Terms:

This battery pack comes with 1 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.



    How does the protection feature work?

    The BMS of the battery pack with lock the output voltage to zero volts on a short circuit or under voltage conditions. Please charge the battery pack with an adapter or RPS (Shown below) to get the Battery Pack working again.

    The below graph shows how the battery pack handles itself in different loading conditions, namely at 500mA, 1A and 2A. As you can see in these conditions  the capacity of the pack is around 2750mAh to 2620mAh.


    Since the maximum operating voltage of the battery pack is 12.6V it can be used to power your 12V application.





    Warranty Terms:

    This battery pack comes with 1 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
