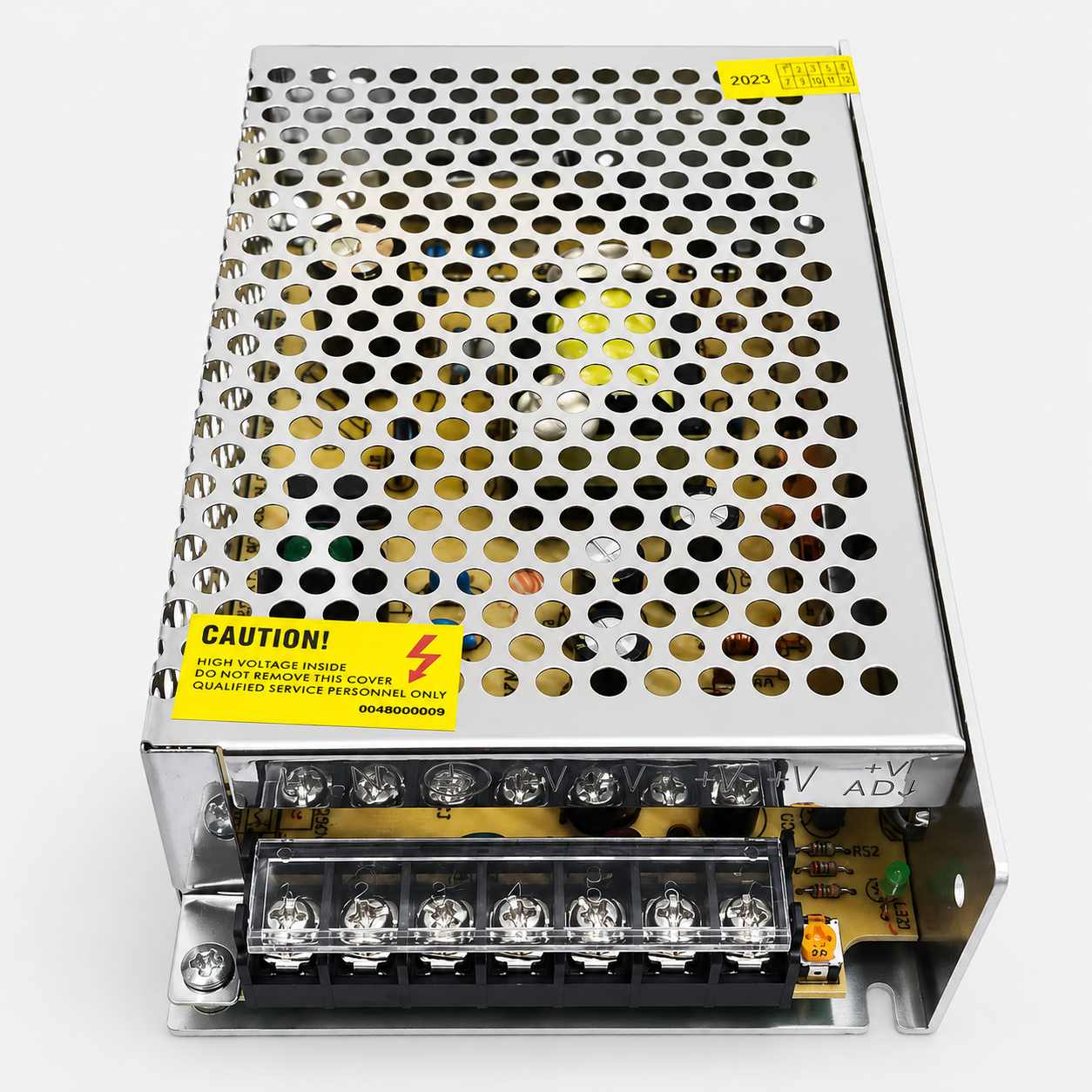

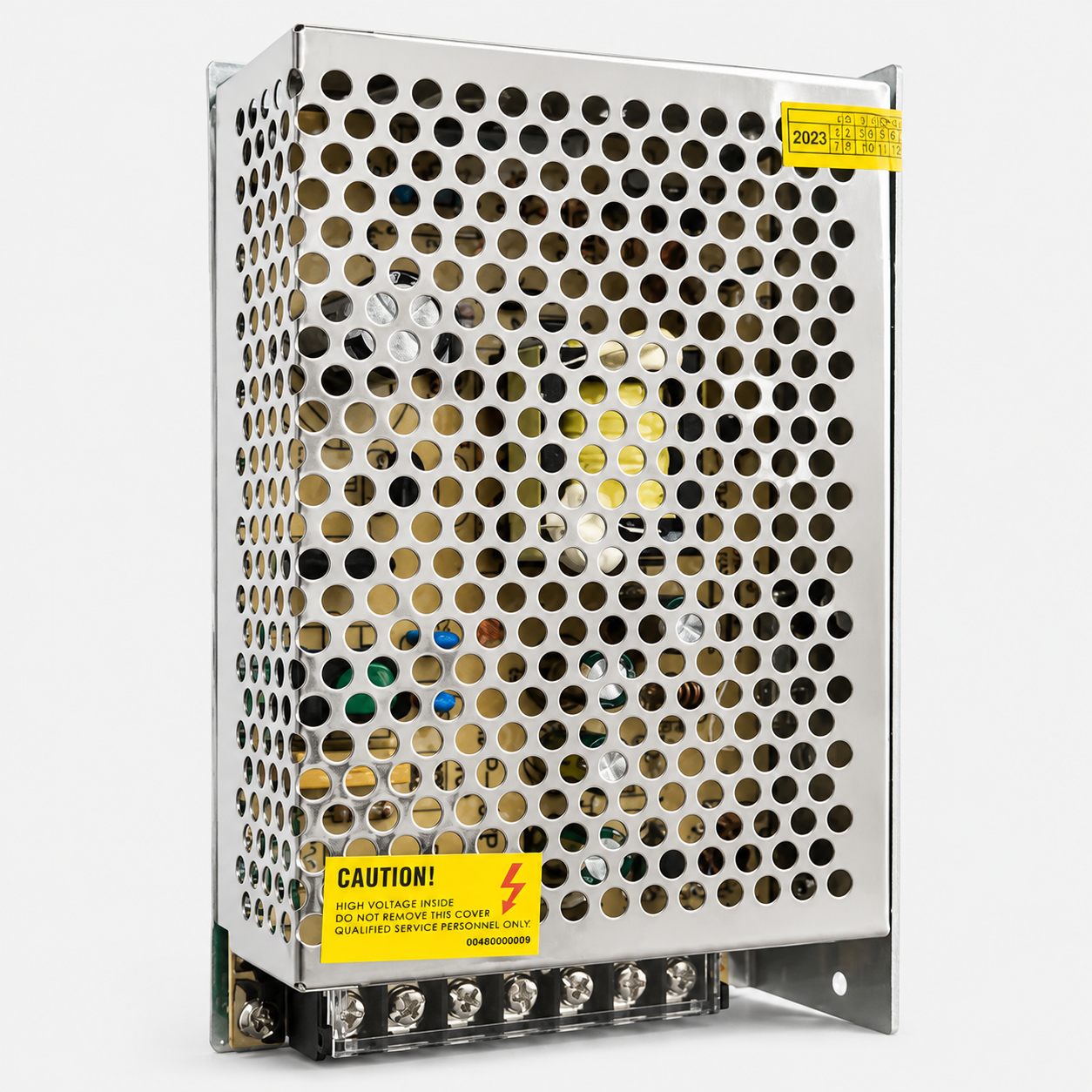

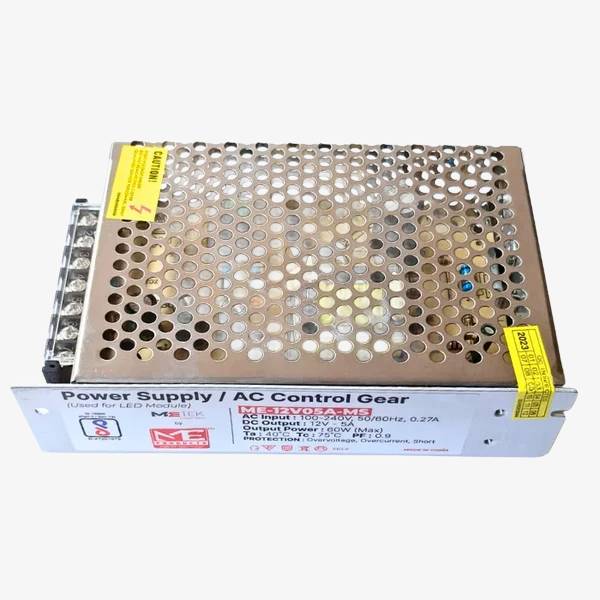

METEK ME-12V05A-MS 12V 5A SMPS DC Switching Power Supply is a compact and reliable AC to DC switching power supply designed to deliver a stable 12V DC output with up to 5A current. Built with high-efficiency switching technology, it offers excellent voltage regulation, low ripple, and multiple protection features for safe and continuous operation. It is ideal for LED lighting, CCTV systems, industrial automation, 3D printers, communication equipment, and various electronic applications requiring a dependable 60W power source.
| Parameter | Value |
|---|---|
| Product Type | AC to DC Switching Power Supply (SMPS) |
| Model | ME-12V05A-MS |
| Brand | METEK |
| Input Voltage | 170–240V AC, 47/63Hz |
| Output Voltage | 12V DC |
| Output Current | 5A |
| Rated Output Power | 60W |
| Voltage Regulation | ±1% (Typical) |
| Ripple & Noise | ≤120mVp-p (Typical) |
| Efficiency | Up to 85% |
| Protection | Over Voltage, Over Current, Short Circuit |
| Cooling Method | Natural Air Convection |
| Mounting Type | Chassis / Panel Mount |
| Enclosure Material | Metal |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Isolation Voltage | 3kV AC (Input to Output) |
| Output Connection | Screw Terminal |
| Input Connection | Screw Terminal |
| Applications | LED Lighting, CCTV Systems, Industrial Automation, 3D Printers, Communication Equipment, DIY Electronics, Control Panels |
| RoHS Compliance | Yes |
