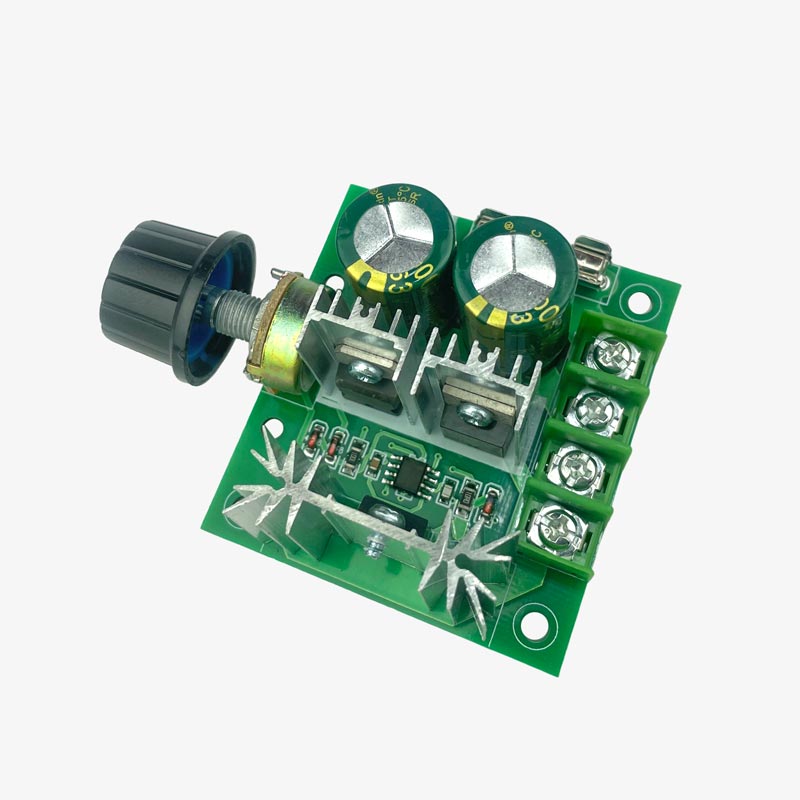

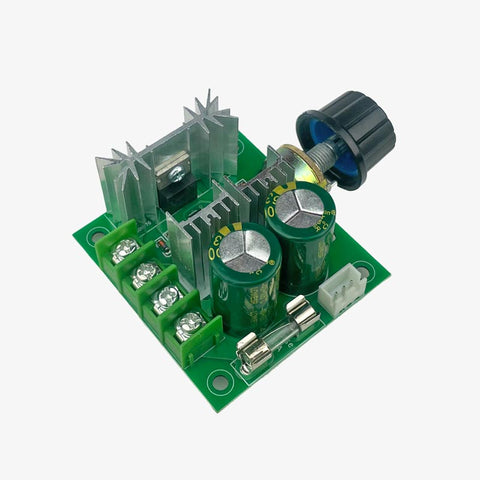

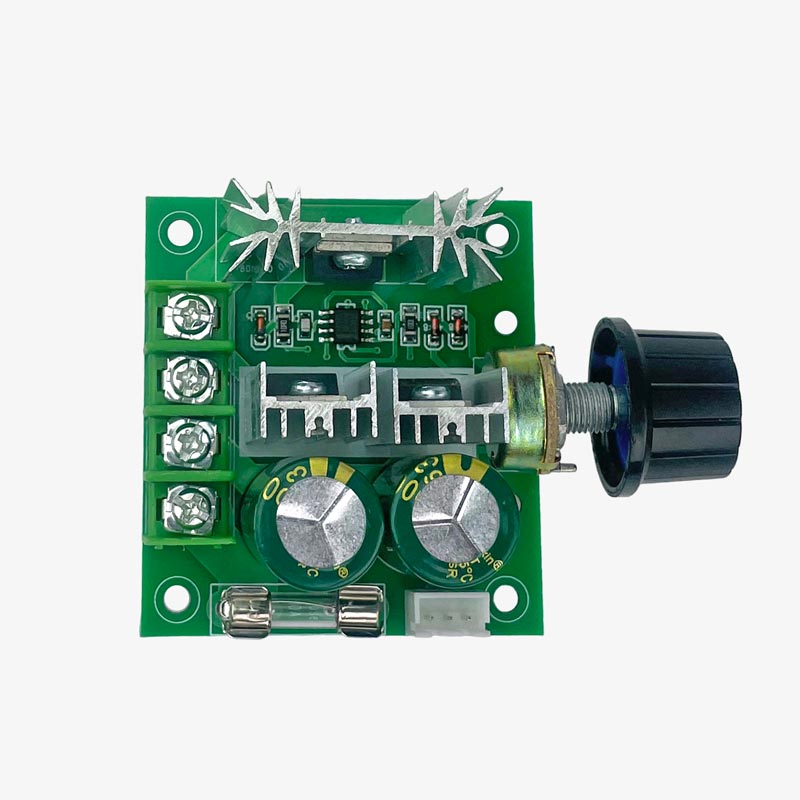

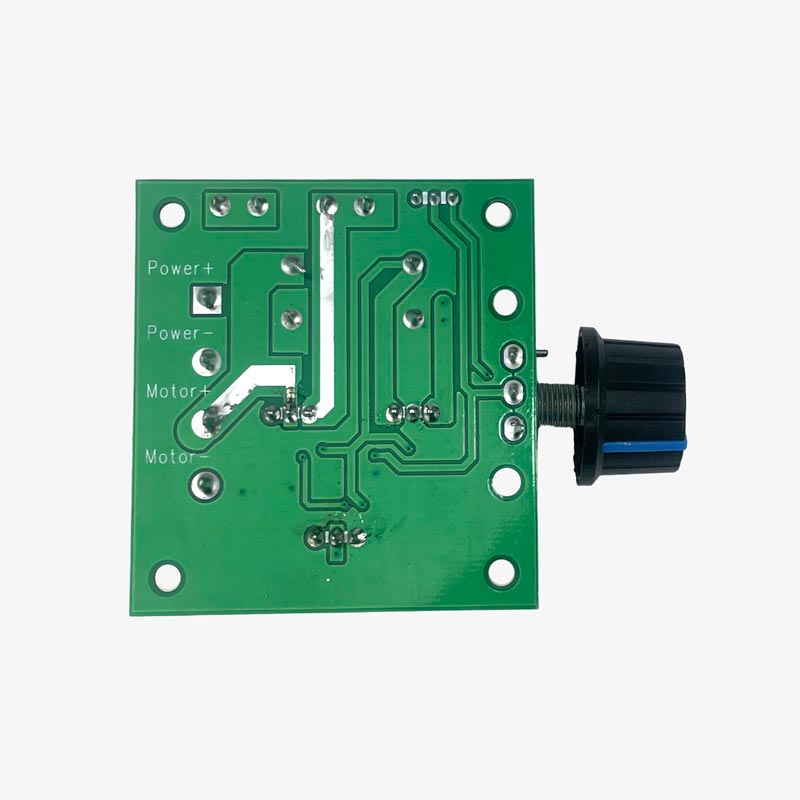

12V-40V 10A PWM DC Motor Speed Driver Controller Module

QC1796
17 In stock
Rs. 139.00 Rs. 129.00 (Exc. GST)
Rs. 129.00

High Power DC Motor Speed Controller lets you control the speed of a DC motor using a Pulse Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. It can be used to drive all DC Brushed Motors that work between 12V-40V DC and consume up to 10A of current. The circuit also includes a 10A fuse, with the reverse connection of power supply and control voltage over-voltage protection function.

Features:

  • Control the speed of a DC motor with this controller.
  • High efficiency, high torque, low heat generating.
  • With high current protection.
  • Control voltage over-voltage protection function
  • The overload and short circuit protecting current is 10A
  • Working Voltage: DC 12V – DC 40V.
  • Control Power:0.01 – 400W.
  • Static Current:0.02 A ( Standby ).
  • PWM Duty Cycle:10% -100%.

Applications:

  • For Speed Control Of all Types of DC Brush Motors
  • For Controlling Automotive Cooling Fan Speed, Auto Fan Speed, Windshield Wipers, Auto Air Conditioning.
  • For Controlling Belt Speed, Pipeline Exhaust Fan Speed, Treadmill Speed, Multi-Speed Parallel Computer Fan, Electronic Fan Speed.

Note: This can NOT be used to the BRUSHLESS motor. The controller is not reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity.

Specifications:

Input supply voltage

DC 12V-40V

The maximum output power

400W

The maximum continuous output current

8A

Static Current

0.02 A ( Standby )

PWM frequency

13kHz

Material

Plastic, metal

Duty Cycle adjustable

10%-100%

The operation environment temperature:

-20-40℃

Dimension(in mm)

60*55*28
