12V 2600 mAh Rechargeable Lithium Battery Pack with Warranty (includes BMS & balance pin) for GPS, CCTV, Industrial and Commercial Application 12V 2600 mAh Rechargeable Lithium Battery Pack with Warranty (includes BMS & balance pin) for GPS, CCTV, Industrial and Commercial Application

QC1239

2 In stock

Rs. 445.00
(Excluding 18% GST)
-
+
[Delivery: 2 to 5 days]

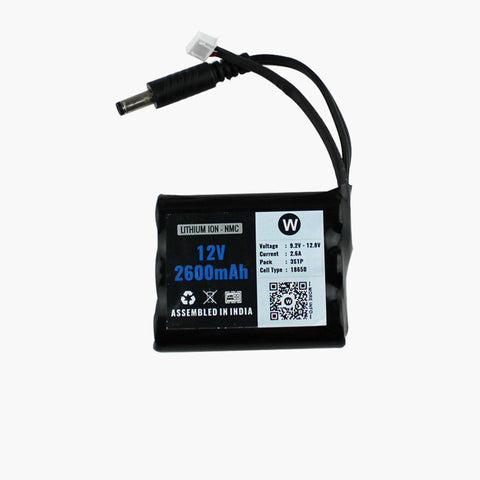

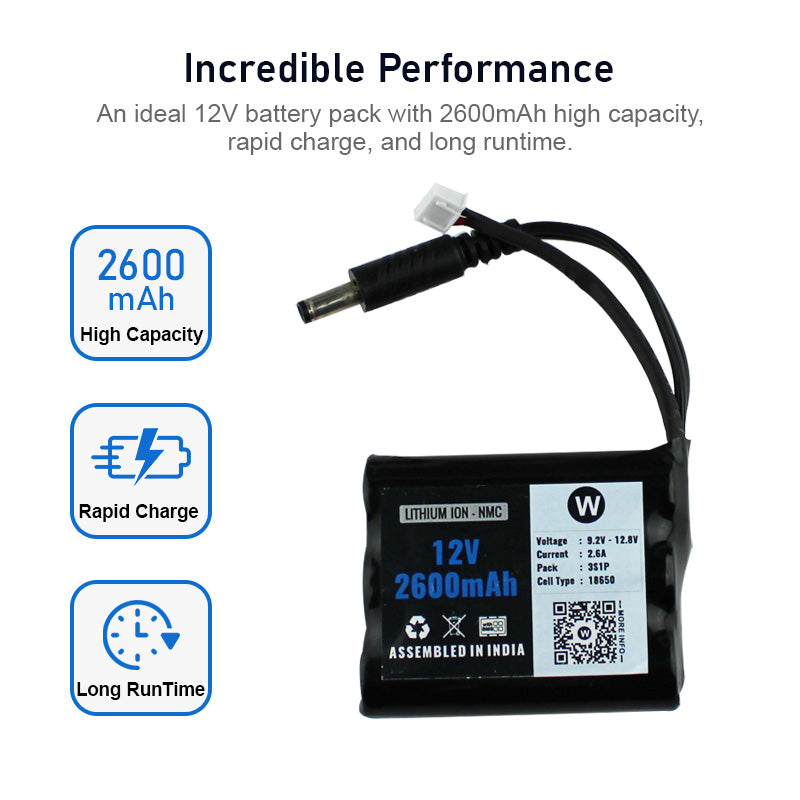

This Li-ion Rechargeable Battery Pack has a nominal voltage of 12.6 volts and is a 3s battery pack. This battery pack contains three cells connected in series, giving it a capacity of 2600mAh. The battery pack has a built-in BMS that protects the battery from overcharging,  over-discharging and short circuit.



Datasheet2600mah 12V Lithium battery pack datasheet

Specification

  • Charging Voltage- 12.6V
  • Charging Current- 2.5A
  • Nominal Pack Voltage- 11.1V
  • Discharge Current- Tested for 1A, 2A, 3A, 4A
  • Charging Method: B3 Balance Caharger or Direct 12.6V

Protection (Included BMS)

  • Short Circuit Protection
  • Overvoltage cut-off- 12.8
  • Undervoltage cut-off- 9.2V

Applications:

  • Small scale UPS
  • 12V Remote CCTV Camera
  • PSP
  • Industrial Machines
  • Portable Vaccum Cleaner battery
  • Emergency Lights
  • Robotics
  • Audio Players



How does the protection feature work?

The BMS of the battery pack with lock the output voltage to zero volts on a short circuit or under voltage conditions. Please charge the battery pack with an adapter or RPS (Shown below) to get the Battery Pack working again.

The below graph shows how the battery pack handles itself in different loading conditions, namely at 500mA, 1A and 2A. As you can see in these conditions  the capacity of the pack is around 2750mAh to 2620mAh.




Since the maximum operating voltage of the battery pack is 12.6V it can be used to power your 12V application.



Cell Balancing and Charging using Balance Connector?

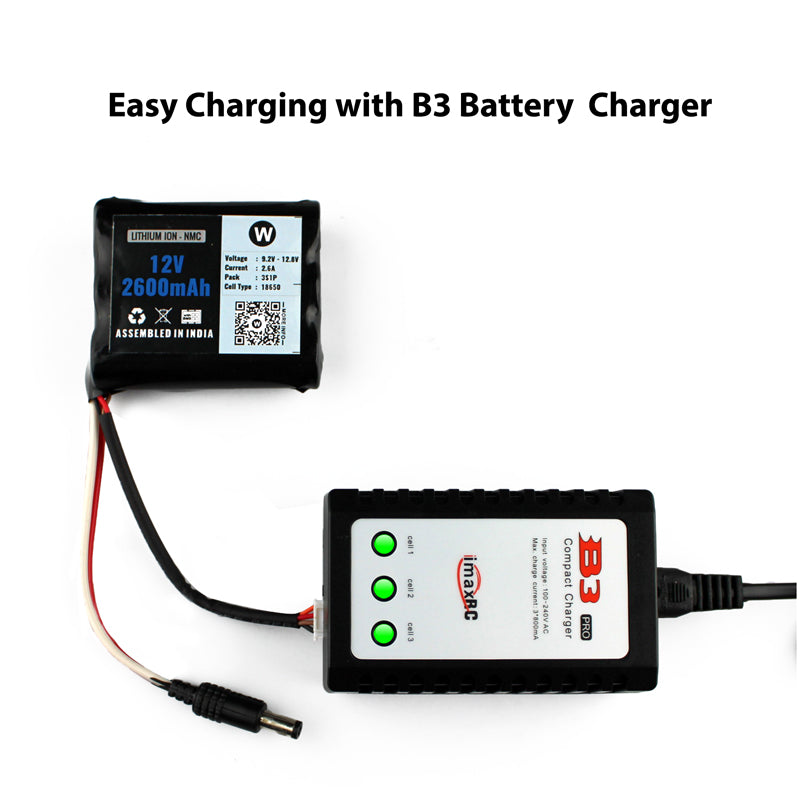

The below image shows the battery pack being charged by a B3 Charger; this method uses the JST XH lead to balance charge the battery pack, ensuring maximum capacity.

Balance charging battery pack



How to charge this battery pack using adapter or RPS?

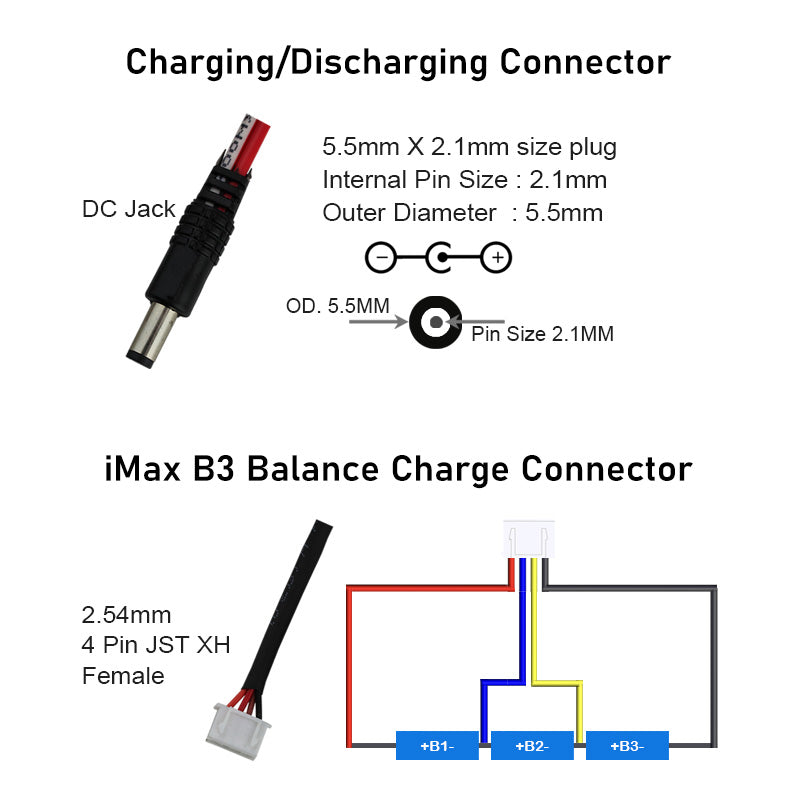

The battery pack can be charged and discharged using the same DC Jack connector. To charge the battery just connect it to a female DC barrel connector and provide 12.6V (4.2V per cell) to the positive pin and ground to the negative pin. Monitor the increase in the voltage with time and stop charging after the pack has reached more than 12.2V. Using RPS to charge the cell will provide better control and understanding.

 charging battery with rps





Note: Lithium batteries can become unstable, if not handled properly, resulting in heat or fire. Safety precautions and prior knowledge is advised.



Warranty Terms:

This battery pack comes with 1 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
