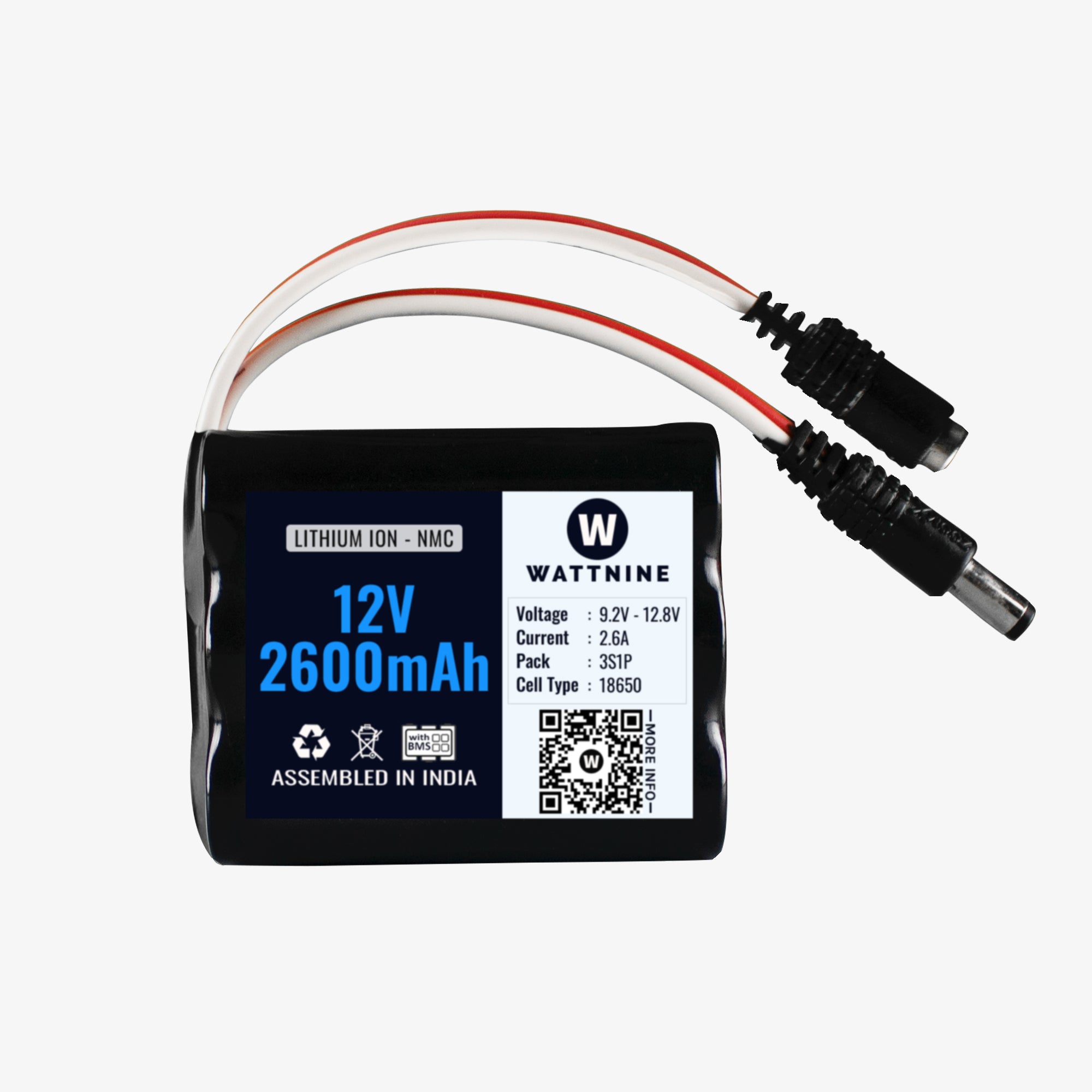

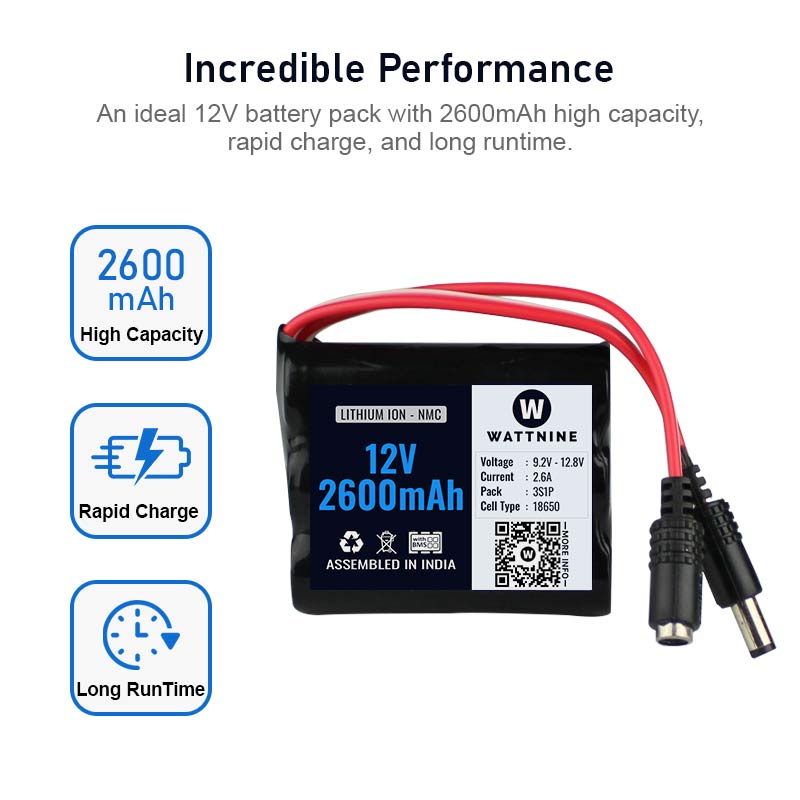

This Li-ion Rechargeable Battery Pack has a nominal voltage of 12.6 volts and is a 3s battery pack. This battery pack contains three cells connected in series, giving it a capacity of 2600mAh. The battery pack has a built-in BMS that protects the battery from overcharging, over-discharging and short circuit.
Recommended Charger - Charging Time
- 12.6v 1.5A Lithium Battery Charger - 1Hr 45Min.
- 12.6v 2A Li-ion Battery Charger - 1Hr 10Min.
Specification
- Charging Voltage- 12.6V
- Charging Current- 1.3A
- Nominal Pack Voltage- 11.1V
- Discharge Current- Tested for 1A, 2A
- Max. Disharge Current - 2.6A

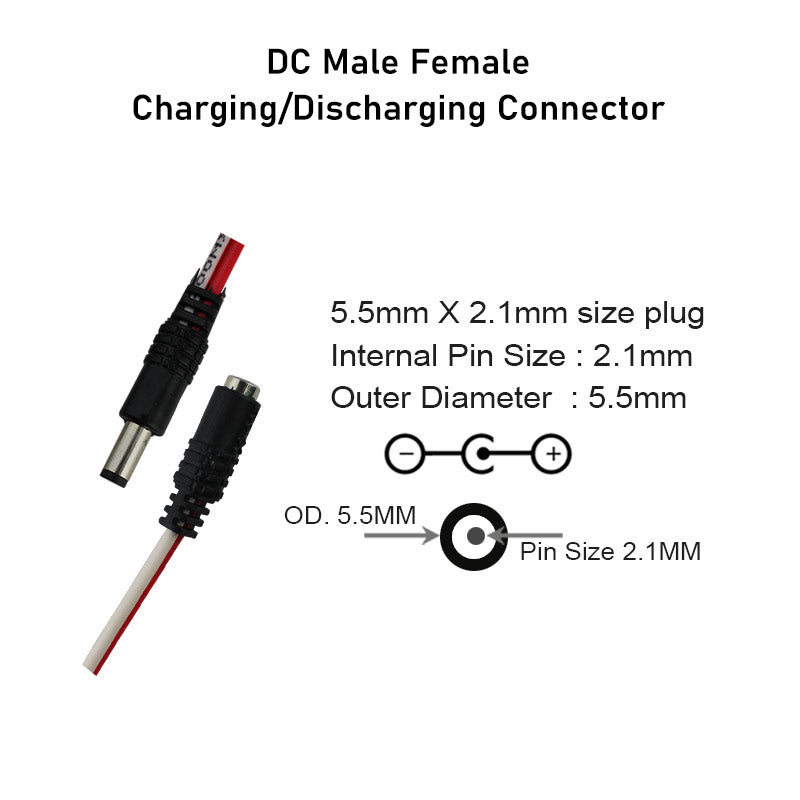

- Charging Method: DC Male Female connectors.
Protection (Included BMS)
- Short Circuit Protection
- Overvoltage cut-off- 12.8
- Undervoltage cut-off- 9.2V
Applications:
- Small scale UPS Battery
- Battery for GPS Tracking - Vehicle Tracking - Asset Tracking
- Wifi Modem or Router Battery for backup
- 12V Remote CCTV Camera
- PSP
- Industrial Machines
- Emergency Lights
- Robotics and RC cars
- Music Players and Audio Systems
Warranty Terms:
This battery pack comes with 1 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
| 12V Lithium Ion Battery Pack with DC Male Female Connector |
12V 2600mAh Lithium BatteryRs. 504.00 (Exc. GST)
|
12V 1200mAh Lithium BatteryRs. 268.00 (Exc. GST)
|
12V 1800mAh Lithium BatteryRs. 368.00 (Exc. GST)
|
| 12V Battery Pack Lithium Ion (NMC) 3S1P |
12V 1200mAh Lithium BatteryRs. 265.00 (Exc. GST)
|
12V 2200mAh Lithium BatteryRs. 432.00 (Exc. GST)
|
12V 1800mAh Lithium BatteryRs. 364.00 (Exc. GST)
|
| 12V Battery Pack Lithium Ion (NMC) 3S2P |
12V 3600mAh BatteryRs. 582.00 (Exc. GST)
|
12V 4400mAh Lithium BatteryRs. 699.00 (Exc. GST)
|
12V 5200mAh Lithium BatteryRs. 899.00 (Exc. GST)
|
| Lithium Ion 12V Battery Chargers |
B3 Lithium Battery ChargerRs. 299.00 (Exc. GST)
|
12.6V 2A Wall Mount Li-ion Rs. 706.00 (Exc. GST)
|
12.6V 5A Table Top Smart 65WRs. 1244.00 (Exc. GST)
|
How does the protection feature work?
The BMS of the battery pack with lock the output voltage to zero volts on a short circuit or under voltage conditions. Please charge the battery pack with an adapter or RPS (Shown below) to get the Battery Pack working again.
The below graph shows how the battery pack handles itself in different loading conditions, namely at 500mA, 1A and 2A. As you can see in these conditions the capacity of the pack is around 2750mAh to 2620mAh.
Since the maximum operating voltage of the battery pack is 12.6V it can be used to power your 12V application.
Cell Balancing and Charging using Balance Connector?
The below image shows the battery pack being charged by a B3 Charger; this method uses the JST XH lead to balance charge the battery pack, ensuring maximum capacity.
How to charge this battery pack using adapter or RPS?
The battery pack can be charged and discharged using the same DC Jack connector. To charge the battery just connect it to a female DC barrel connector and provide 12.6V (4.2V per cell) to the positive pin and ground to the negative pin. Monitor the increase in the voltage with time and stop charging after the pack has reached more than 12.2V. Using RPS to charge the cell will provide better control and understanding.
Note: Lithium batteries can become unstable, if not handled properly, resulting in heat or fire. Safety precautions and prior knowledge is advised.
