12V 2200 mAh Rechargeable Lithium Battery Pack with Warranty  for GPS, CCTV, Industrial and Commercial Application
12V 2200mAh Lithium Battery Pack
12V 2200 mAh Rechargeable Lithium Battery Pack with Warranty  for GPS, CCTV, Industrial and Commercial Application
12V 2200 mAh Rechargeable Lithium Battery Pack with Warranty  for GPS, CCTV, Industrial and Commercial Application
12V 2200 mAh Rechargeable Lithium Battery Pack with Warranty  for GPS, CCTV, Industrial and Commercial Application
Click to zoom in
  • 3-5 Days Delivery

    Fast Delivery

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

  • Free Shipping

    On orders above INR 599

  • Cash On Delivery

    COD available on all orders

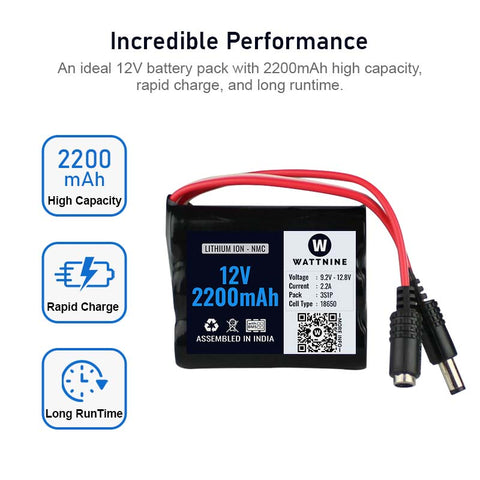

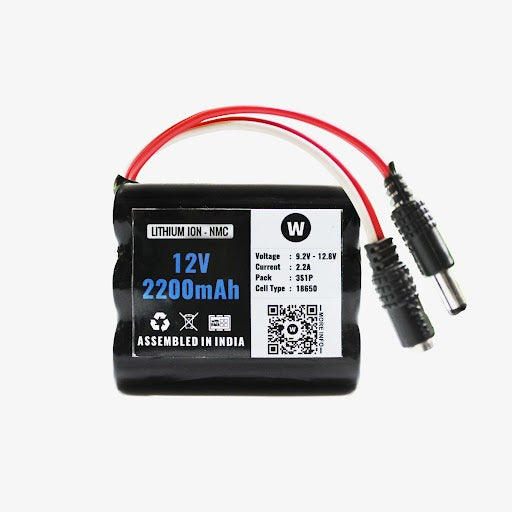

12V 2200 mAh Rechargeable Lithium Battery Pack with Warranty for GPS, CCTV, Industrial and Commercial Application

QC1409
74 In stock
Rs. 644.00 (Exc. GST)
Rs. 644.00

This Li-ion Rechargeable Battery Pack has a nominal voltage of 12.6 volts and is a 3s battery pack. This battery pack contains three cells connected in series, giving it a capacity of 2200mAh. The battery pack has a built-in BMS that protects the battery from overcharging,  over-discharging and short circuit.

Recommended Charger -

  1. 12.6v 1.5A Lithium Battery Charger - Less than 2 Hrs Charging Time.


  Datasheet / Specification

Specification

  • Charging Voltage- 12.6V
  • Charging Current- 1.1A
  • Nominal Pack Voltage- 11.1V
  • Discharge Current- Tested for 1A, 2A, 2.2A

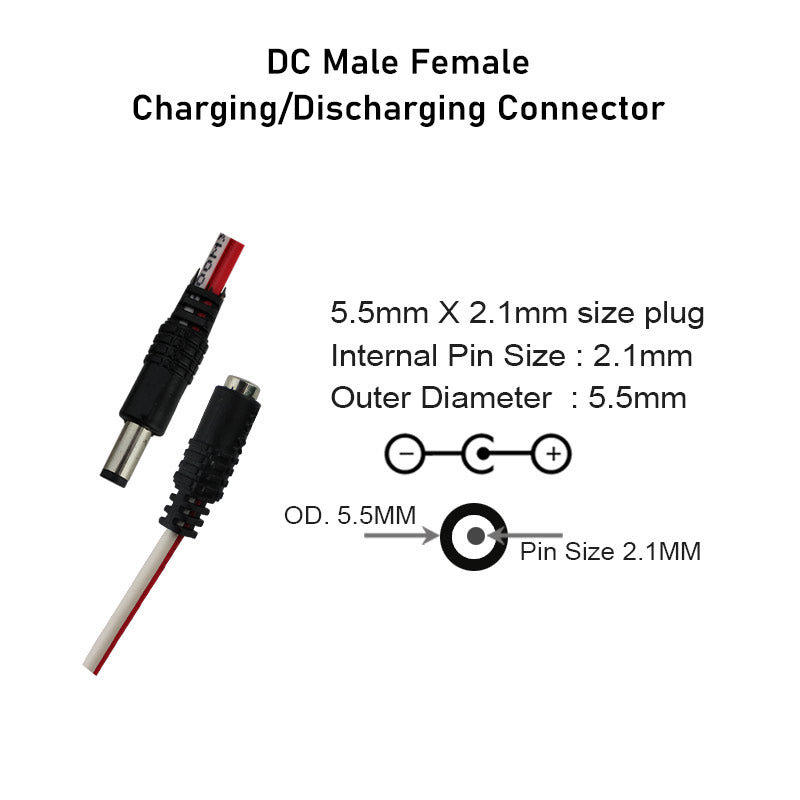

  • Charging Method: DC Male and DC Female Connectors.

Protection (Included BMS)

  • Short Circuit Protection
  • Overvoltage cut-off- 12.8
  • Undervoltage cut-off- 9.2V



Applications:

  • Small scale UPS Battery
  • Battery for GPS Tracking - Vehicle Tracking - Asset Tracking
  • Wifi Modem or Router Battery for backup
  • 12V Remote CCTV Camera
  • PSP
  • Industrial Machines
  • Emergency Lights
  • Robotics and RC cars
  • Music Players and Audio Systems

Warranty Terms:

This battery pack comes with 1 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.



    How does the protection feature work?

    The BMS of the battery pack with lock the output voltage to zero volts on a short circuit or under voltage conditions. Please charge the battery pack with an adapter or RPS (Shown below) to get the Battery Pack working again.

    The below graph shows how the battery pack handles itself in different loading conditions, namely at 500mA, 1A and 2A. As you can see in these conditions  the capacity of the pack is around 2750mAh to 2620mAh.


    Since the maximum operating voltage of the battery pack is 12.6V it can be used to power your 12V application.





    Warranty Terms:

    This battery pack comes with 1 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
