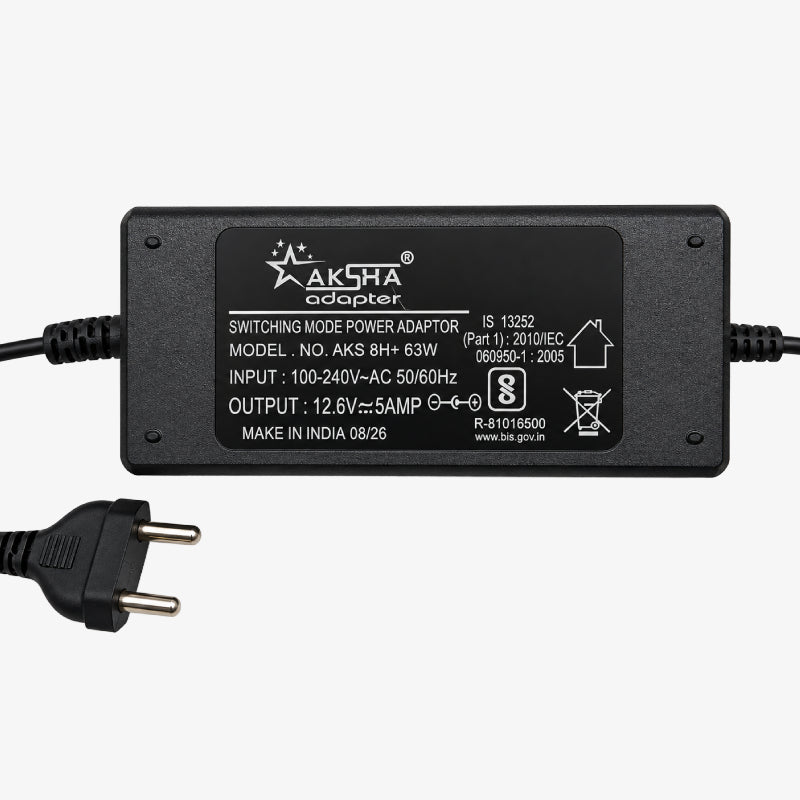

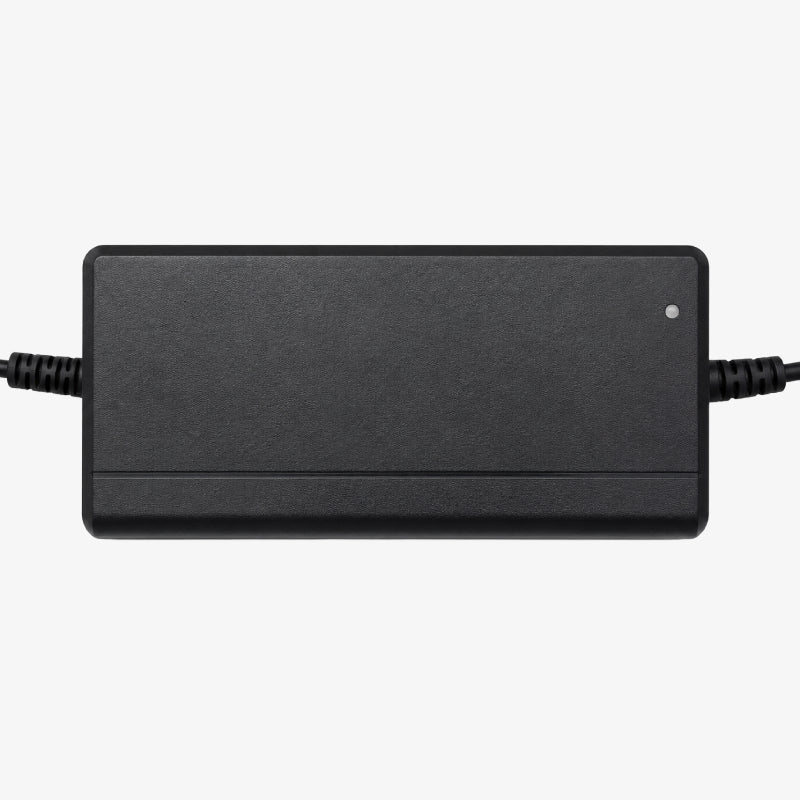

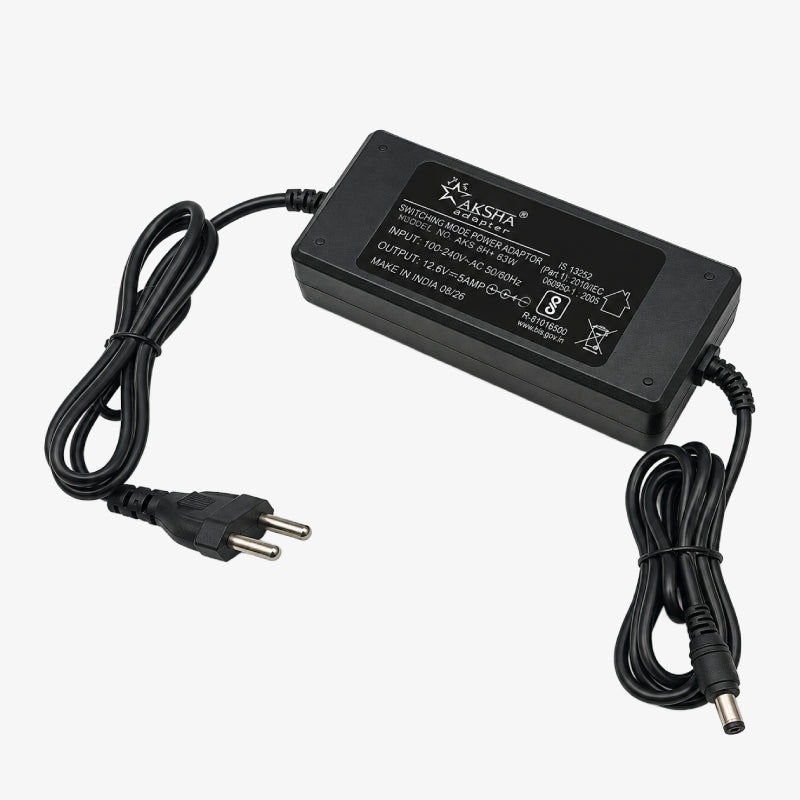

12.6V 5A AC to DC Switching Power Supply Adapter with 5.5mm x 2.5mm DC Plug – Table Top SMPS Charger

Brand: GENERIC
SKU: BPK-QC6175
Availability: Out Of Stock
Rs. 535.00
Subtotal: Rs. 535.00
Description
Description
x

12.6V 5A AC to DC Sitching Power Supply Adapter with 5.5mm DC Plug – Table Top SMPS Charger is a compact table-top AC to DC switching power supply designed to convert 100V to 240V AC mains input into a stable 12V DC output. It provides up to 5A output current with a maximum power rating of 60W and features a 5.5mm DC barrel plug for convenient connection to compatible devices. The adapter uses PWM switching technology for stable operation and high efficiency and includes overvoltage, overload, overcurrent, and short-circuit protection. It is suitable for LED lighting, CCTV systems, routers, TV boxes, electronic projects, development boards, hobby electronics, and other compatible 12V DC equipment.

Features:

  1. AC to DC switching power supply with regulated 12V DC output.
  2. Wide AC input voltage range of 100V to 240V.
  3. Provides up to 5A output current.
  4. 60W maximum output power.
  5. PWM switching design for stable and efficient operation.
  6. Low-ripple output for cleaner DC power.
  7. High efficiency of more than 80% for reduced power loss.
  8. Built-in overvoltage protection.
  9. Built-in overcurrent and overload protection.
  10. Built-in short-circuit protection with automatic recovery.
  11. Anti-jamming design with EMC-tested performance.
  12. Constant-voltage output suitable for LED lighting and electronic equipment.
  13. Compact table-top/Desktop adapter design.
  14. Non-waterproof design intended for indoor/general-purpose applications.
  15. Suitable for LED strips, CCTV cameras, routers, TV boxes, power tools, electronics projects, and other 12V DC devices.

Specifications:

Parameter Value
Product Type AC to DC Switching Power Supply Adapter
Power Supply Type Table-Top / Desktop SMPS
Input Voltage 100V to 240V AC
Input Frequency 50/60 Hz
Output Voltage 12V DC
Maximum Output Current 5A
Maximum Output Power 60W
Output Type Regulated Constant Voltage DC
DC Plug Type 5.5mm DC Barrel Plug
DC Plug Size 5.5mm Outer Diameter × 2.5mm Inner Diameter*
DC Output Polarity Center Positive*
Switching Technology PWM
Efficiency >80%*
Ripple / Noise <20mV*
Linear Regulation ≤0.5%*
Temperature Coefficient 0.02%*
Start-Up Time Approx. 1 Second*
Protection Overvoltage, Overcurrent, Overload & Short Circuit
Short-Circuit Protection Automatic Recovery*
Operating Temperature 0°C to 40°C*
Storage Temperature -20°C to +85°C*
AC Power Cord Length Approx. 1.2m*
DC Cable Length Approx. 1.1m*
Overall Cable Length Approx. 2.3m*
Adapter Dimensions Approx. 110 × 50 × 30mm*
Adapter Weight Approx. 190g*
Cooling Passive / Fanless
Waterproof No
Application LED, CCTV, Router, TV Box, Electronics & DIY Projects


Also Check These Out :-

USB to micro-USB Cable for NodeMCU and Raspberry Pi

USB Female Panel Mount to Male USB Cable 1 Meter

Official 27W USB-C PD Power Supply for Raspberry Pi 5 - Black

5V 2A Adapter (Without Cable) - 10W Adapter for Raspberry Pi 3

Package Includes:

1 × 12.6V 5A 60W AC to DC Switching Power Supply Adapter with 5.5mm DC Plug
