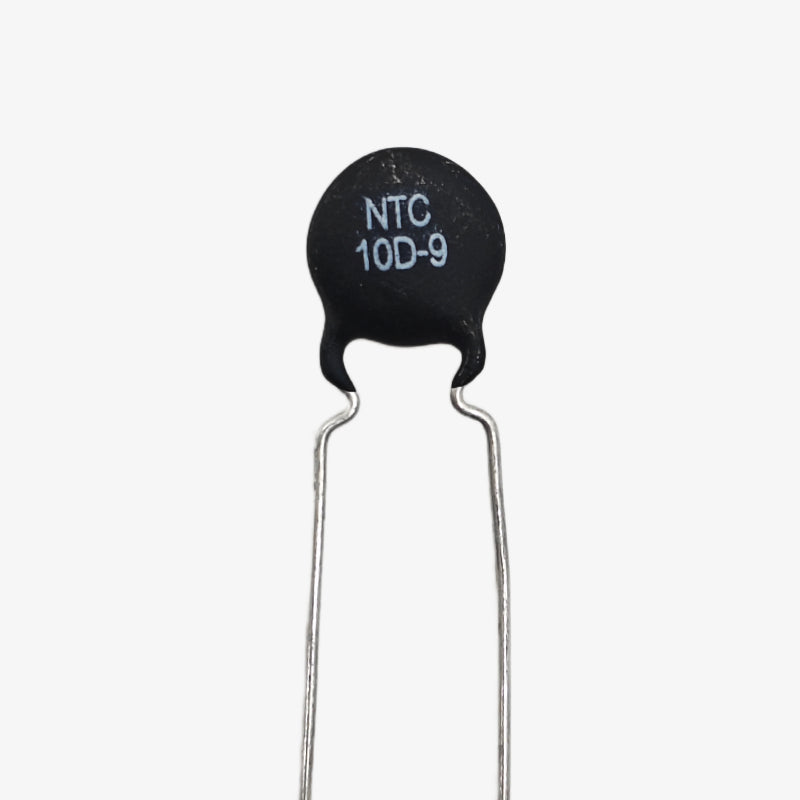

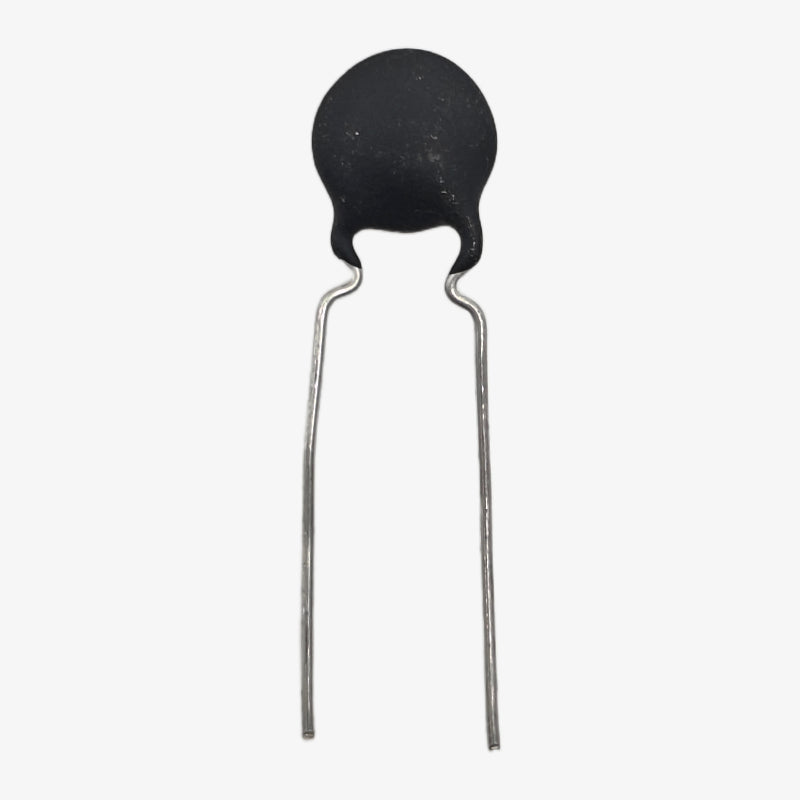

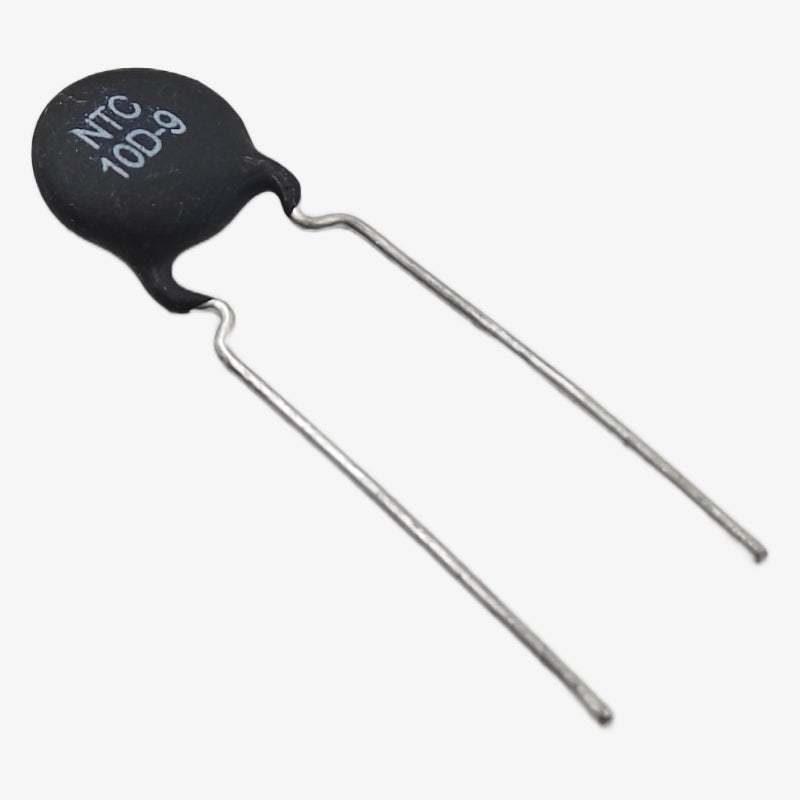

10D-9 NTC Thermistor
SKU:
CMP-QC3421
Availability:
1723
In Stock
- Rs. 5.00
- Rs. 5.00
- Unit price
- per
Subtotal:
Rs. 5.00
Description
xThe 10D-9 NTC Thermistor is a negative temperature coefficient (NTC) resistor designed for inrush current suppression in electronic circuits. When power is first applied, the thermistor limits the inrush current by offering higher resistance. As the thermistor warms up, its resistance drops significantly, allowing normal current flow with minimal power loss.
This makes it highly suitable for use in switching power supplies, battery chargers, LED drivers, motor controllers, and other electronic devices where inrush current protection is required.
Features:
- Inrush Current Suppression: Protects circuits from sudden current spikes.
- Self-Resetting: Resistance decreases automatically as temperature rises.
- High Reliability: Ensures stable and safe operation of power circuits.
- Compact Size: 9mm disc diameter for easy integration.
- Wide Applications: Ideal for power supplies, SMPS, LED drivers, and chargers.
Specifications:
| Model | 10D-9 |
| Tolerance | 1% |
| Resistance (25°C) | 10 Ω |
| Diameter of Element | 9 mm (Φ11mm max) |
| Maximum Steady Current | 2A |
| Maximum Voltage | 250V AC |
| Operating Temperature | –40°C to +125°C |
| Application | Inrush current limiter |
Package Includes:
1 × 10D-9 NTC Thermistor
