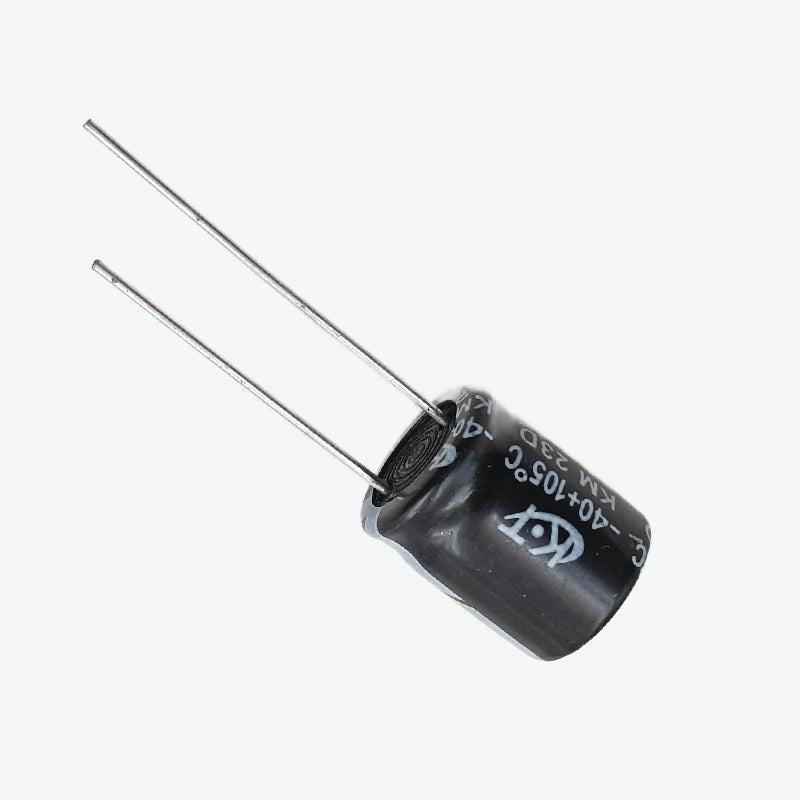

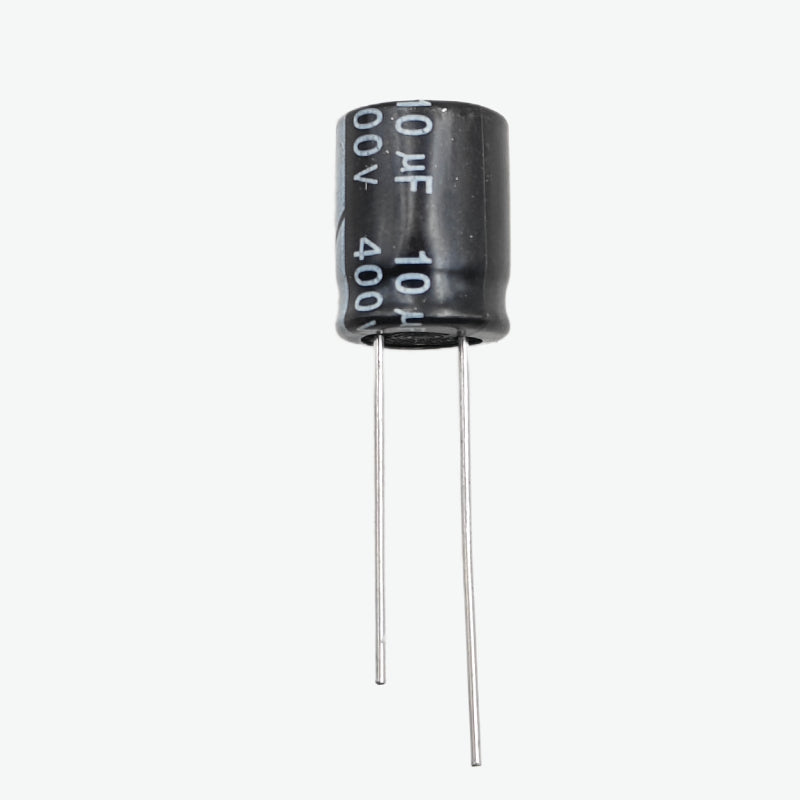

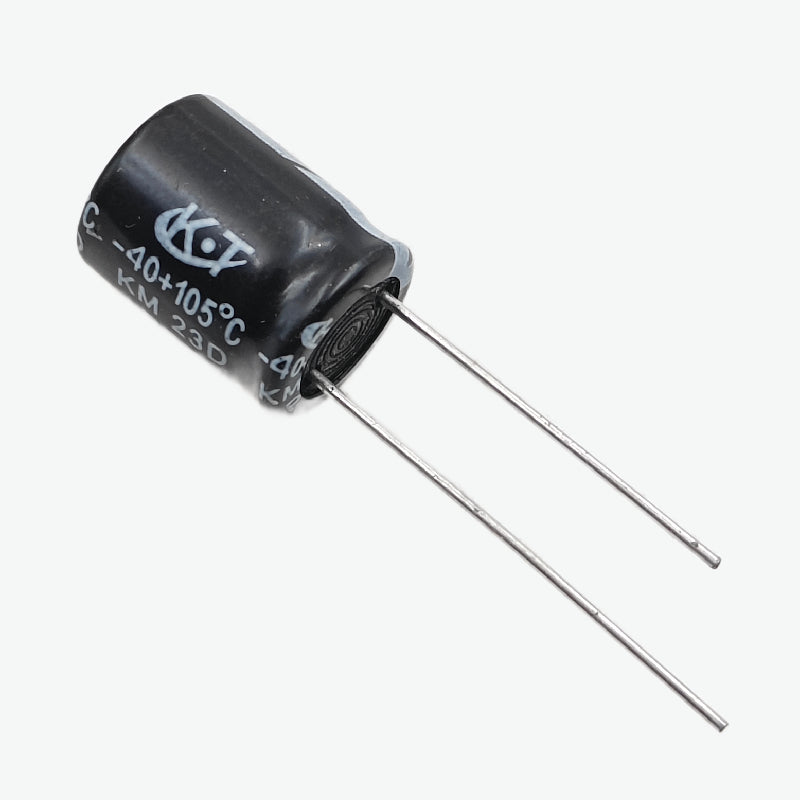

10uF 400V Radial Electrolytic Capacitor - Through Hole Package

10 µF 400V Radial Electrolytic Capacitor – Through Hole Package (10×20 mm) is a polarized aluminum electrolytic capacitor designed for energy storage, smoothing, and filtering in electronic circuits, providing a capacitance of 10 microfarads with a 400V DC voltage rating, a radial lead configuration for secure through-hole PCB mounting, a compact 10×20 mm aluminum can size, and reliable electrical performance suitable for high-voltage power supply, coupling, and decoupling applications in consumer and industrial electronics.

Features:

1. 10 µF capacitance for filtering and smoothing applications
2. 400V rated voltage for stable high-voltage operation
3. Radial lead design for through-hole PCB mounting
4. Compact 10×20 mm aluminum can construction
5. Polarized design for consistent electrical performance
6. Low leakage current characteristics
7. Suitable for general-purpose electronic circuits

Specifications:

• Product Type: Electrolytic Capacitor
• Capacitance: 10 µF
• Rated Voltage: 400V DC
• Tolerance: ±10%

• Mounting Type: Through Hole

• Case Size: 10 × 20 mm
• Polarity: Polarized
• Operating Temperature: -30oC to +125oC

• Applications: Power supply filtering, DC smoothing, signal coupling, decoupling, high-voltage circuits, consumer electronics, industrial control boards

Package Includes:

1 × 10 µF 400V Radial Electrolytic Capacitor – Through Hole Package
