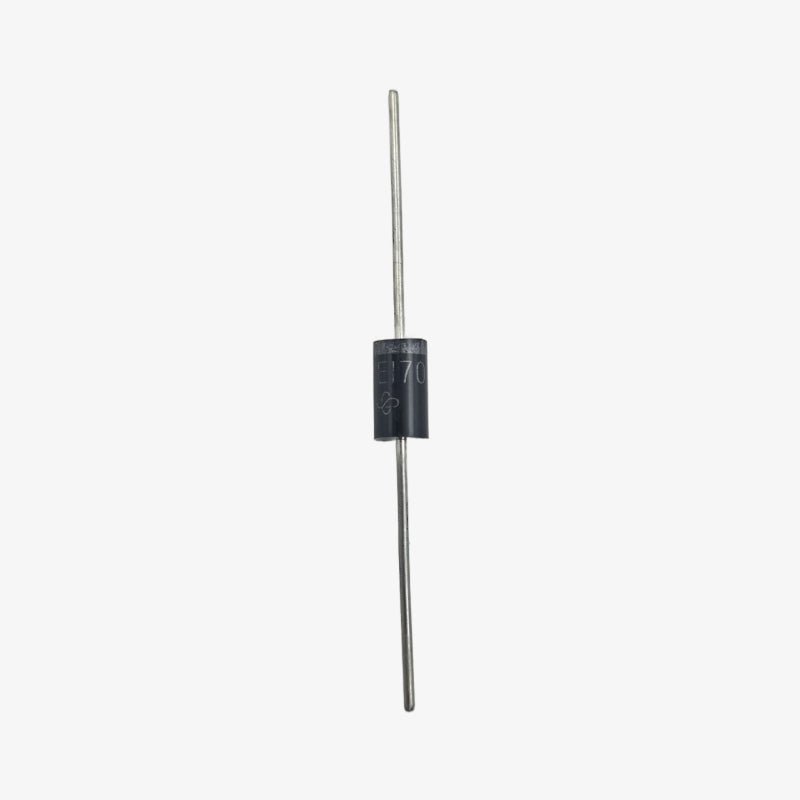

1.5KE170A Transient Voltage Suppressor Diode DO-201AE
SKU:
CMP-QC3741
Availability:
1245
In Stock
- Rs. 12.00
- Rs. 12.00
- Unit price
- per
Subtotal:
Rs. 12.00
Description
xThe 1.5KE170A Transient Voltage Suppressor Diode DO-201AE is designed to protect sensitive electronics from high-energy voltage transients caused by lightning, inductive load switching, and other surge events. Its robust DO-201AE package and fast clamping response ensure reliable protection for industrial and power-sensitive circuits. Ideal for safeguarding power lines, data lines, and general-purpose surge protection applications.
Features:
- 1500 W peak pulse capability with 10/1000 μs waveform
- Glass passivated chip junction in DO-201AE package
- Fast response time typically under 1 ps
- Excellent clamping capability with low incremental resistance
- Halogen-free, RoHS compliant, matte-tin plated leads
Specifications:
- Reverse Stand-off Voltage (VR): 145 V
- Breakdown Voltage (VBR): 162 V to 179 V
- Test Current IT (mA): 1 mA
- Maximum Clamping Voltage (VC): 234 V
- Maximum Peak Pulse Current (Ipp): 6.4 A
- Peak Pulse Power Dissipation (PPPM): 1500 W
- Operating Junction Temperature (TJ): -65°C to +175°C
- Storage Temperature (TSTG): -65°C to +175°C
- Maximum Reverse Leakage (IR): 5 µA
Package Includes:
1 × 1.5KE170A Transient Voltage Suppressor Diode DO-201AE
